AFRC D1708MG Micro Digital Servo 4.3g For RC Mini Cars and AirPlanes 0.075sec Fast Coreless Motor Parts and Accessories DIY
Features:
◆ Miniature and exquisite appearance design, super light weight
◆ Adopting digital controller and coreless motor drive.
◆ Micro steering gear with large torque (0.85kg.cm); speed sensitive (0.075sec).
Description:
Model: D1708MG

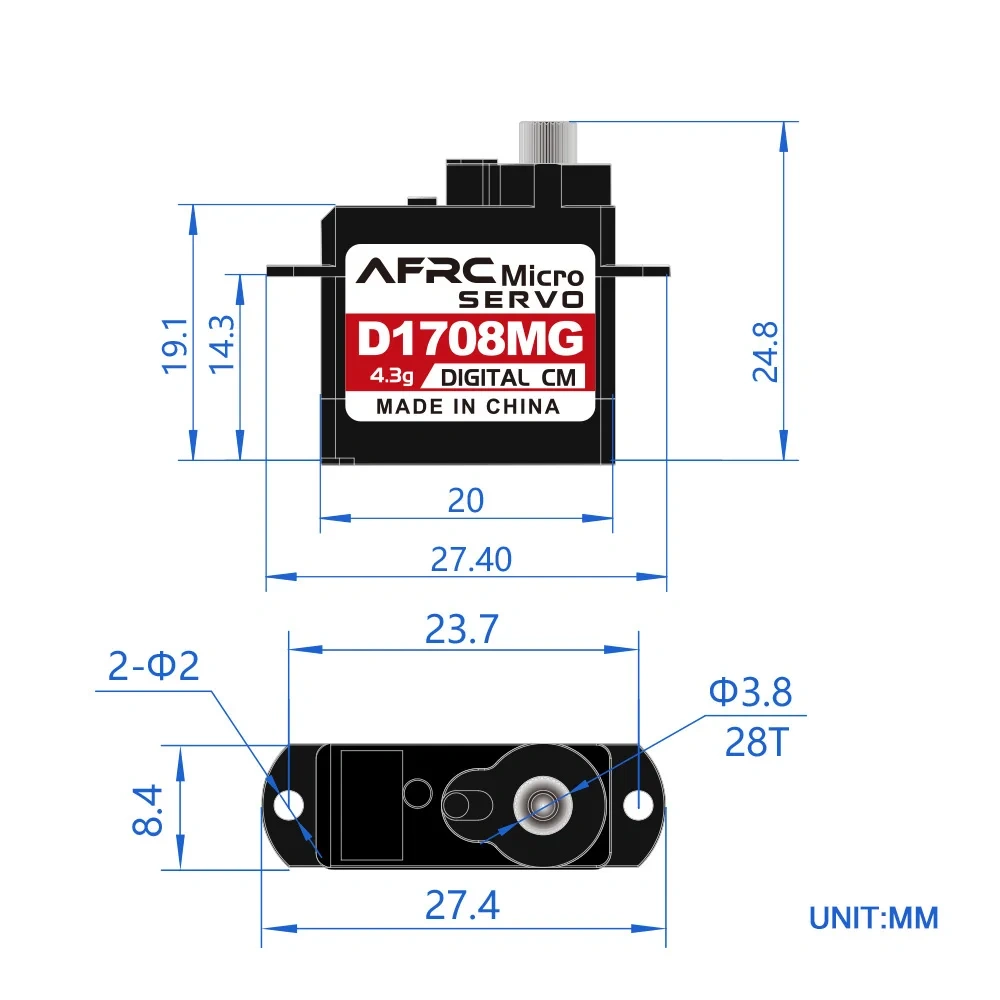

Dimensions: 27.4 x 8.4 x 19.1mm
Weight: 4.3g (No including wire)
Working voltage: 3.7 ~ 6.0V
Torque:
3.7V: 0.60 kg-cm
4.2V: 0.70 kg-cm
5.0V: 0.80 kg-cm
6.0V: 0.85 kg-cm
Speed:
3.7V: 0.100 sec / 60 °
4.2V: 0.090 sec / 60 °
5.0V: 0.080 sec / 60 °
6.0V: 0.075 sec / 60 °
Motor type: Coreless motor
Gear type: Metal gears

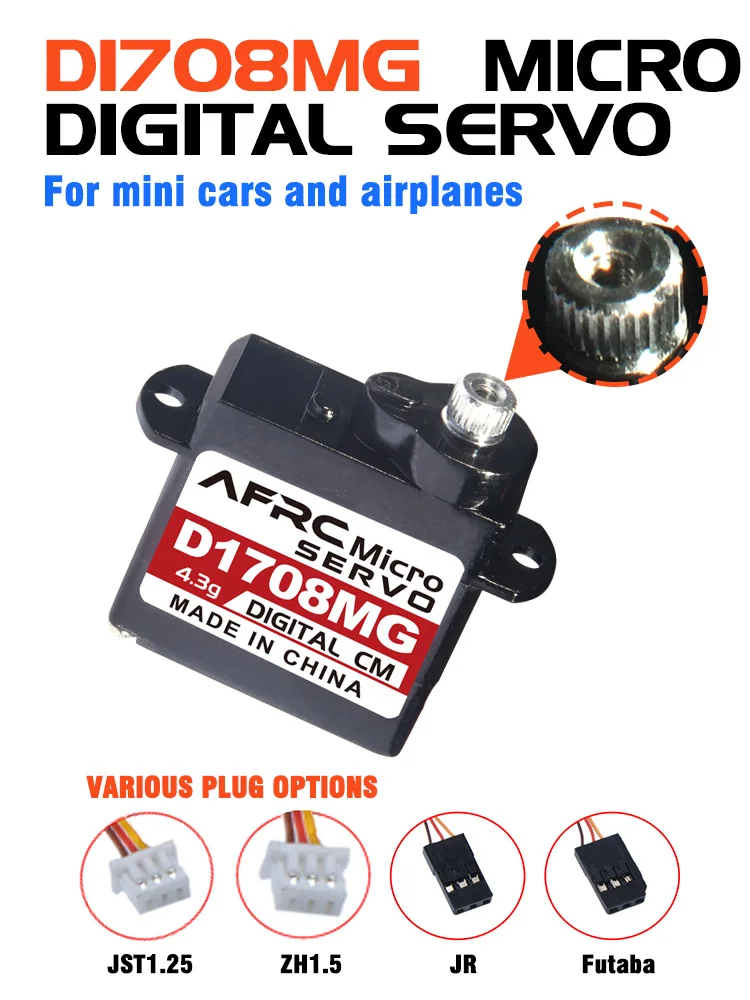

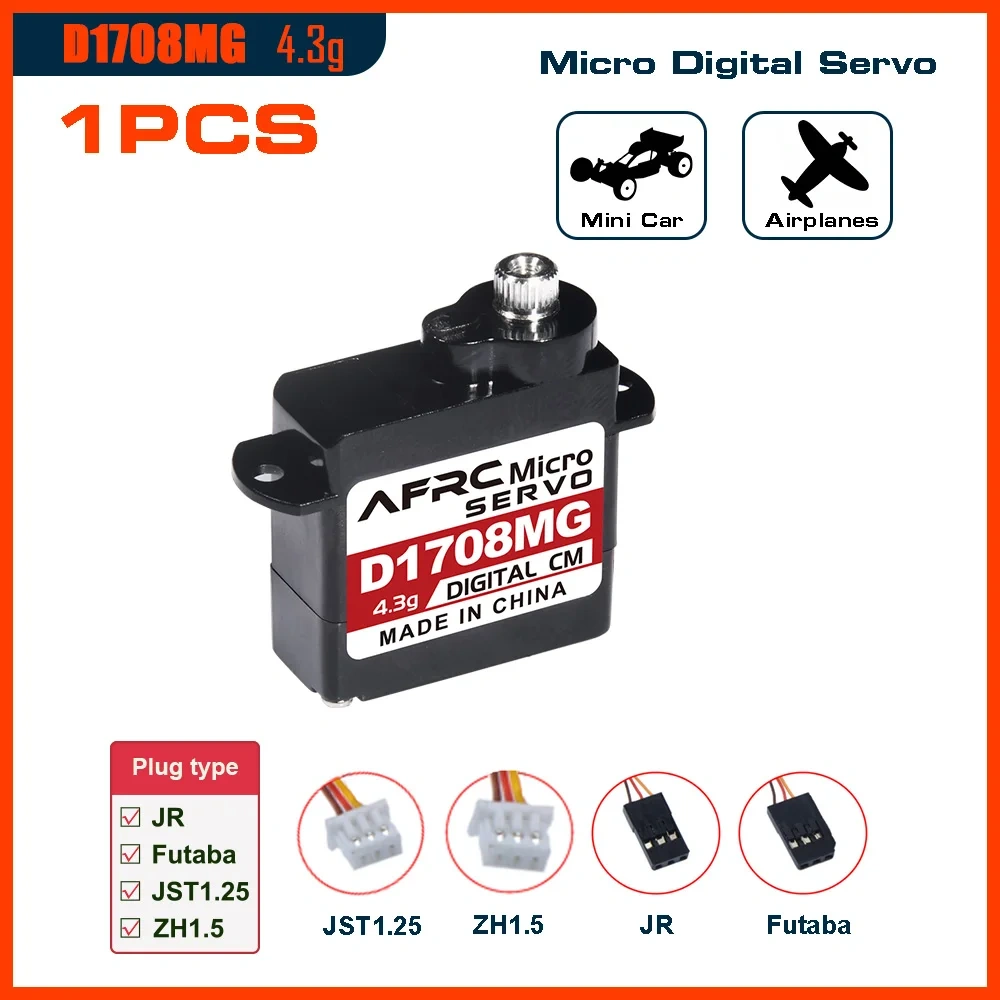

Wire gauge: JR;Futaba;JST1.25 or ZH1.5 L = 150mm (brown-, red +, orange S) Please pay attention to distinguish before powering on!
Application: helicopter, fixed wing, industrial intelligence, etc.
