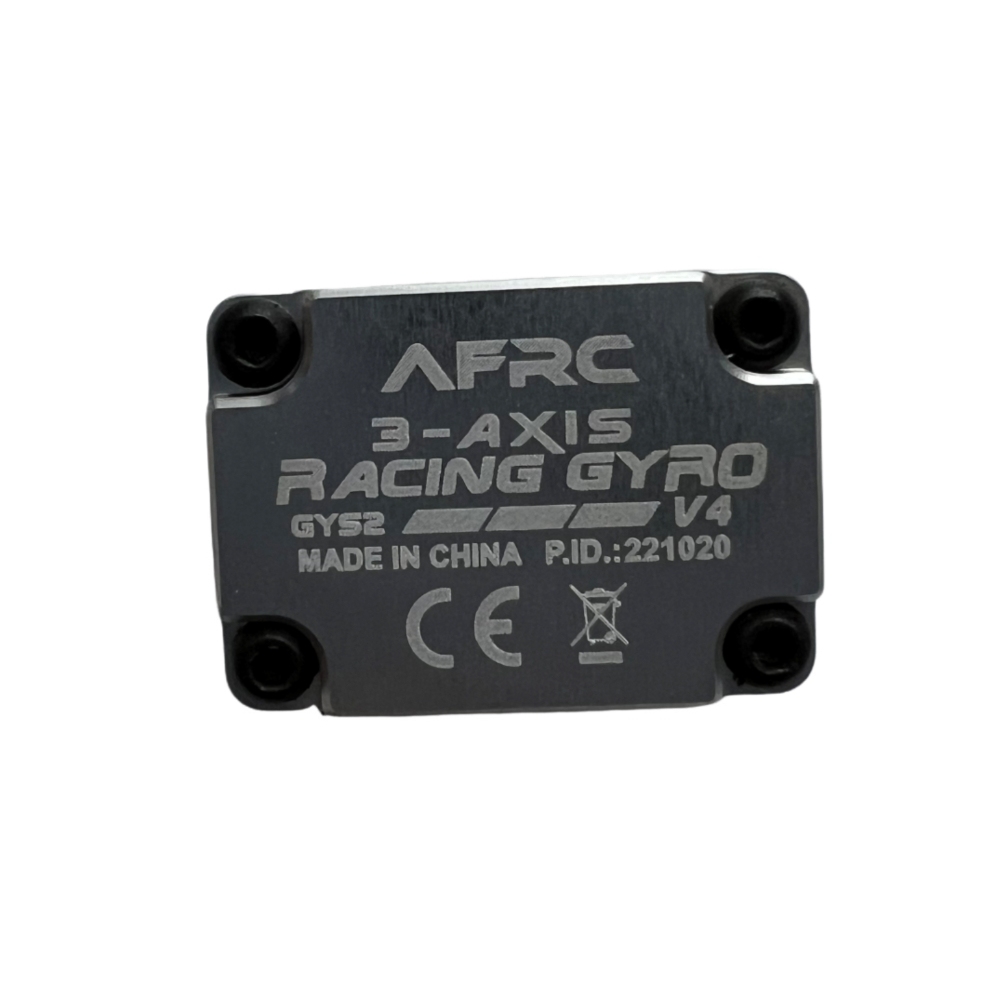

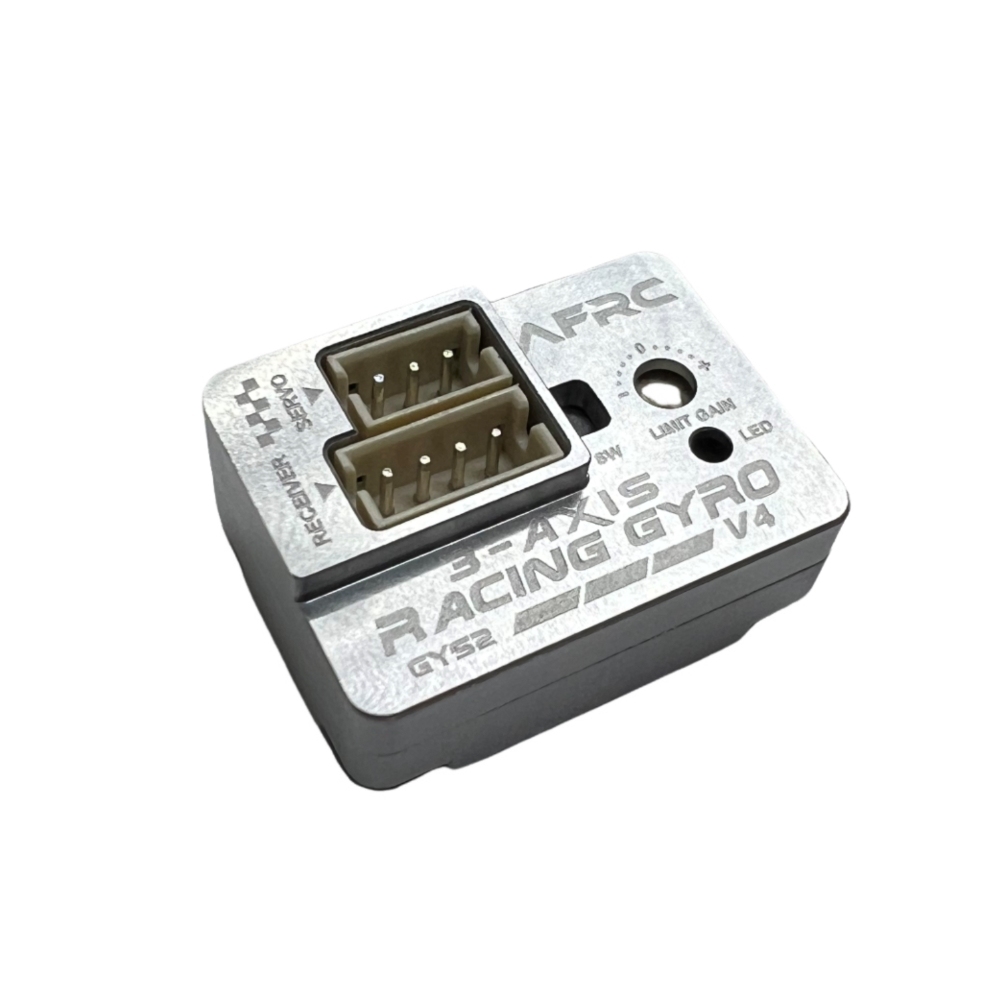

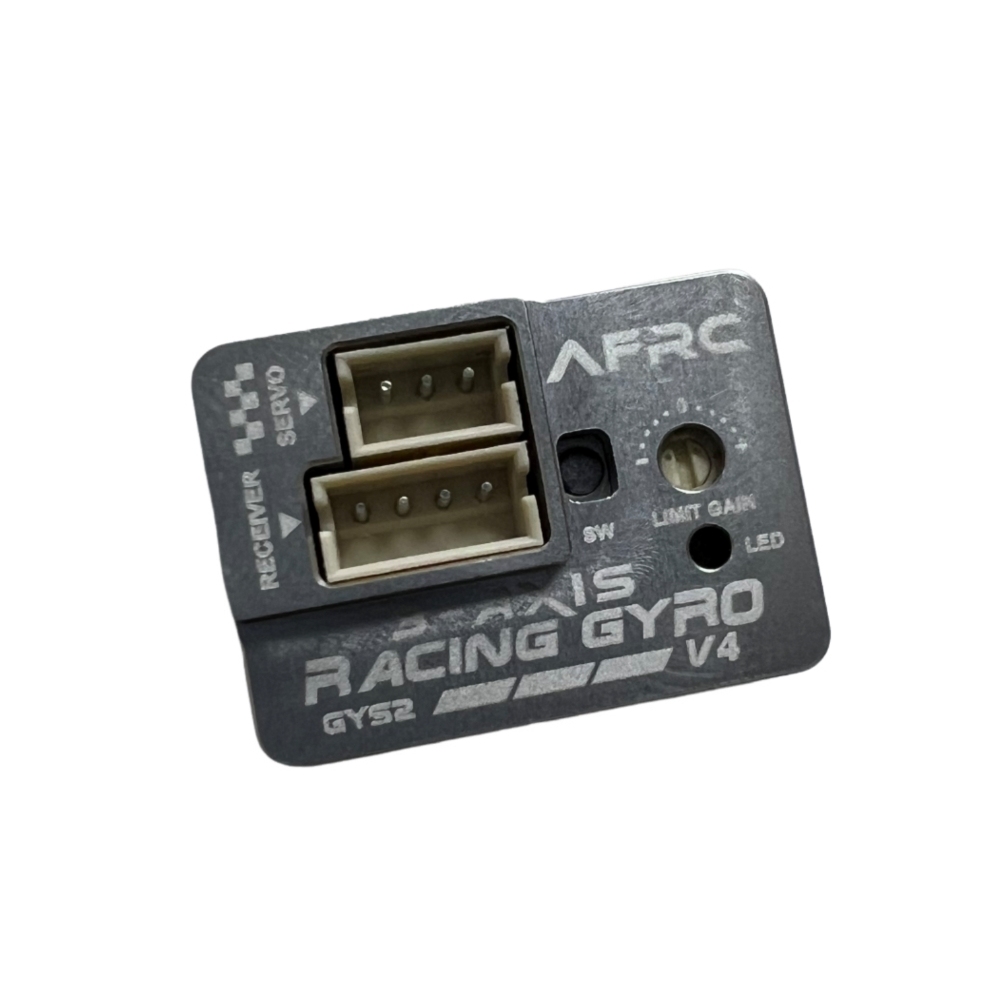

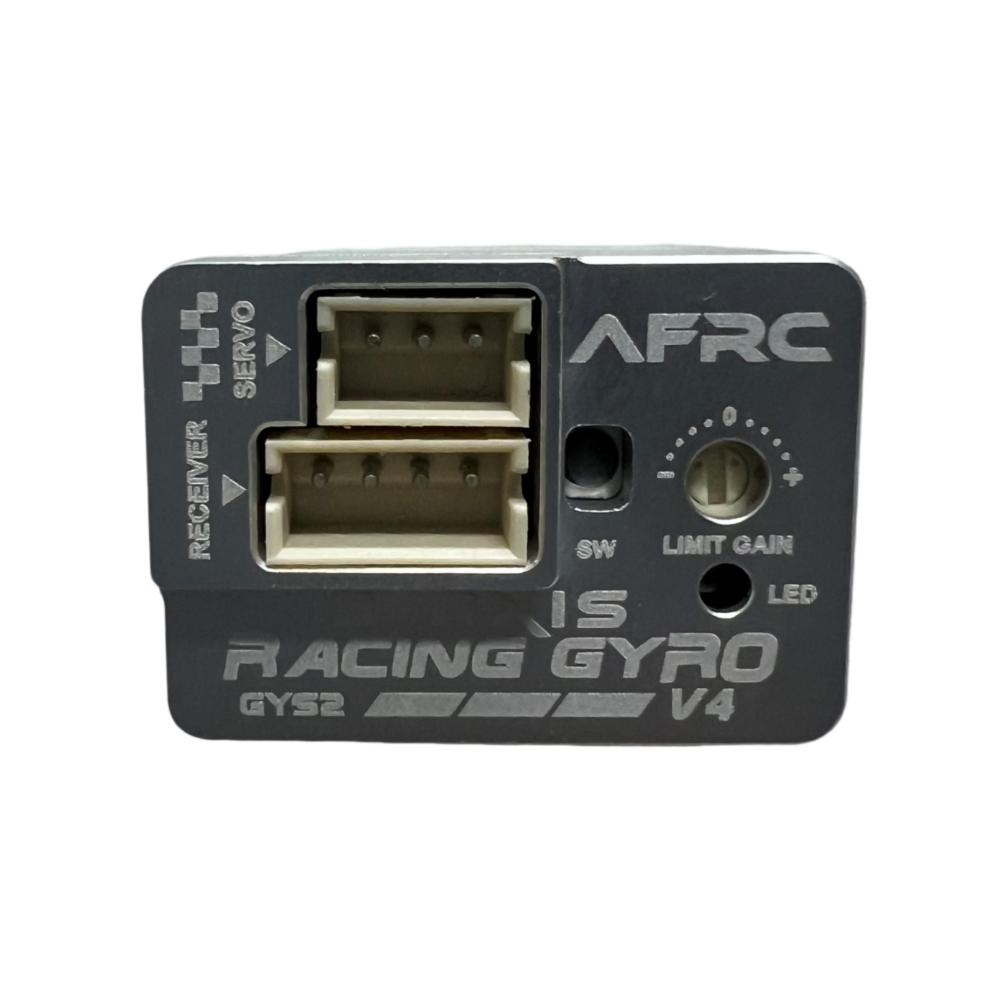

AFRC-GYS-2 V4 3-AXIS Gyro For MINI RC CAR (RTS Silver Custom Edition) RTS-365

Features:

◆ The shell adopts all metal CNC processing and surface anodizing treatment
◆ exquisite and compact design, suitable for mini Z/Q/D/R and 1/28,1/10 Drift car
◆ high quality gyroscope sensor has more stable performance and longer service life
◆ combined with the feedback of multi professional evaluation, the program optimization is more reasonable
◆ X, Y, Z 3-axis can be set to match more rc cars
◆ Multiple sensitivity modes are available for more application scenarios.
◆ support high voltage input: 3.7V-8.0V

Description:

Dimensions: 21 x 15 x 8.5 mm(0.83 x 0.59 x 0.33inch)
Working Voltage: 3.7 ~ 8.0V
Shell Material：AL6061
Weight：4g
Current Drain: <30mA
Operating Temperature：-10℃+50℃
Gain Mode: Normal / AVCS Mode
Operating Voltage: PID Control System
Input Signal: PWM(50~333Hz)/SANWA SSR/SUR/SXR/SHR;FUTABA S.BUS/S.BUS2
Input & Output Plug: JST1.5mm (attached the signal input cable to connect with receiver)

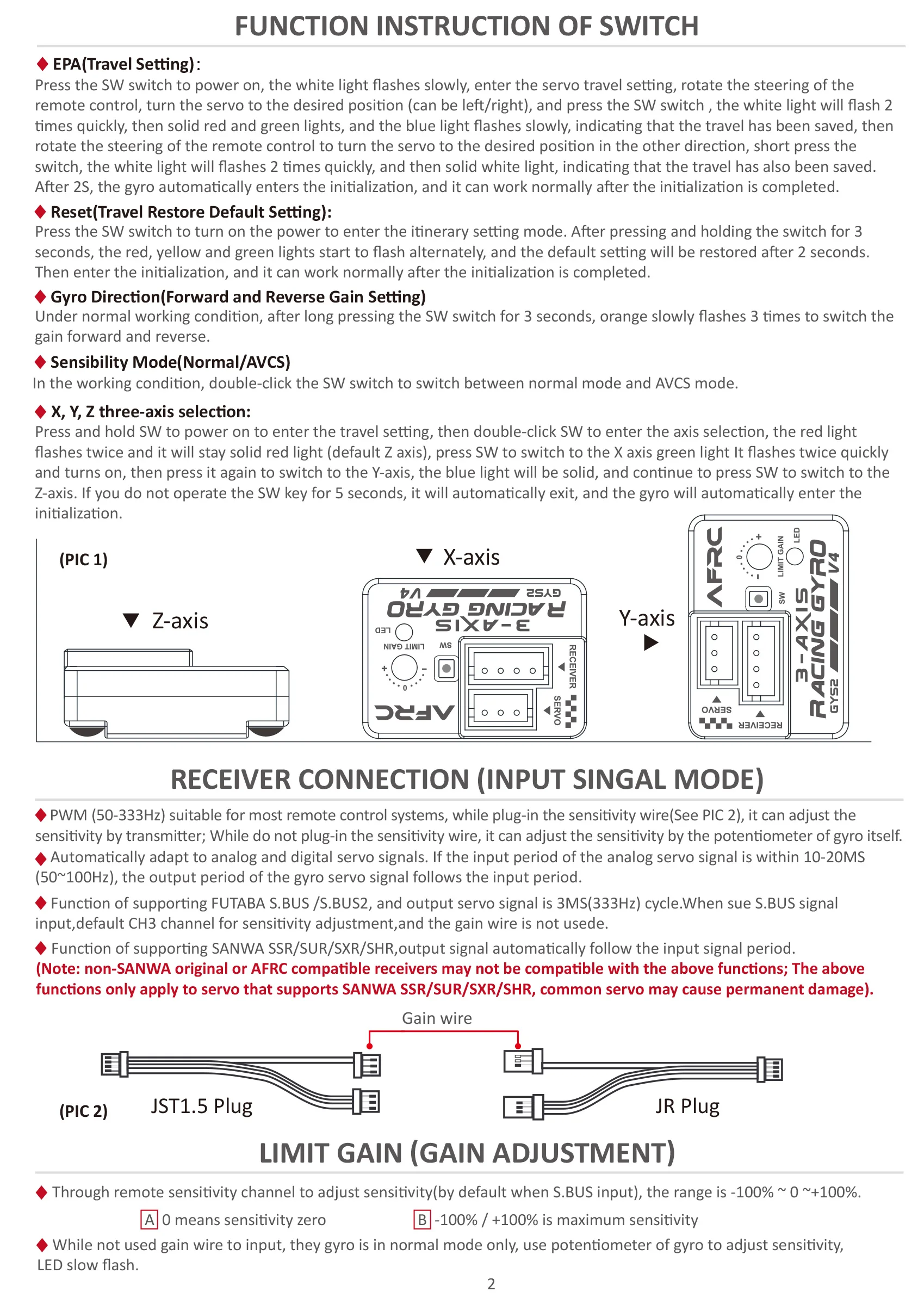

X, Y, Z three-axis selection:

Press and hold SW to power on to enter the travel setting, then double-click SW to enter the axis selection, the red light
flashes twice and it will stay solid red light (default Z axis), press SW to switch to the X axis green light It flashes twice quickly
and turns on, then press it again to switch to the Y-axis, the blue light will be solid, and continue to press SW to switch to the
Z-axis. If you do not operate the SW key for 5 seconds, it will automatically exit, and the gyro will automatically enter the
initialization.

X, Y, Z three-axis

X, Y, Z 3-axis can be set to match more rc cars

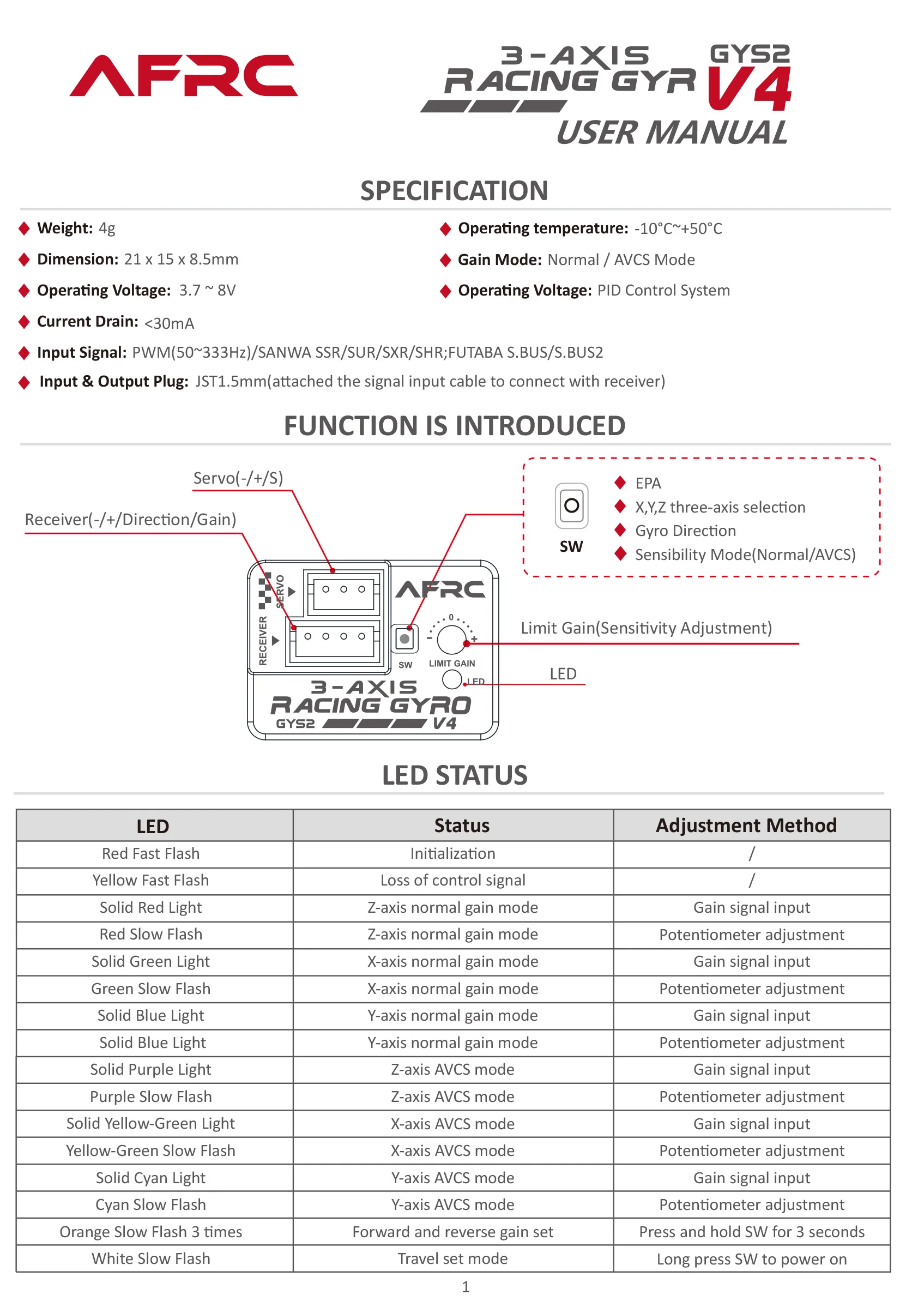

FUNCTION IS INTRODUCED

AVCS Mode

In the working condition, double-click the SW switch to switch between normal mode and AVCS mode.

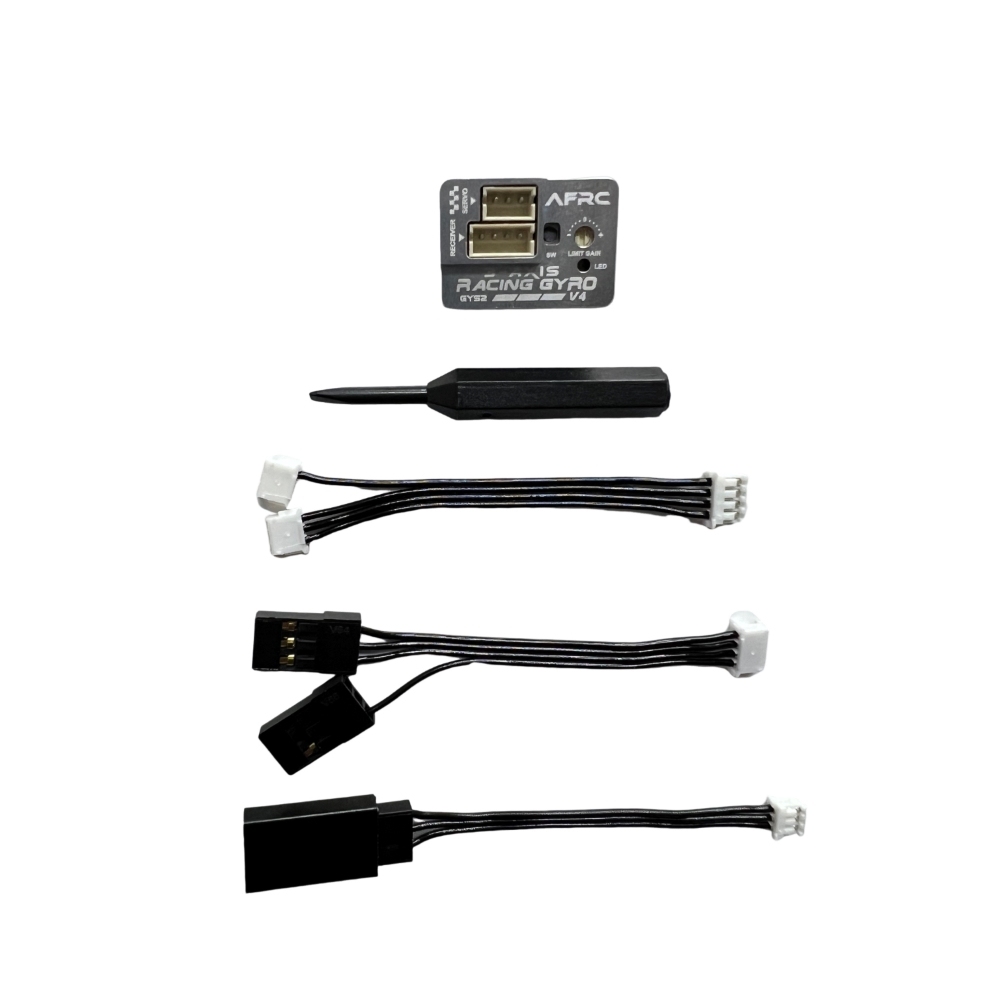

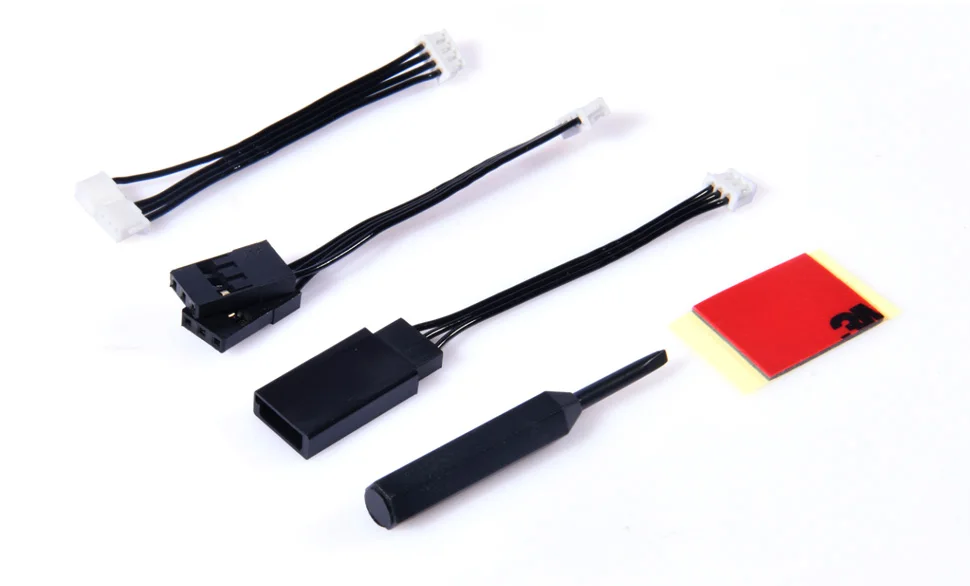

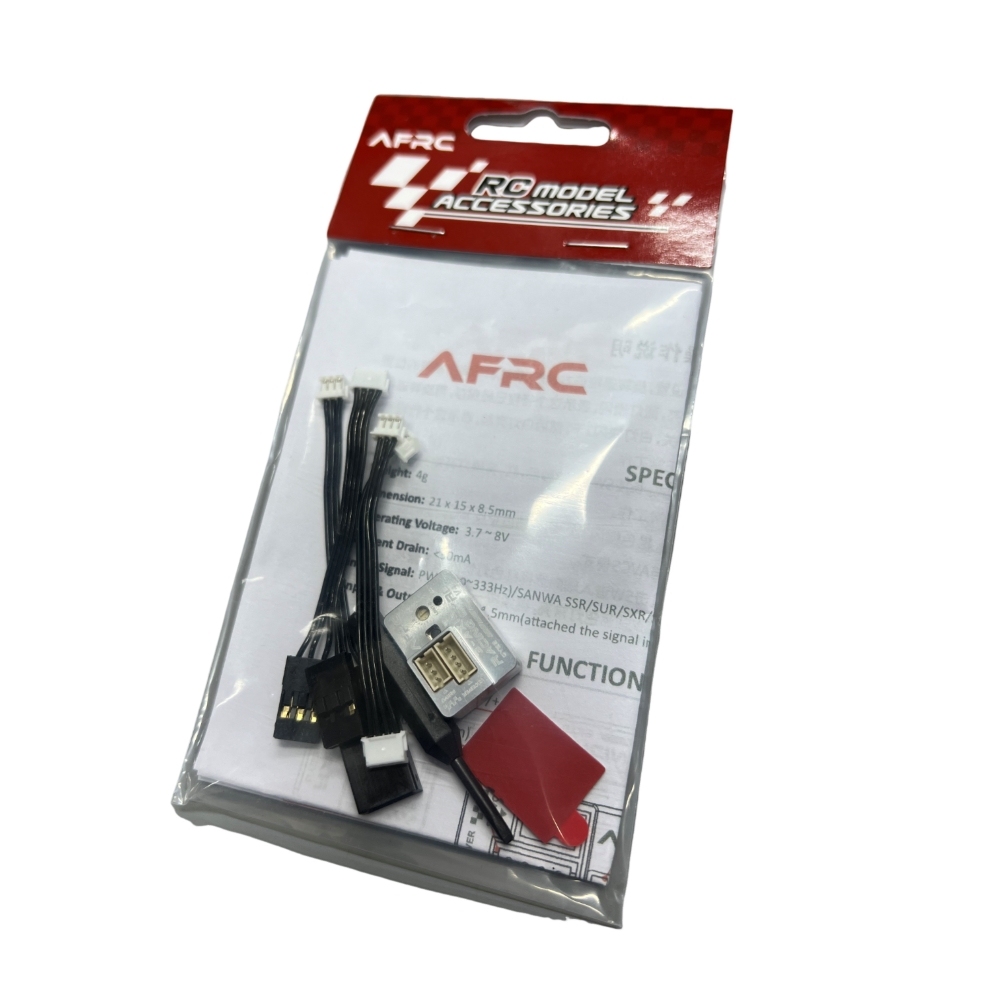

Accessories
