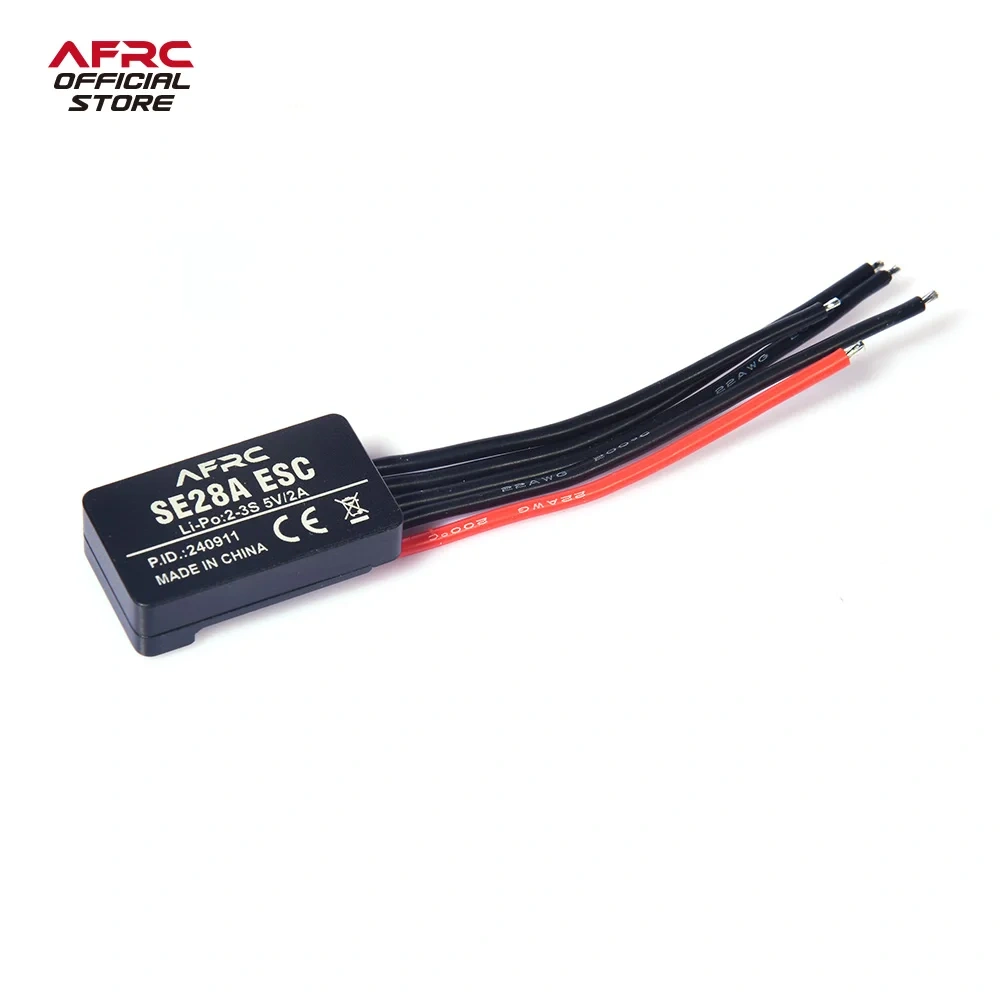

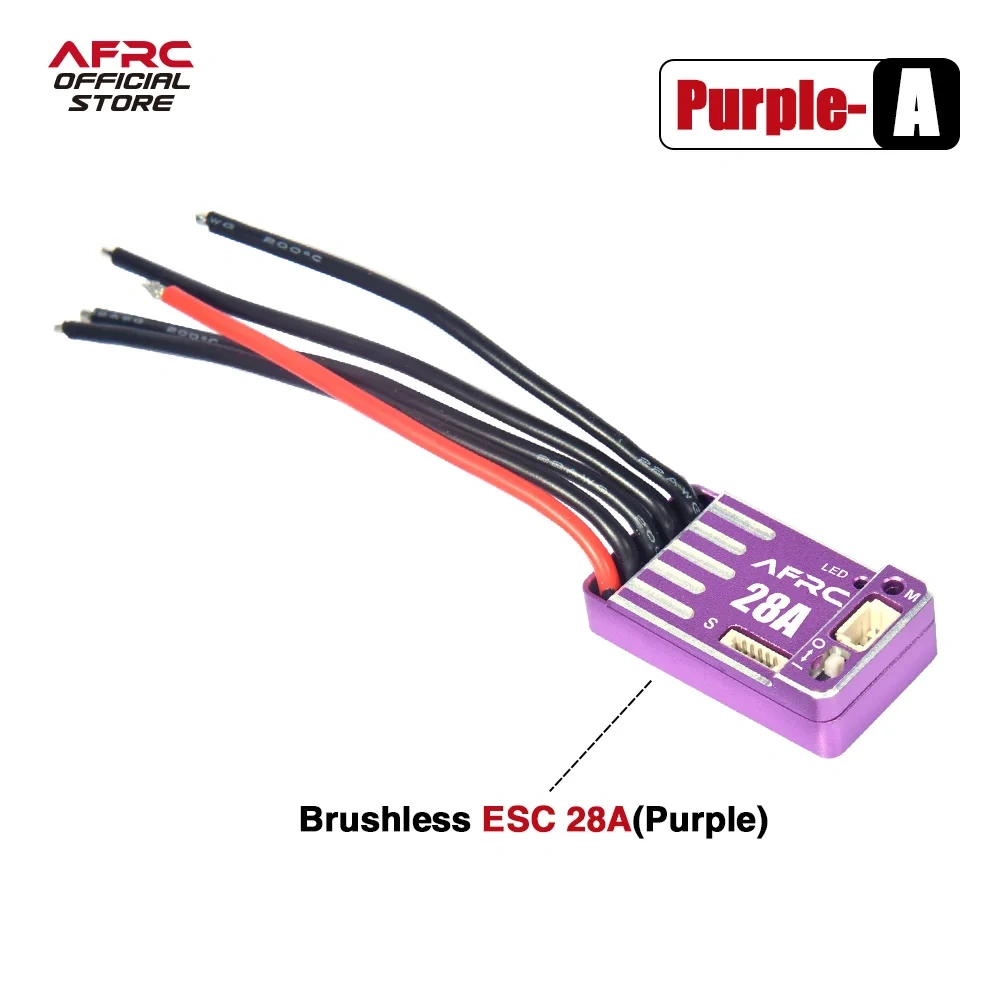

AFRC-SE28A
Programmable Brushless ESC For GL BM AAT RC Car Mini Drift Racing 1/24 1/28 1/32 DIY Assembly Upgrading
Feature:
◆ 28A ESC: Built-in various common modes, suitable for all kinds of tournaments, ready to use.
◆ ESC parameters can be imported/exported, which is more convenient for players to communicate with each other and learn from each other's parameters Setting.

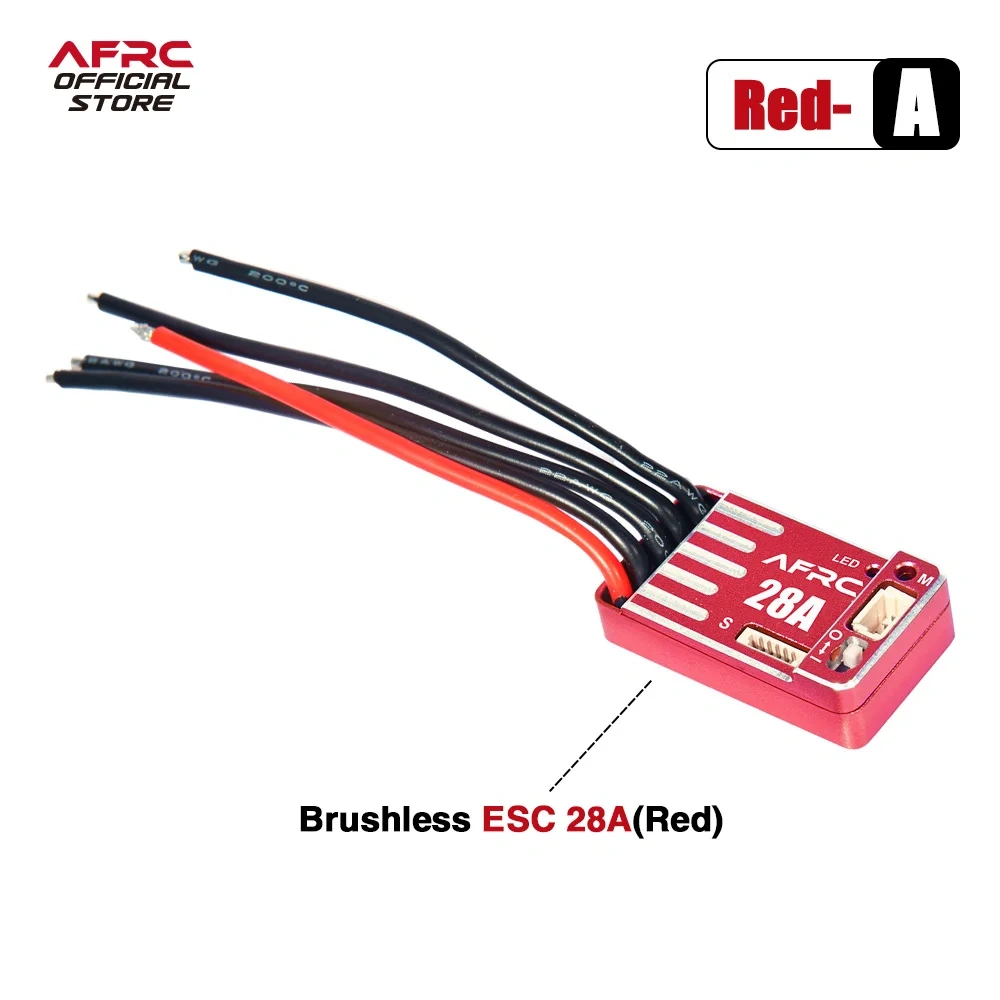

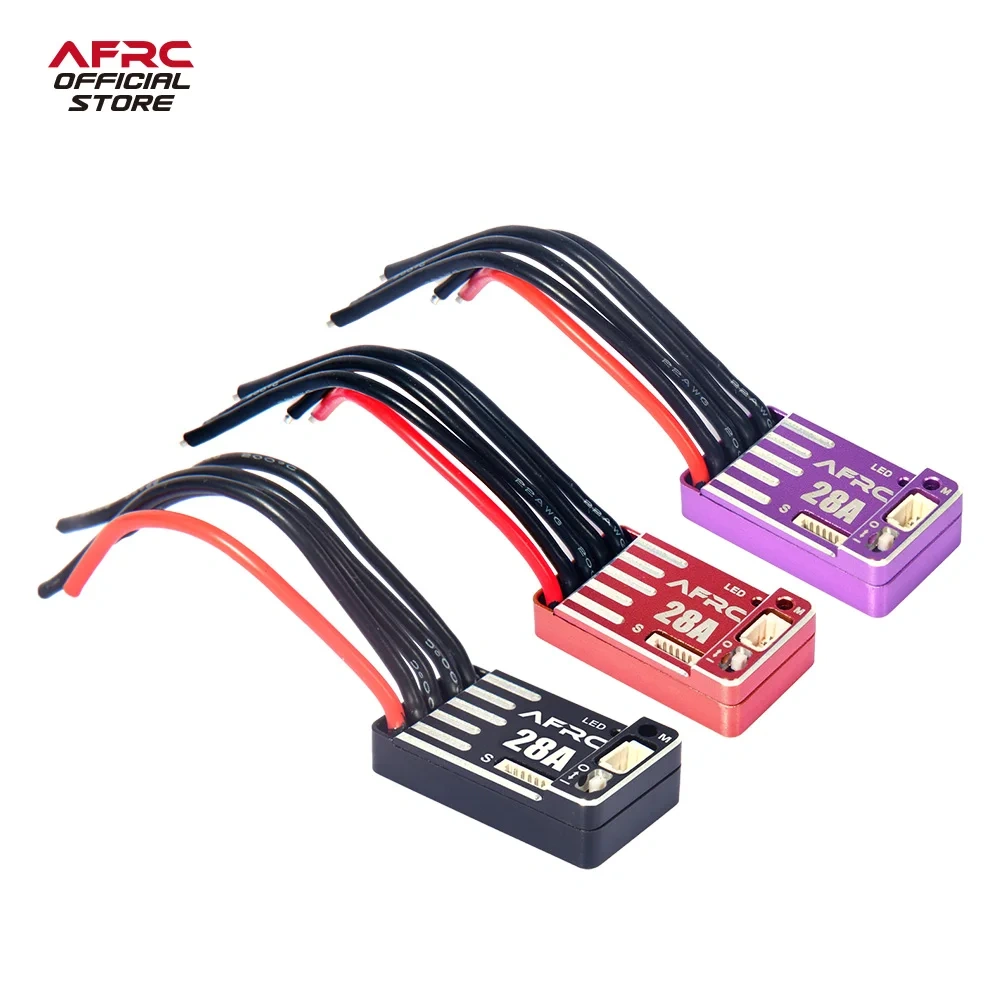

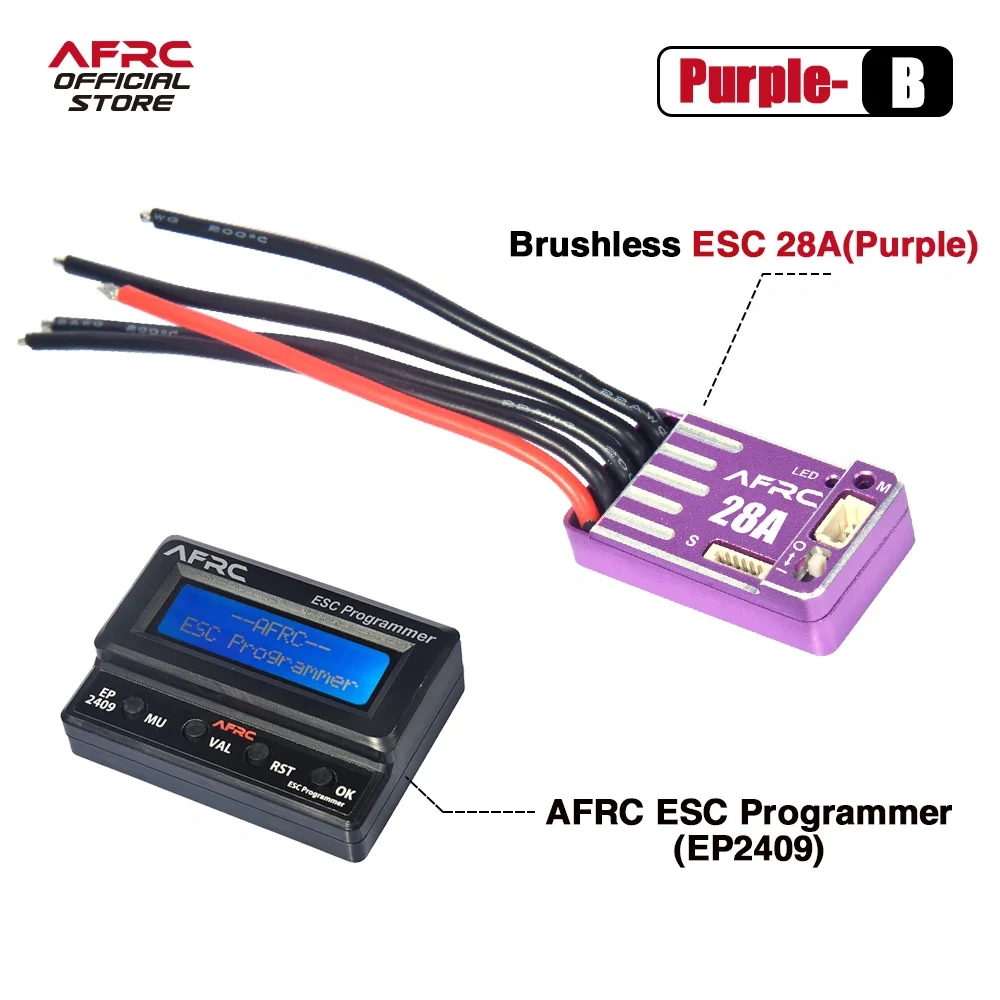

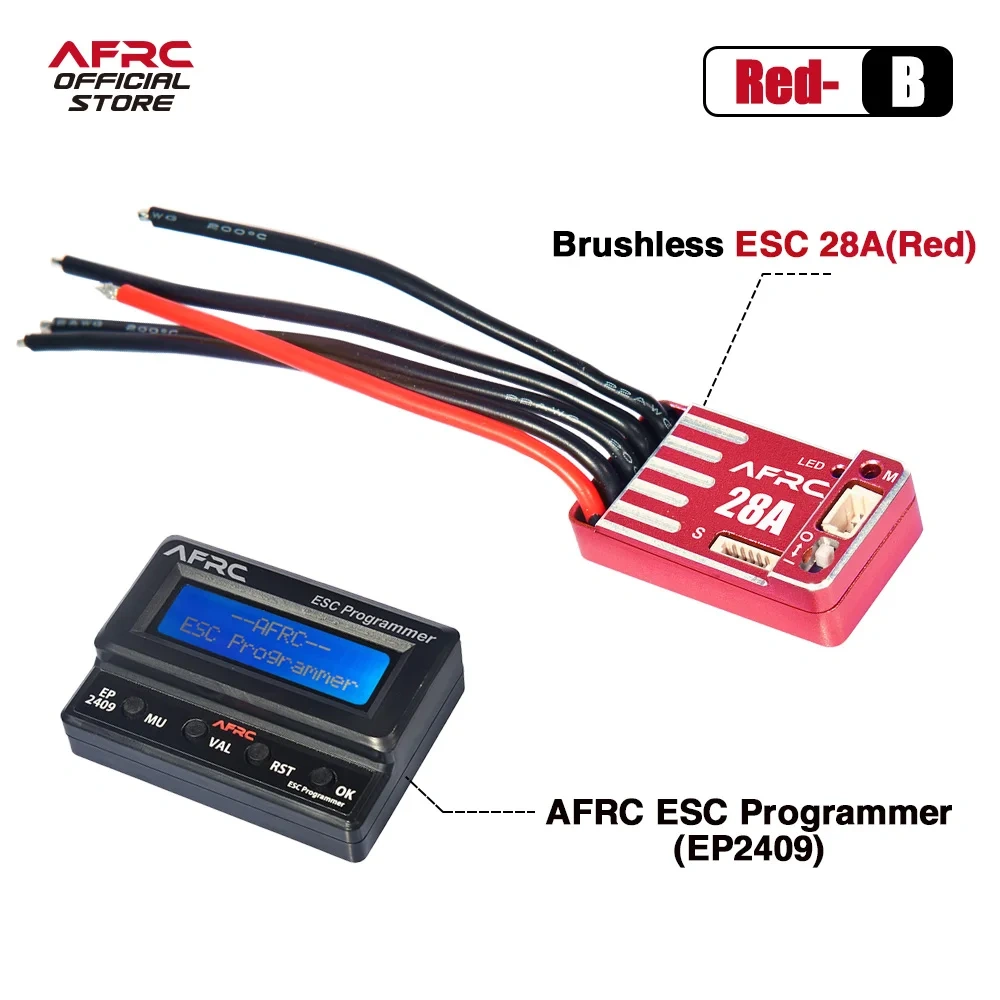

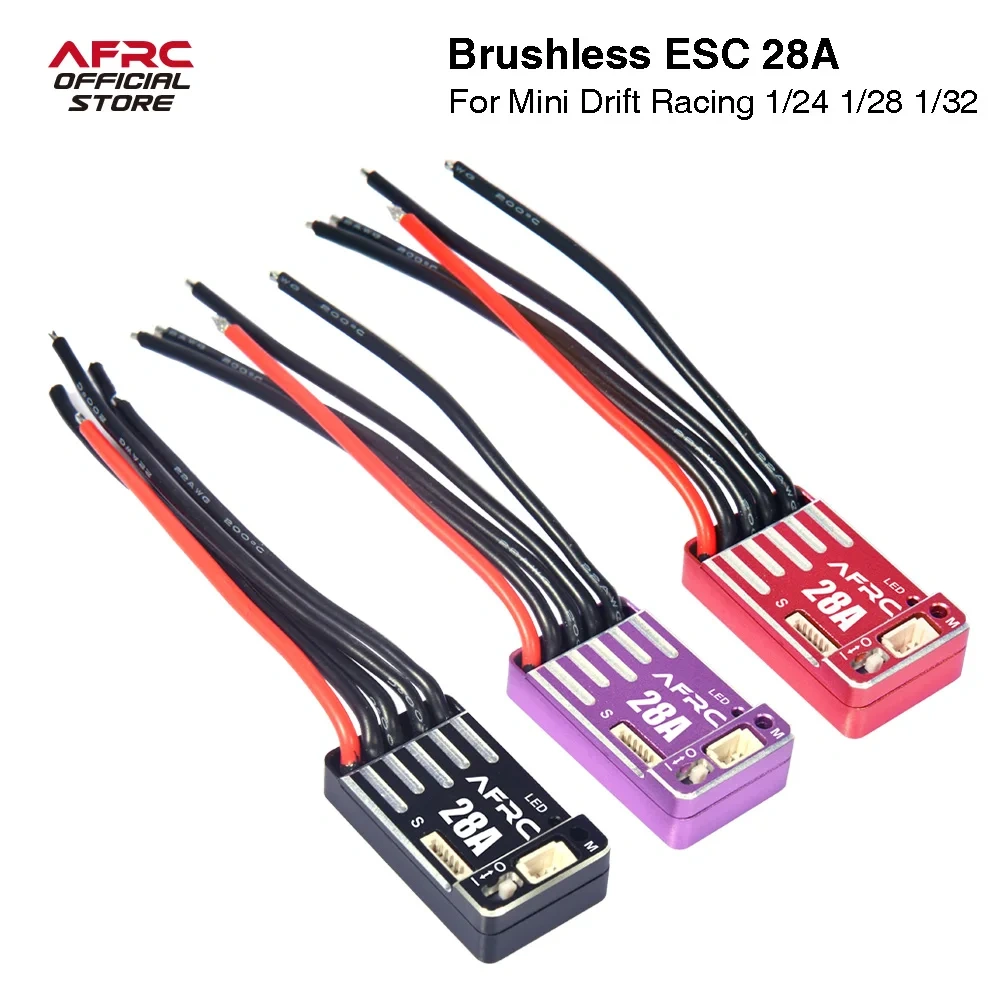

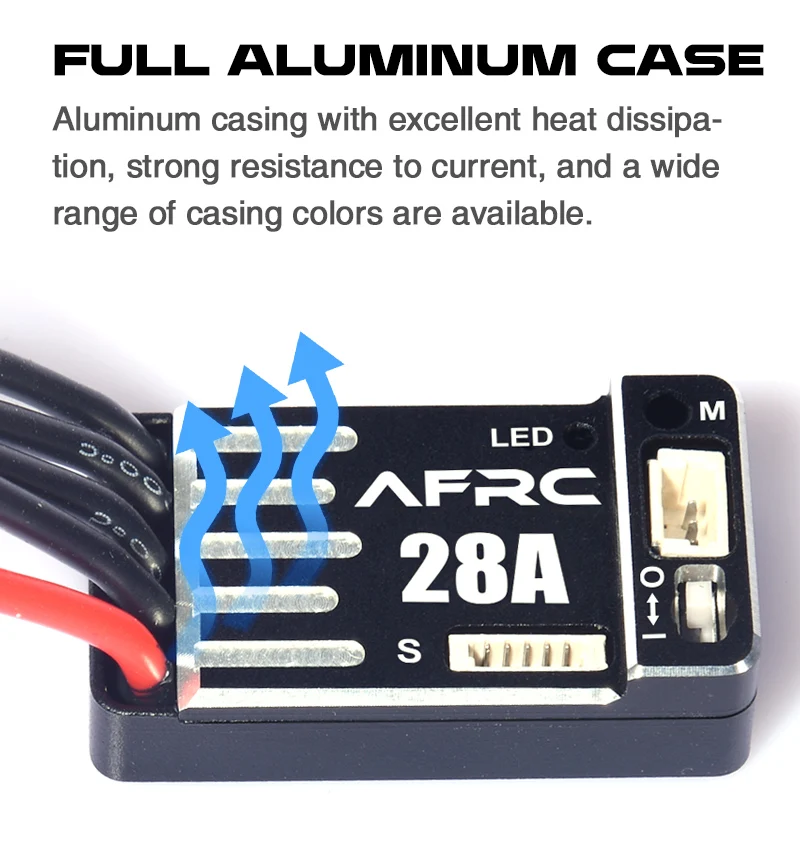

◆ Aluminum metal shell, excellent heat dissipation, strong resistance to current, and a variety of shell color options.
◆ With the addition of Dynamic Turbo Timing technology, the timing parameters can be set in a very detailed manner to suit the needs of different riders.
◆ Multiple protection functions: low voltage protection, motor and ESC overheating protection, and runaway throttle protection.

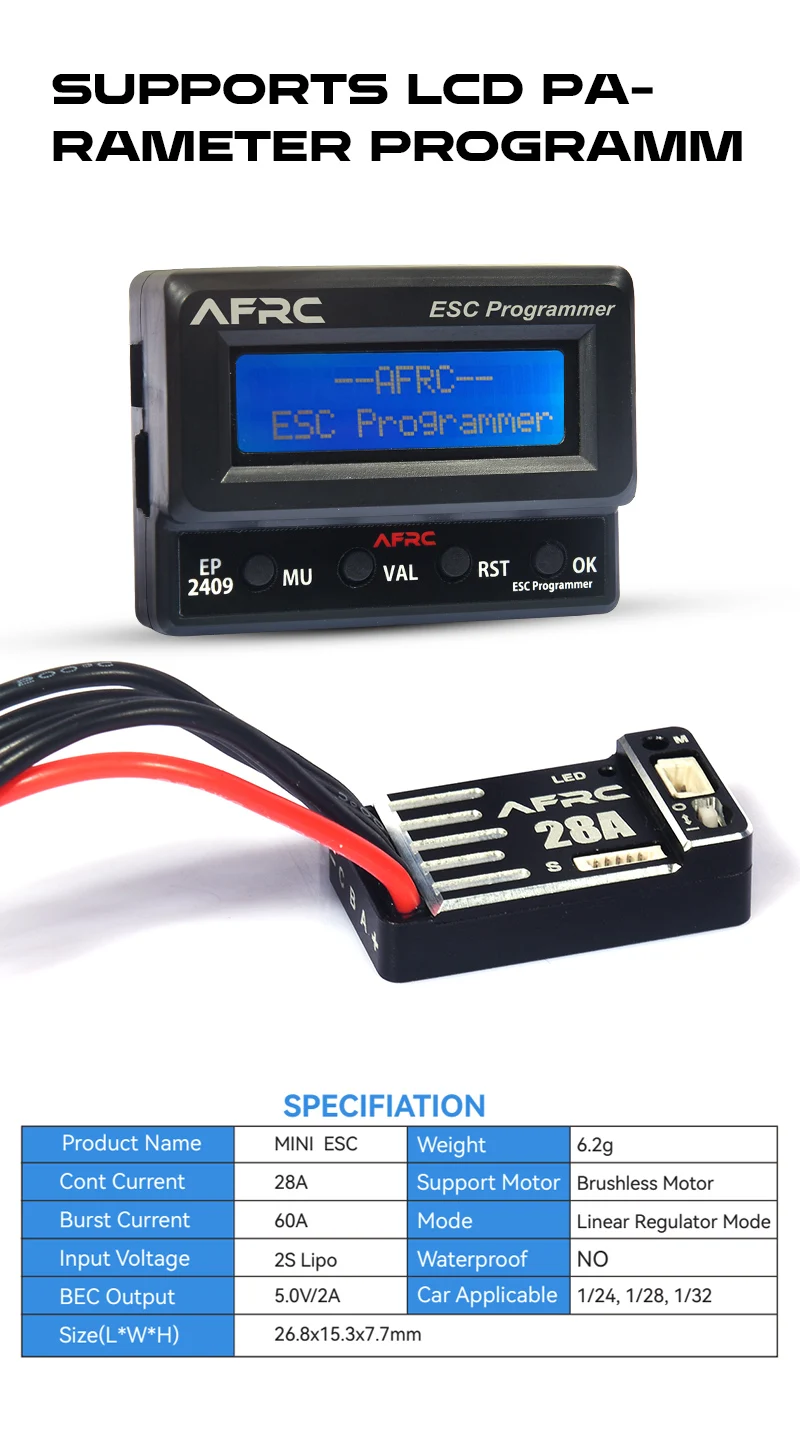

◆ Supports LCD parameter programm
Specifications:
Model: AFRC-SE28A
Continued Current: 28A
Burst Current: 60A
Input Voltage: 2S
BEC Output: 5.0V/2A

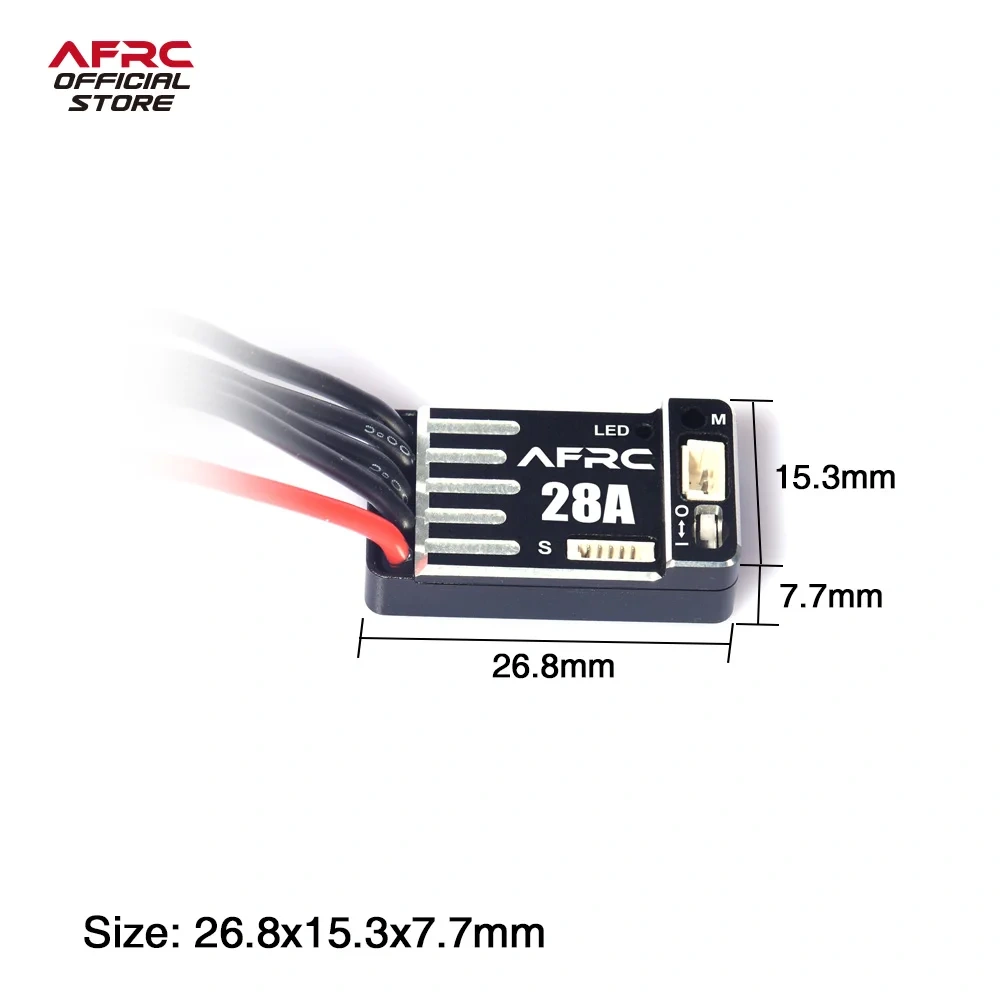

Size:(L*W*H): 26.8x15.3x7.7mm
Weight: 6.2g
Support Motor: Brushless Motor
Waterproof: No

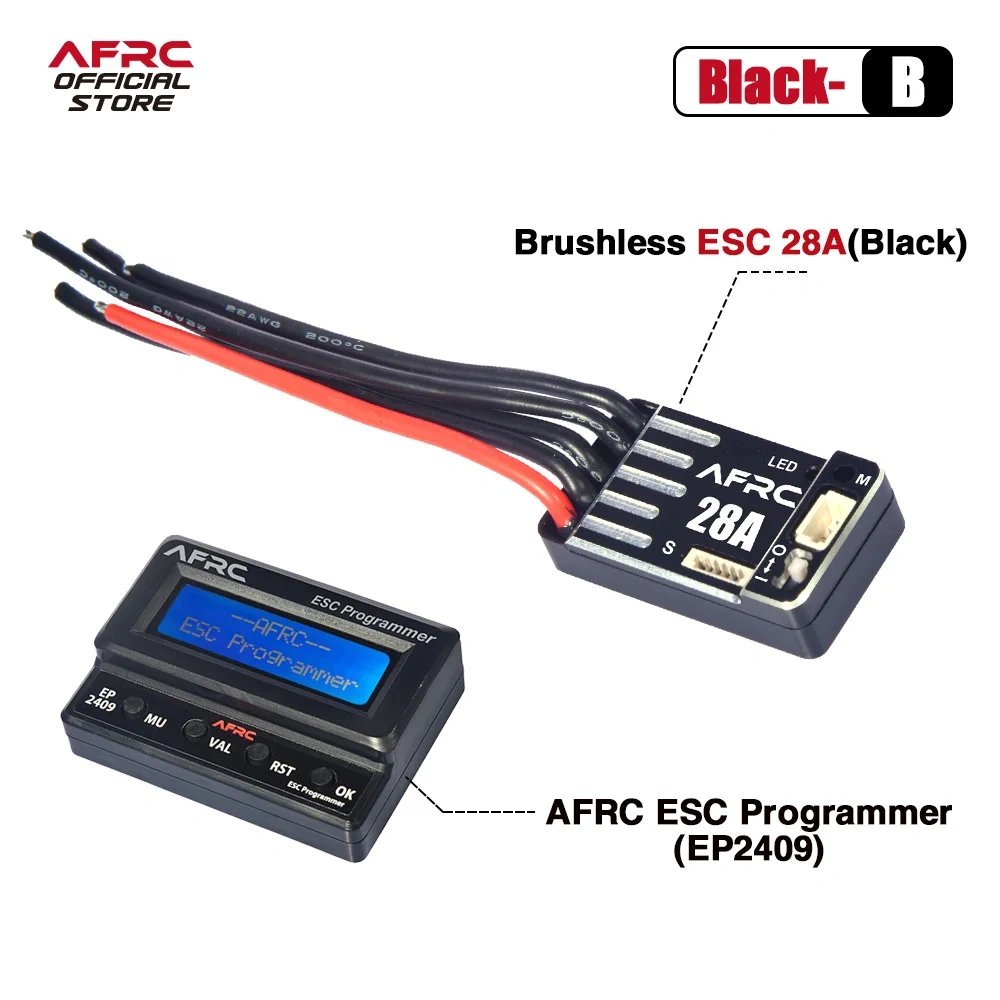

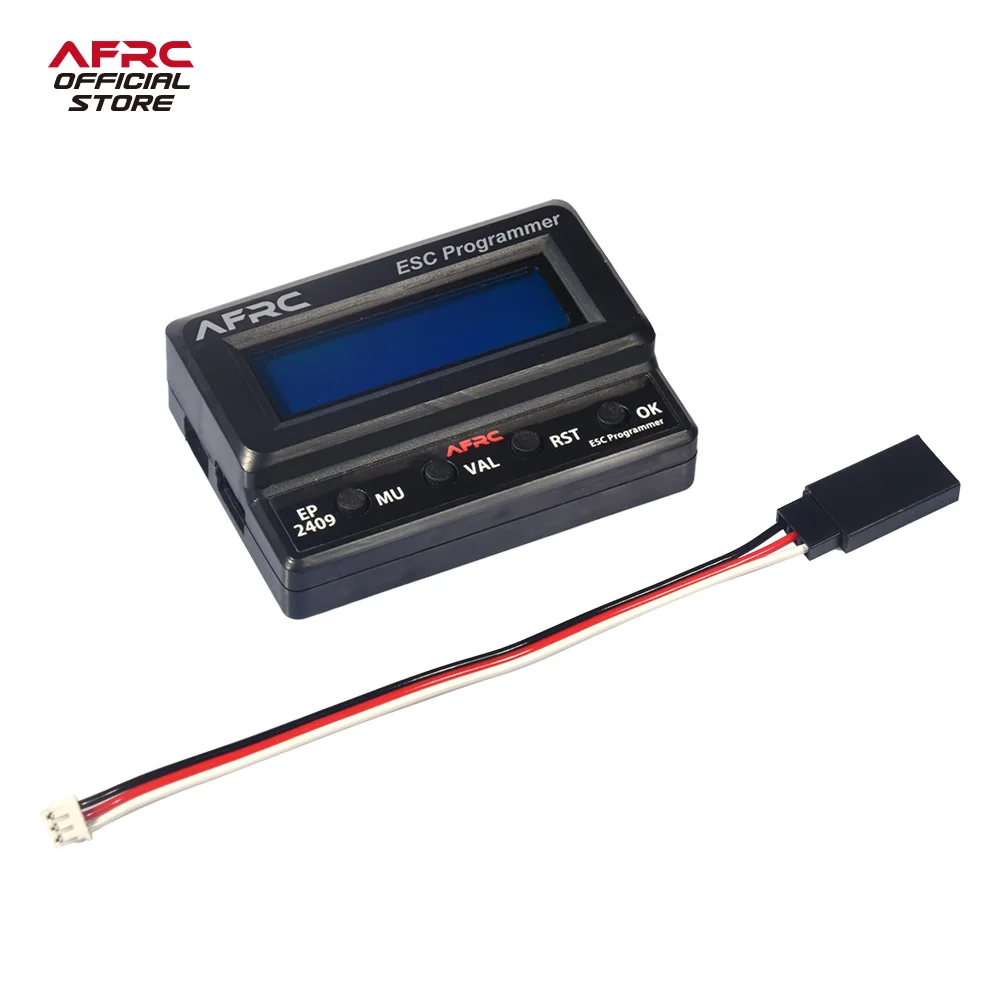

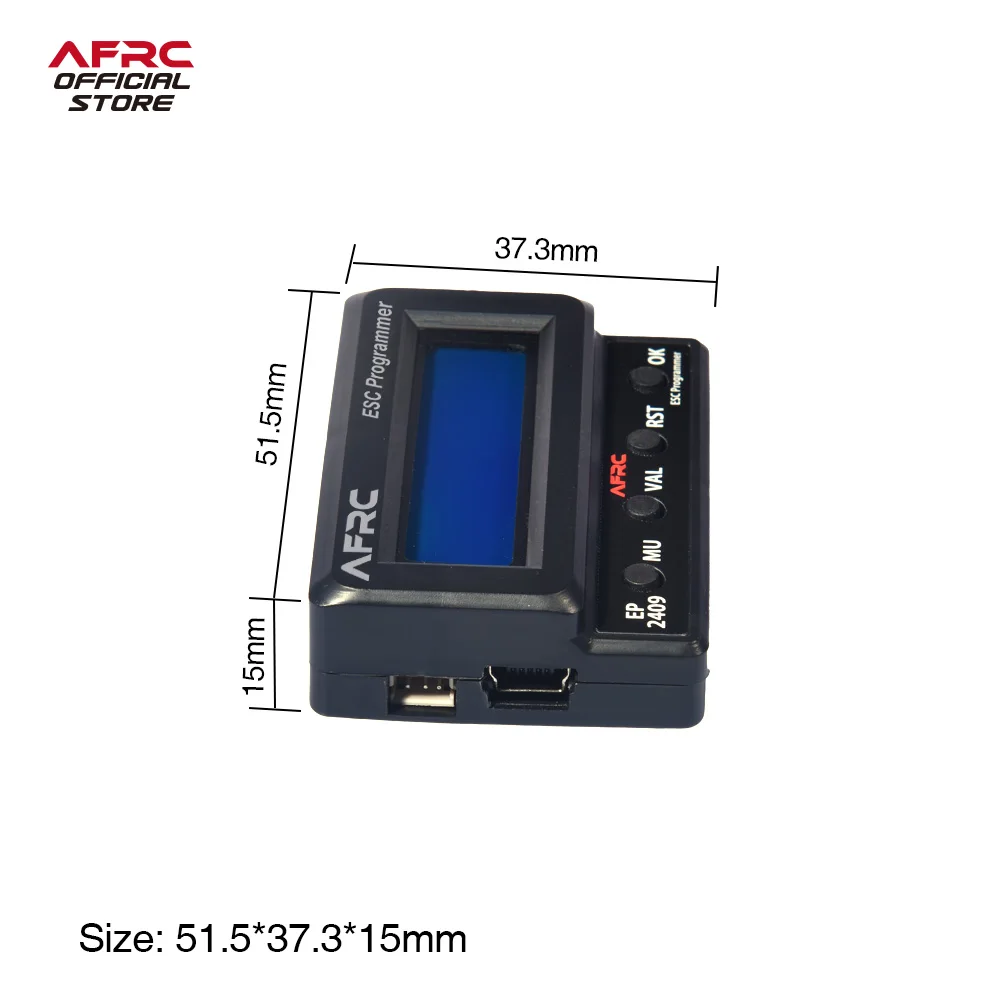

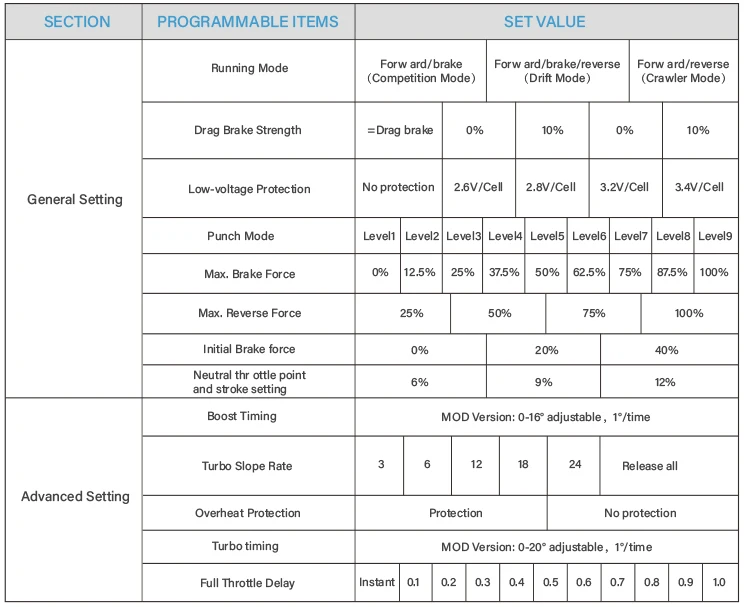

Programmable Items Description

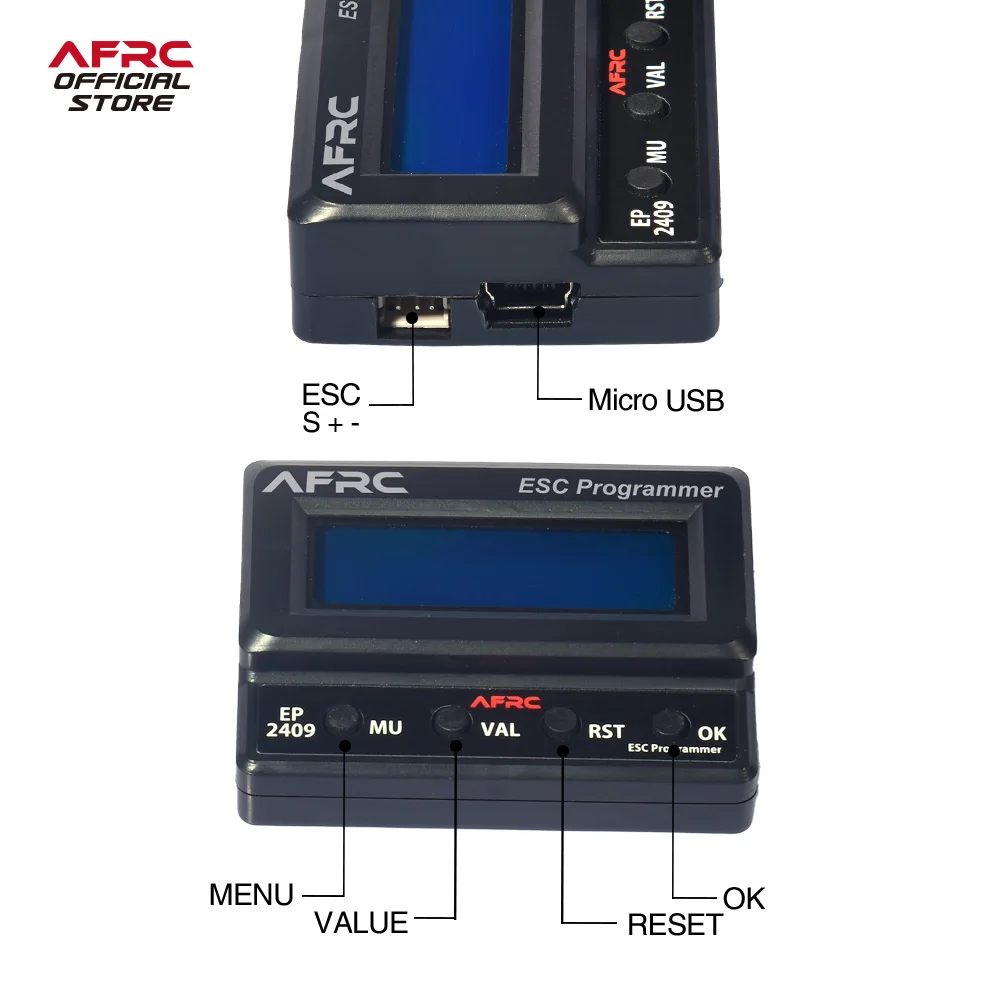

MENU: Circularly switch programming projects and modes; Exit the user-defined parameters
setting; Enter the programming project setting.
VALUE: Circularly switch the parameter value of a programming project, and circularly switch the user-defined parameter value of a programming project;
RESET: Enter or return to the mode, select the main menu;
OK: Save and send the parameter values in the current mode to the ESC. Enter the mode of user-defined parameter value setting of a programming project.
ESC: Use the programming line to connect this port with the programming port of ESC (most
airplane models' ESC throttle line is multiplexed with the programming line, in this case, insert the
ESC throttle line into this port)
USB: This port is connected to the USB port of the computer.
Continued Current: 28ABurst Current: 60AInput Voltage: 2SBEC Output: 5.0V/2ASize: (L*W*H): 26.8x15.3x7.7mmWeight: 6.2g**Advanced Performance and Compatibility**The AFRC-SE28A Programmable Sensor Brushless ESC is designed to elevate the performance of your RC car. It is a versatile and powerful ESC, capable of handling a continuous current of 28A with a burst capacity of 60A, ensuring your vehicle can handle the most demanding drift racing scenarios. The AFRC SE28A ESC is compatible with a wide range of vehicles, including 1/24, 1/28, and 1/32 scale RC cars, making it a go-to accessory for mini drift racing enthusiasts. The ESC's compact size and lightweight design make it an ideal choice for DIY assembly and upgrading of RC cars.**User-Friendly Programmability and Protection**The AFRC SE28A ESC is equipped with a user-friendly LCD parameter programmability, allowing you to customize your car's performance to your liking. With the ability to import and export ESC parameters, this ESC facilitates communication and learning among players. Additionally, the ESC offers multiple protection functions, including low voltage protection, motor and ESC overheating protection, and runaway throttle protection, ensuring your vehicle's safety during intense drift racing sessions.**Optimized for Performance and Durability**The AFRC SE28A ESC's aluminum metal shell not only adds a sleek aesthetic to your RC car but also provides excellent heat dissipation, effectively resisting current surges and ensuring longevity. Furthermore, the ESC's Dynamic Turbo Timing technology allows for detailed timing parameter settings, catering to the diverse needs of drift racing enthusiasts. This innovative feature, coupled with the ESC's robust build and support for brushless motors, makes it a reliable and high-performance accessory for any RC car.
