DasMikro 1S 3A ESC Micro Speed Controller With Light Control For DIY 1/87 to 1/43 micro rc car

Name: DasMikro 1S 3A ESC Micro Speed Controller With Light Control For DIY 1/87 to 1/43 micro rc car
Brand: GT55racing
SKU: 2255799995070515
Price: 6.6 USD
Availability: InStock

0.0 (0)

29 Sold

$6.60

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

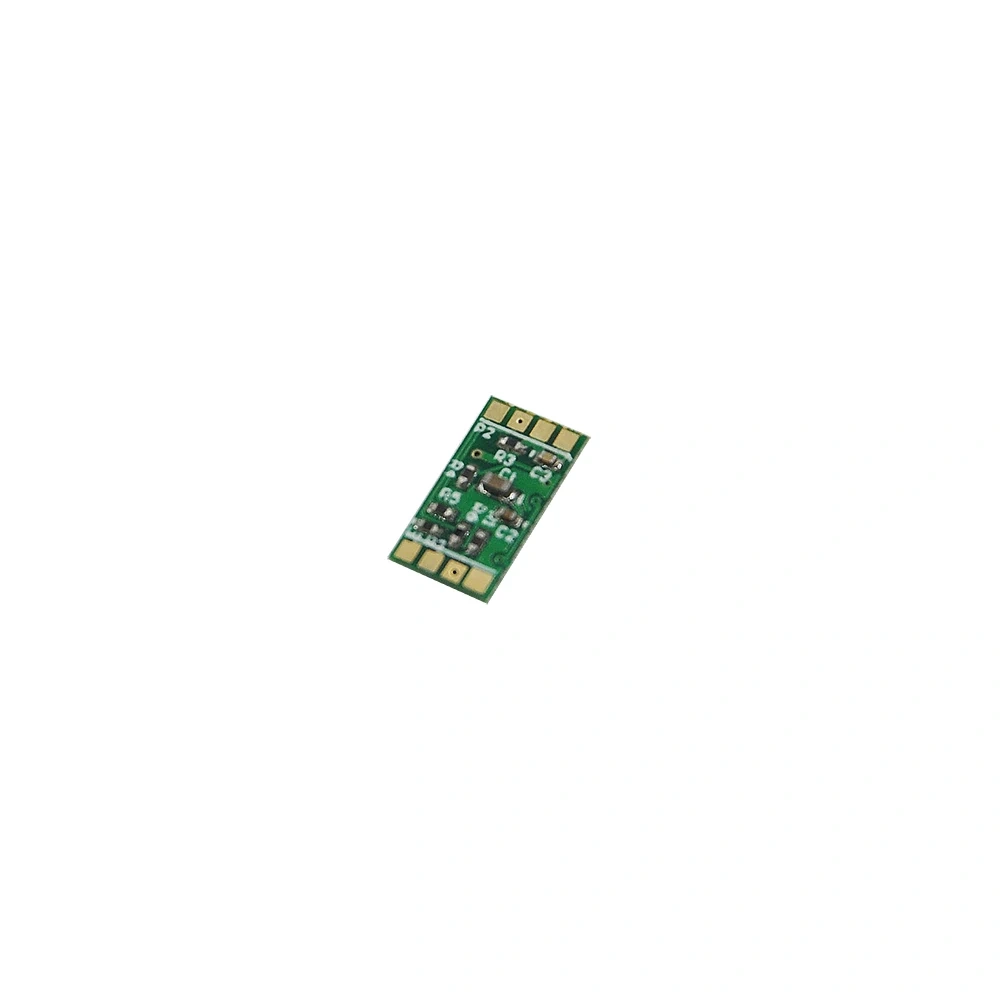

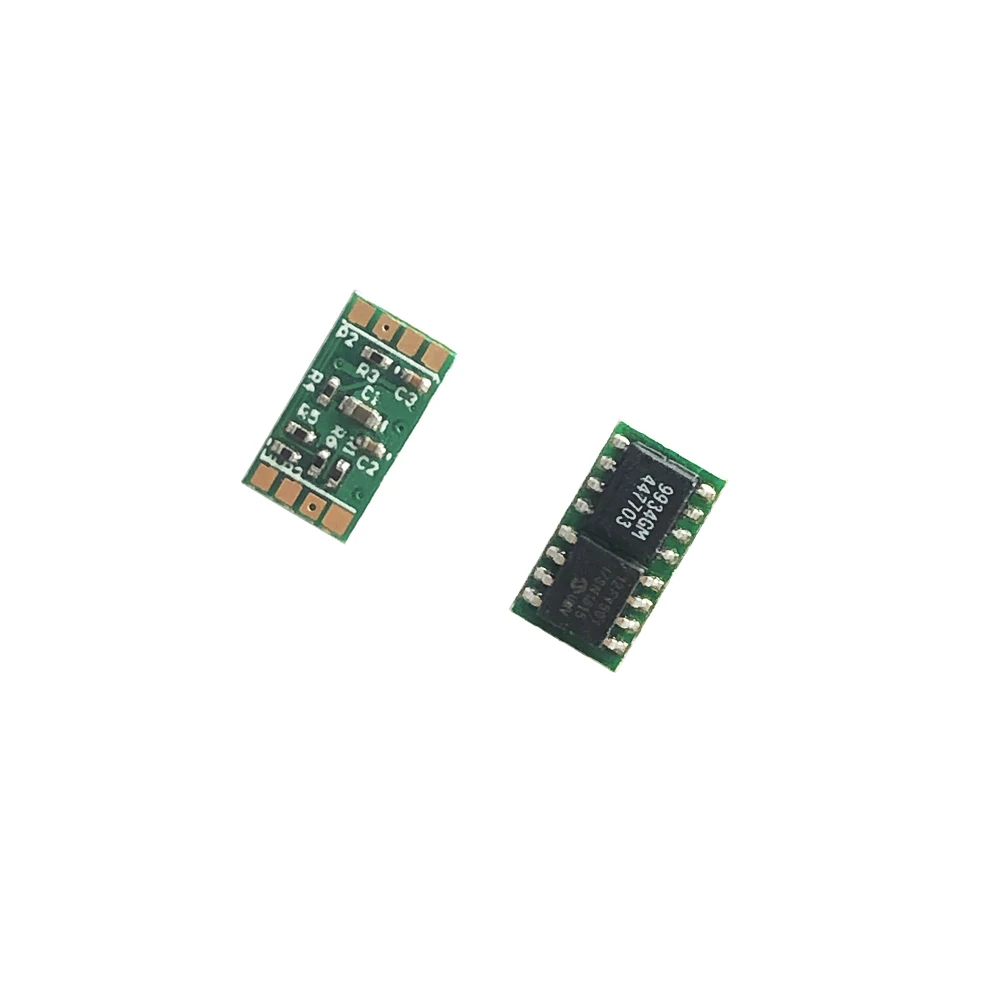

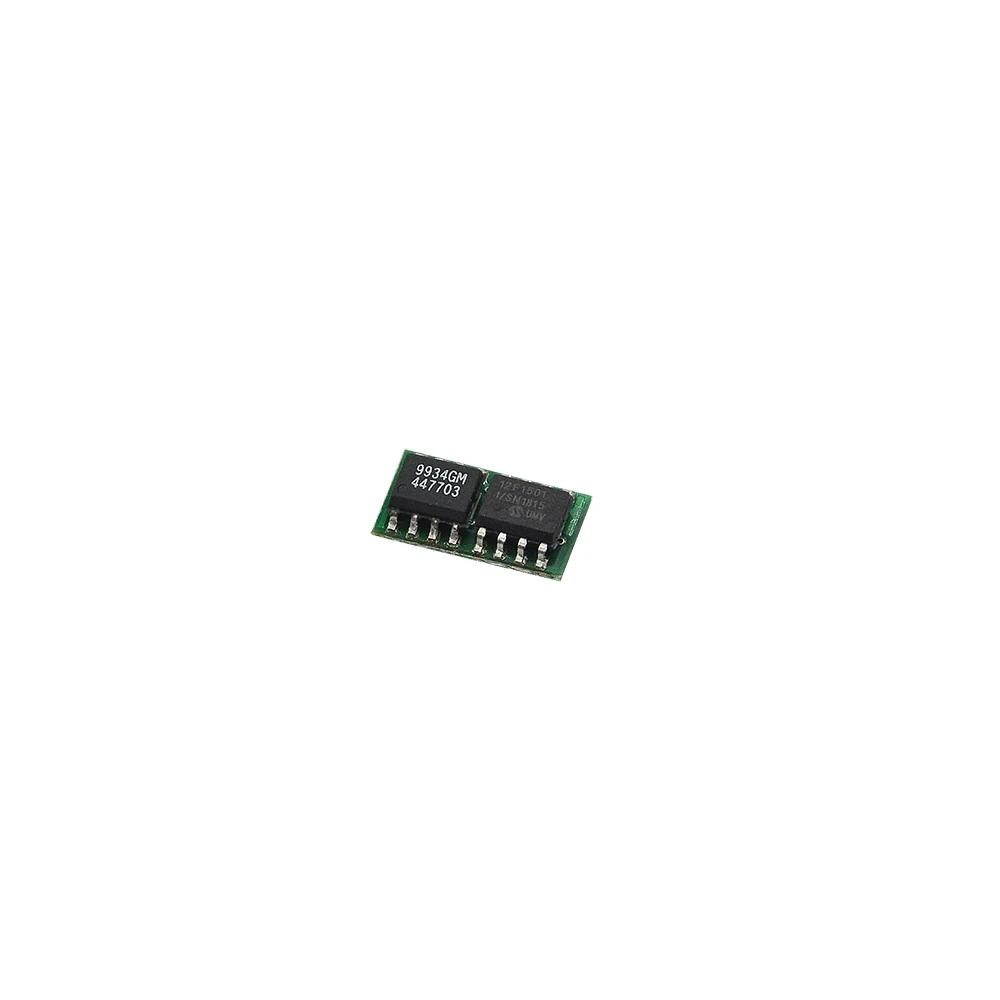

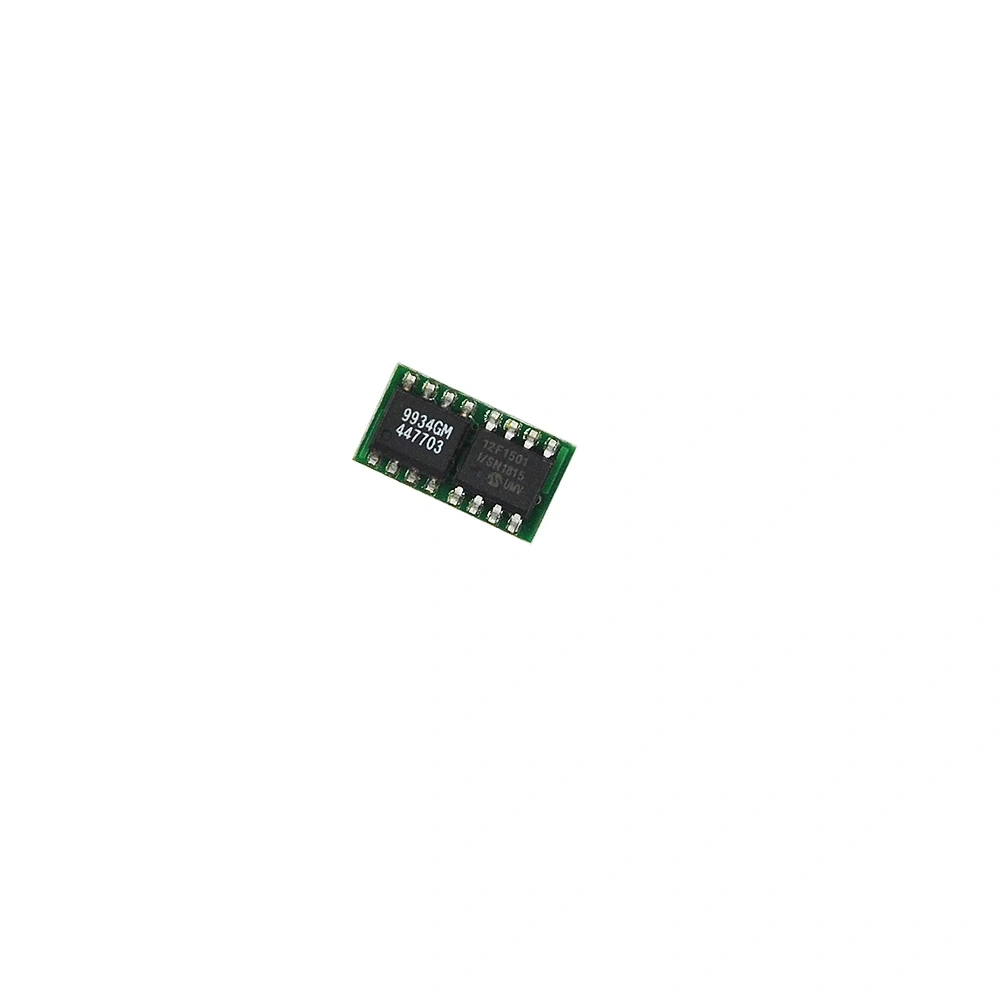

DasMikro 1S 3A ESC Micro Speed Controller With Light Control

This ESC module is designed for 1/87 to 1/43 micro rc model.
The esc has no brake. Servo signal control the motor speed and servo signal control the front and rear led.
When servo signal 2 is low, both front led and rear led are off.
When servo signal 2 is middle, front led is low beam and rear led is on.
When servo signal 2 is high, front led is far light and rear led is on.

Technical Data:
Working voltage: 3.7V-5.5V
Input Signal Type: PWM
Driving frequency: 250Hz
The servo signal range: 1ms-2ms
Output Current: 3A
Size: 12mmx6mmx2.5mm

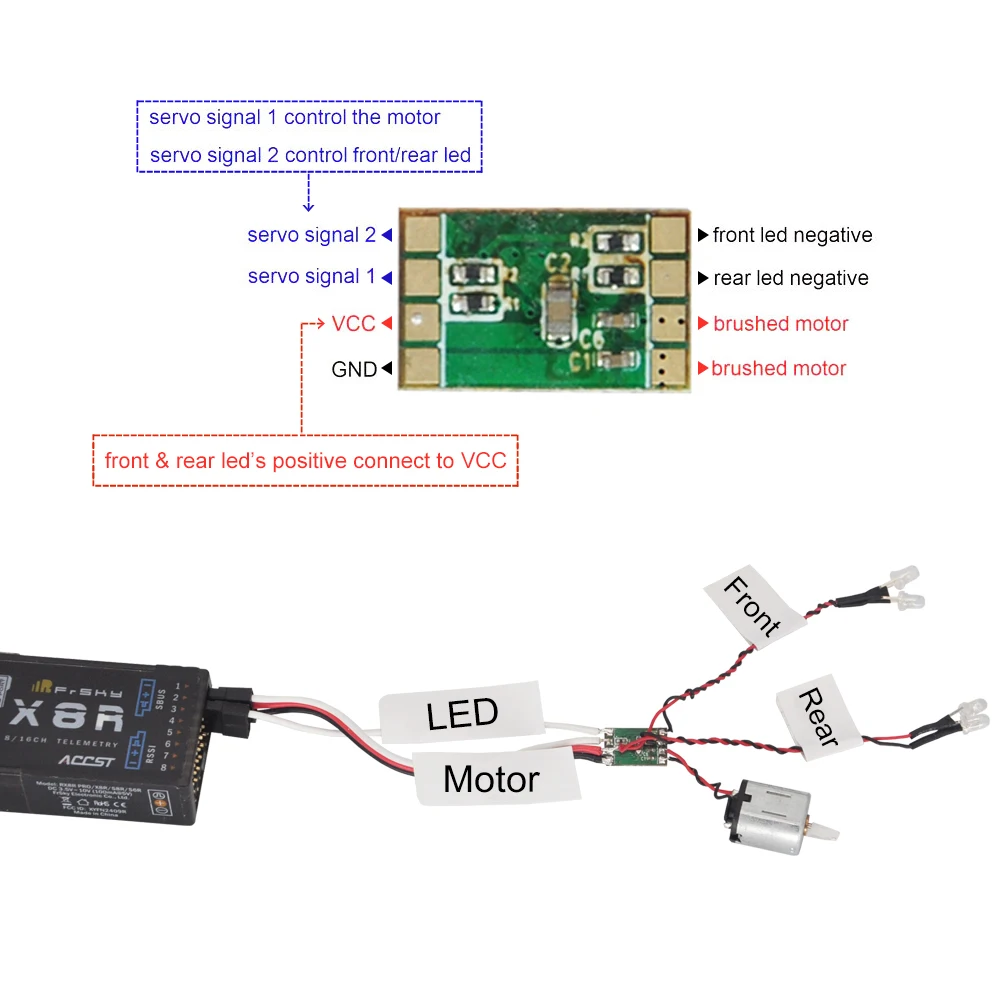

See more details about the wire connnection in the picture.
