GT55racing Gyro Module 4.7-7.4V For 1/28 RACING CAR GTR-25

Name: GT55racing Gyro Module 4.7-7.4V For 1/28 RACING CAR GTR-25
Brand: GT55racing
SKU: GT-145
Price: 25.99 USD
Availability: InStock

SKU: GT-145

0.0 (0)

8 Sold

$25.99

For 1/28 RACING CAR

Features: 1. High performance CPU enhance precision control feeling 2. Micro size (15x12x6mm) 7. Operating Voltage 4.7V - 7.4V: 8. Weight: 2g

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (2)

1/1

Description

This RC GYRO is designed for micro racing. It is a fast response gyro with high accuracy.

Features:

1. High performance CPU enhance precision control feeling

2. Micro size (15x12x6mm)

7. Operating Voltage 4.7V - 7.4V:

8. Weight: 2g

Instruction:

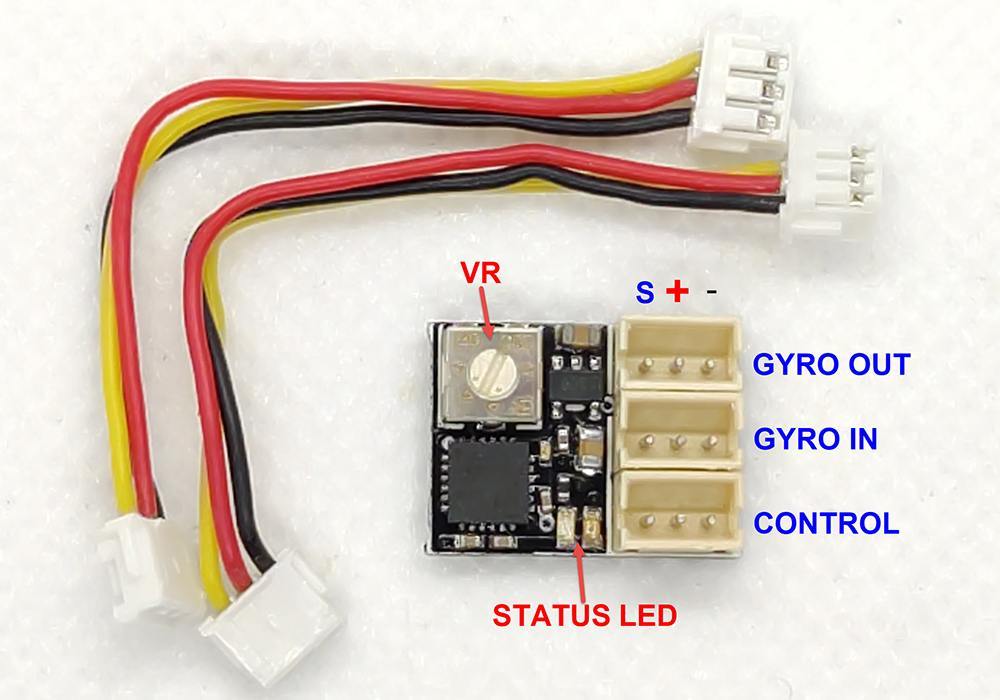

GYRO IN: Connect steering channel from receiver

GYRO OUT: Connect steering servo

CONTROL: Connect CH3/CH4 from receiver or leave it not connected

When CONTROL is connected to receiver CH3/CH4, the gyro sensitivity is controlled by CH3/CH4 value which could be adjusted on the transmitter. When the VR is on the middle position, both LED are off. Turn the VR to left or right could change the servo forward or deteriorate status.

When CONTROL is not connected, the gyro sensitivity is controlled by the VR. When the VR is on the middle position, both LED are off. Turn the VR from middle position to left, the red LED will flash. The servo is in forward status and the gyro sensitivity is controlled by VR position. Turn the VR from middle position to right, the blue LED will flash. The servo is in deteriorate status and the gyro sensitivity is controlled by VR position.

Package Included:

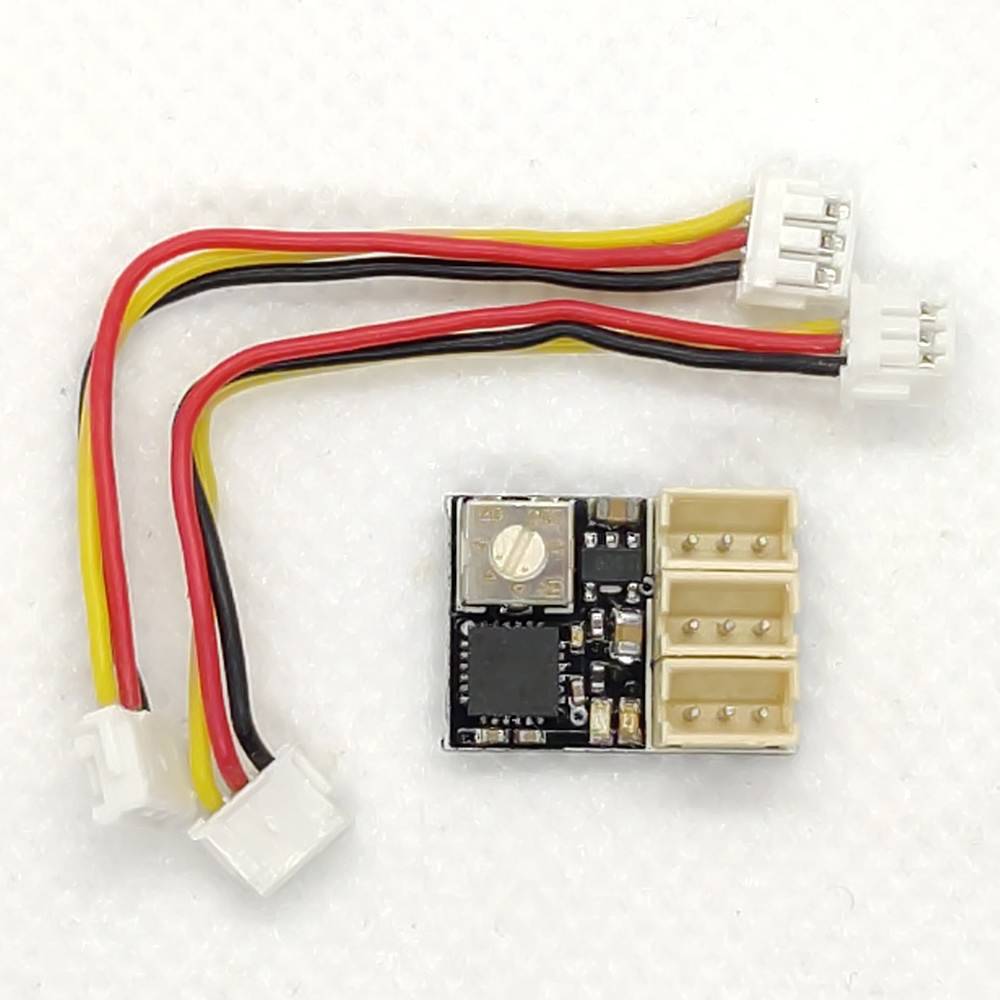

1 x GYRO

2 x 1.5mm 3P JST plug with high quality silicon cable

Wire Connectionï¼š
