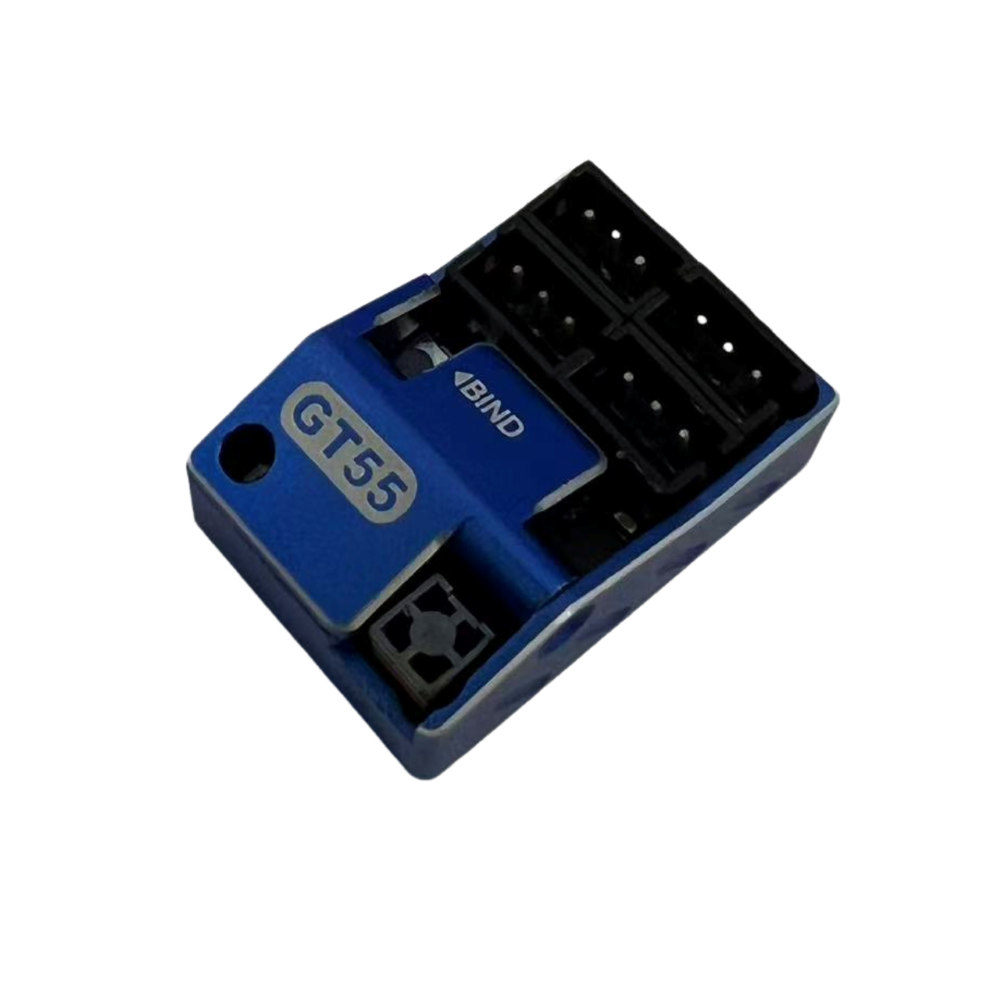

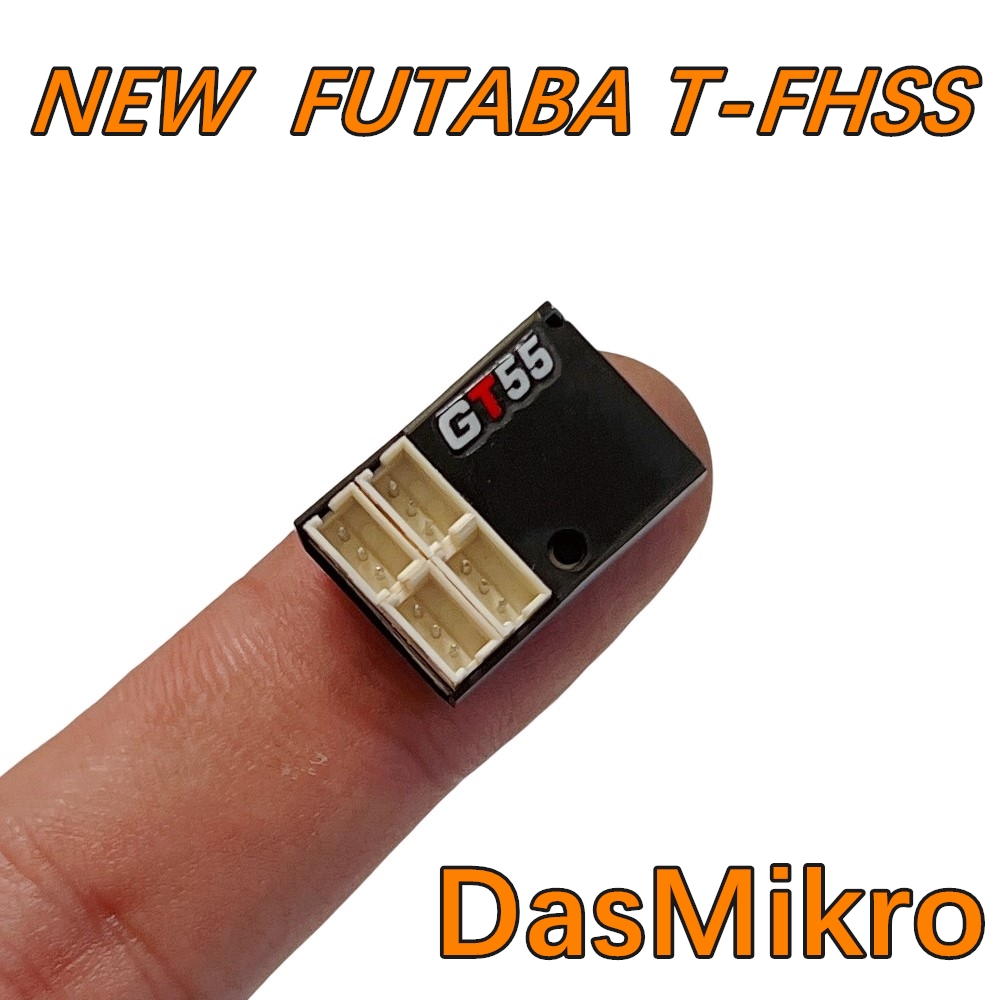

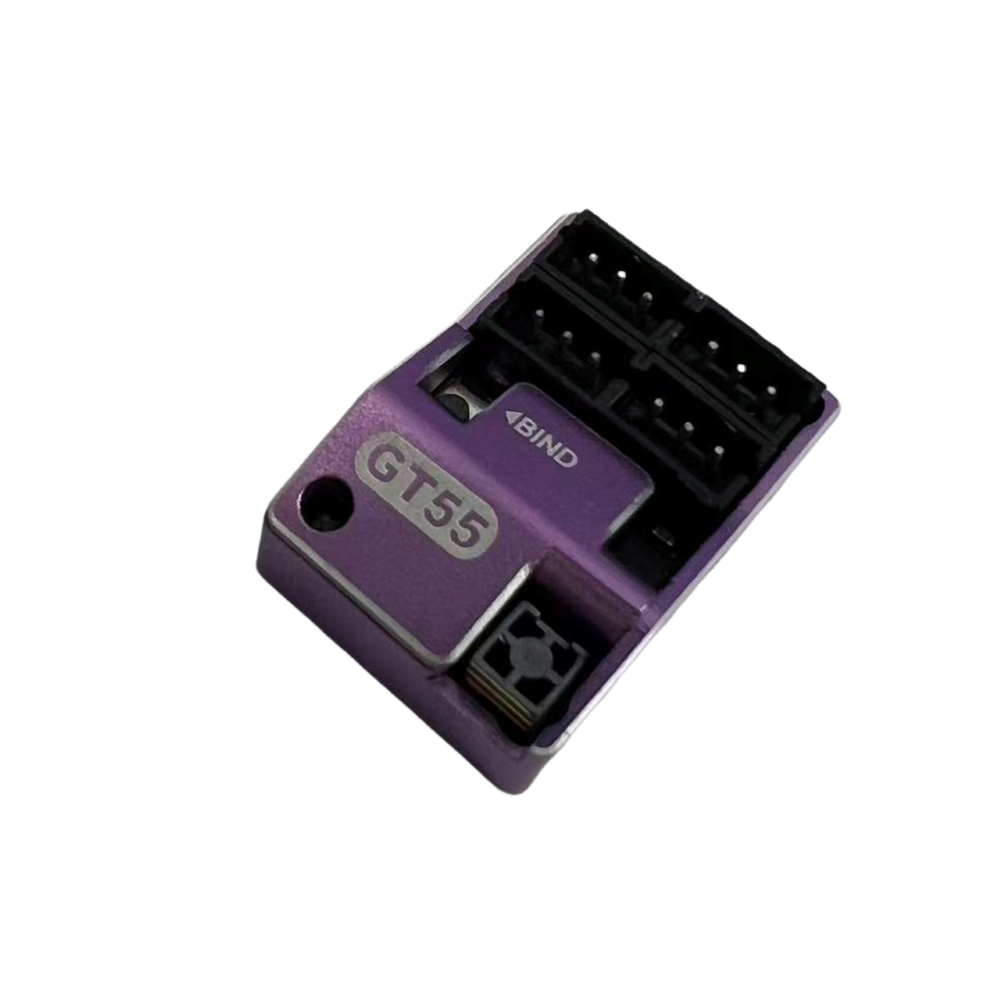

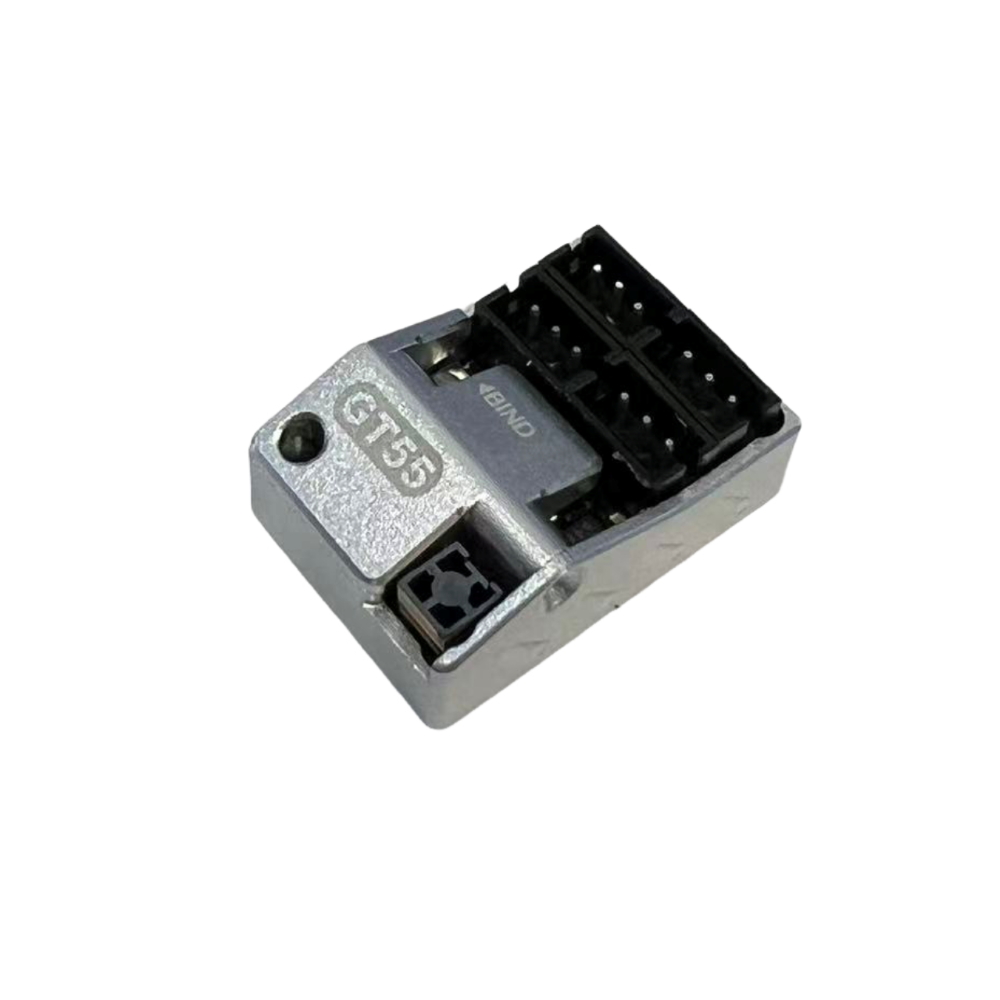

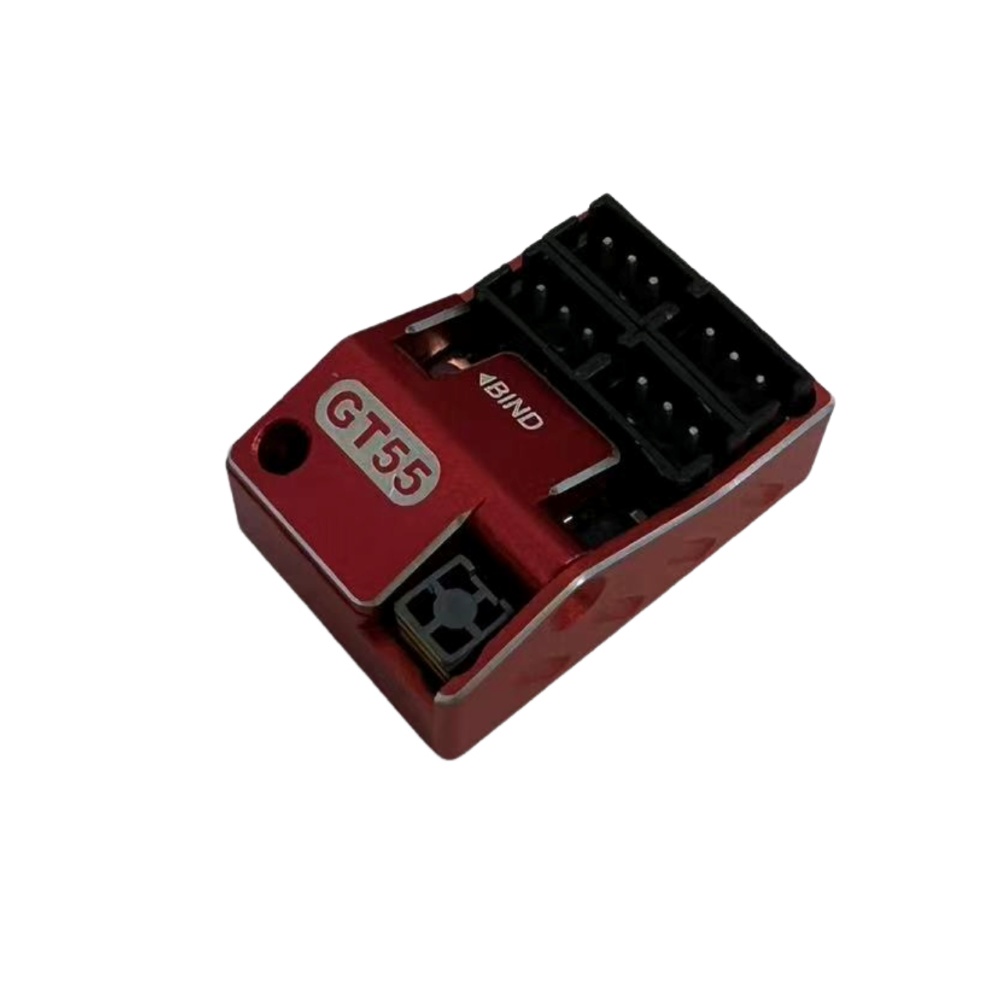

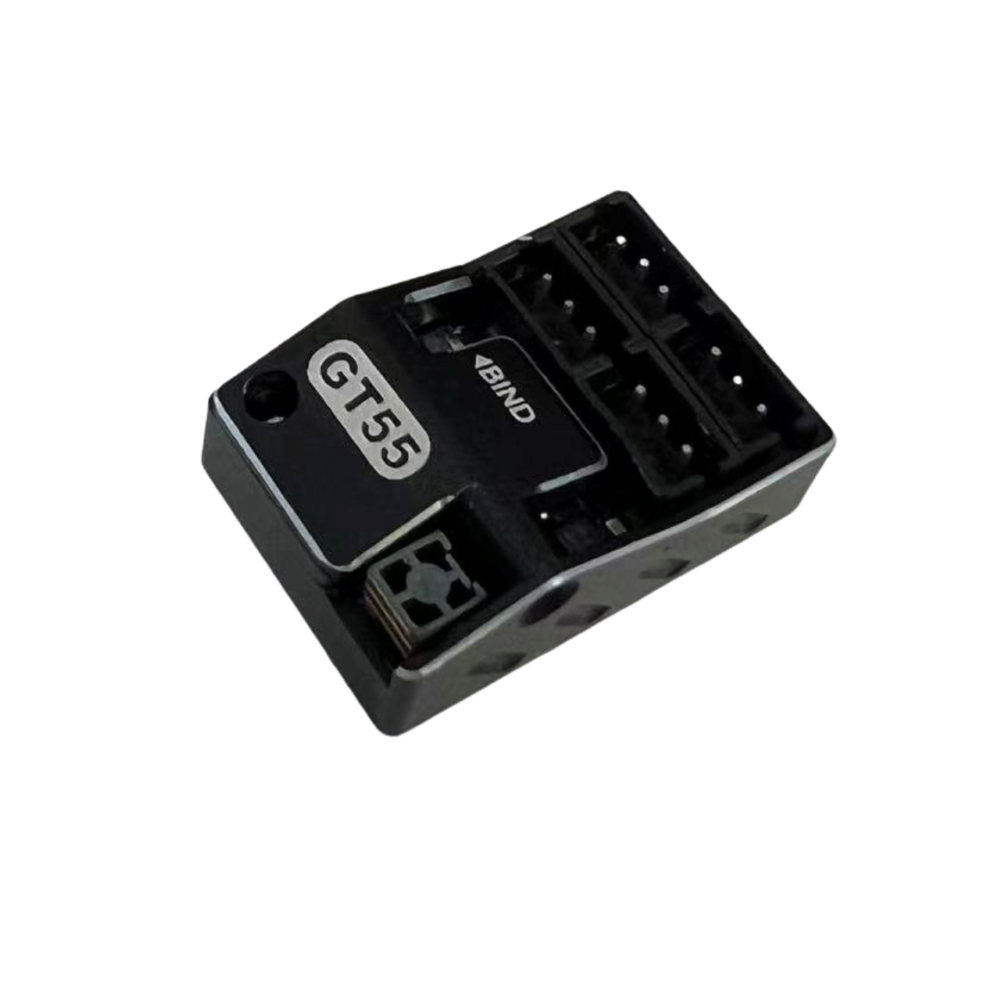

FUTABA T-FHSS NANO 4CH TOWER ANTENNA RECEIVER
Binding Instructions for T-FHSS System
1. Place the transmitter and receiver within 0.3 meters (1 foot) of each other.
2. Set the transmitter to T-FHSS signal mode, but do not activate the binding process yet.
3. Turn on the ESC (Electronic Speed Controller) power switch. The receiver’s LED will remain solid.
4. Press and hold the BIND button on the receiver until the LED starts flashing, then release it.
5. Immediately activate the T-FHSS signal binding mode on the transmitter. Wait until the LED on the receiver turns green.
6. The binding process is now complete, and the receiver is ready for use.

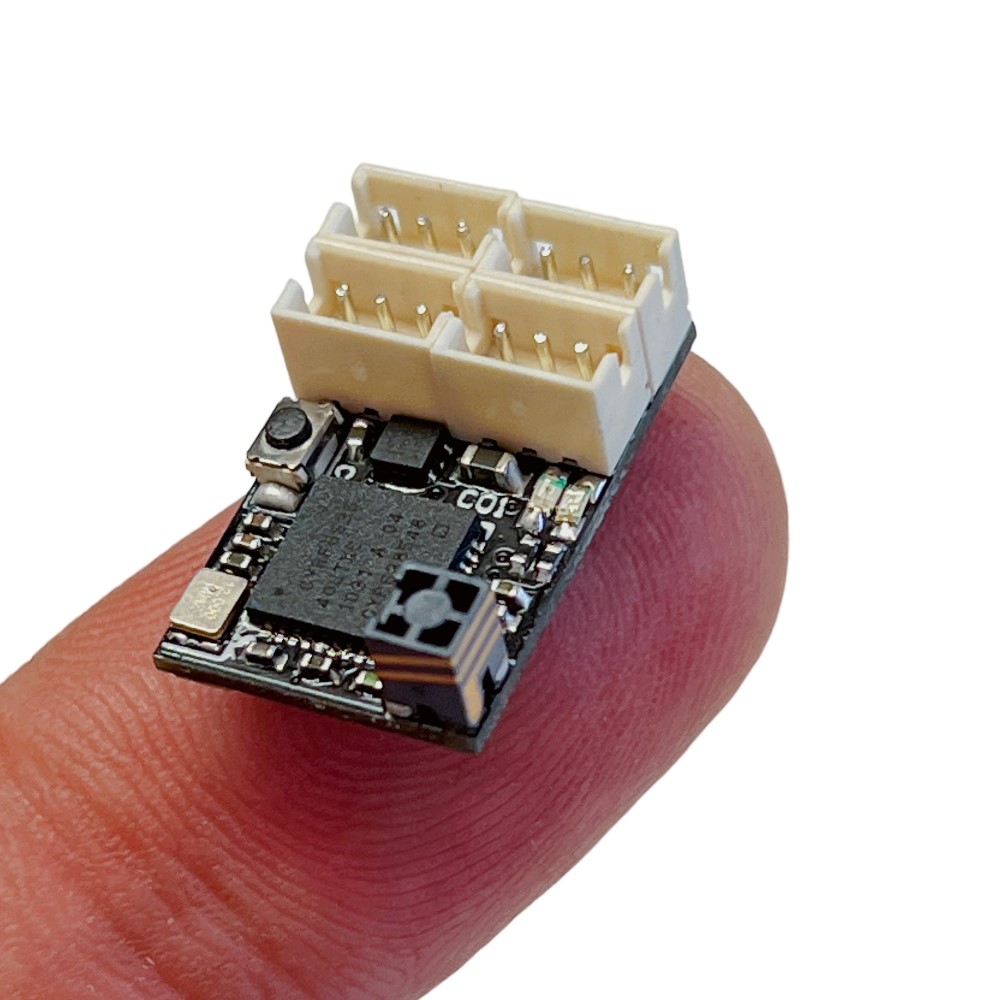

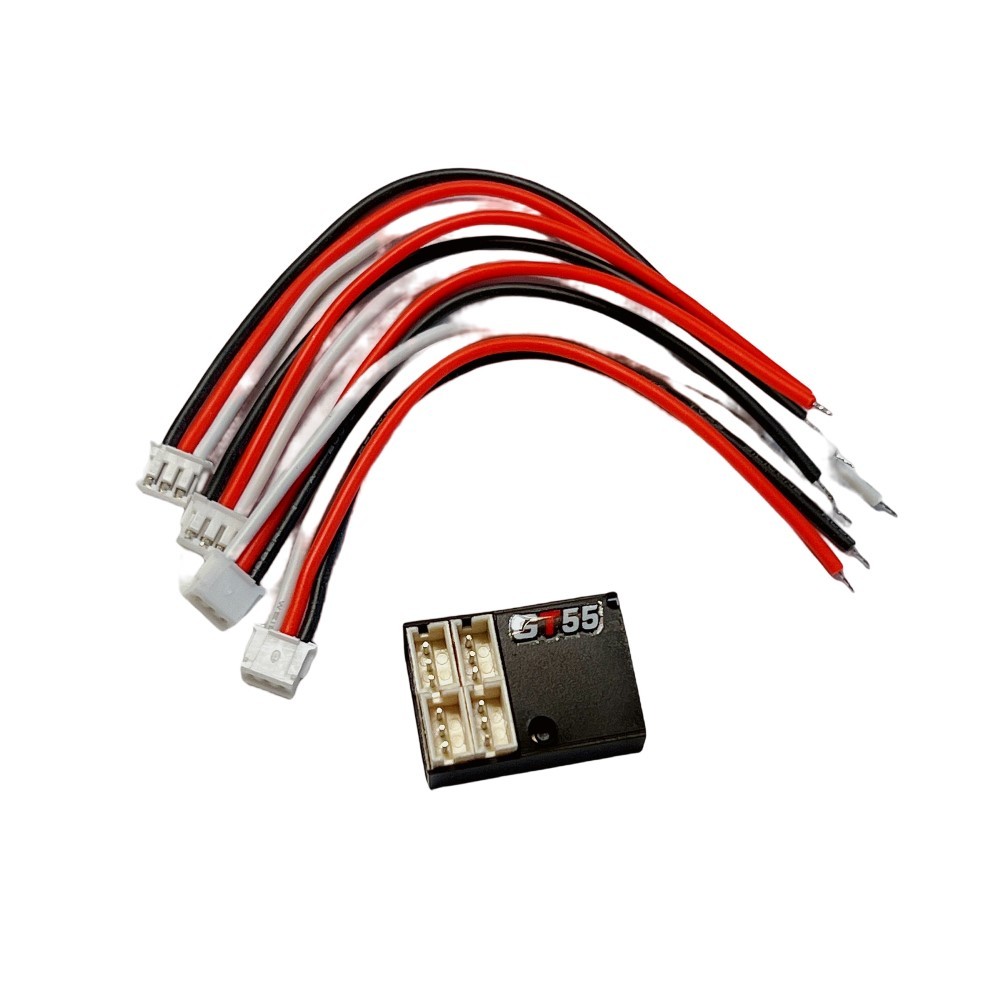

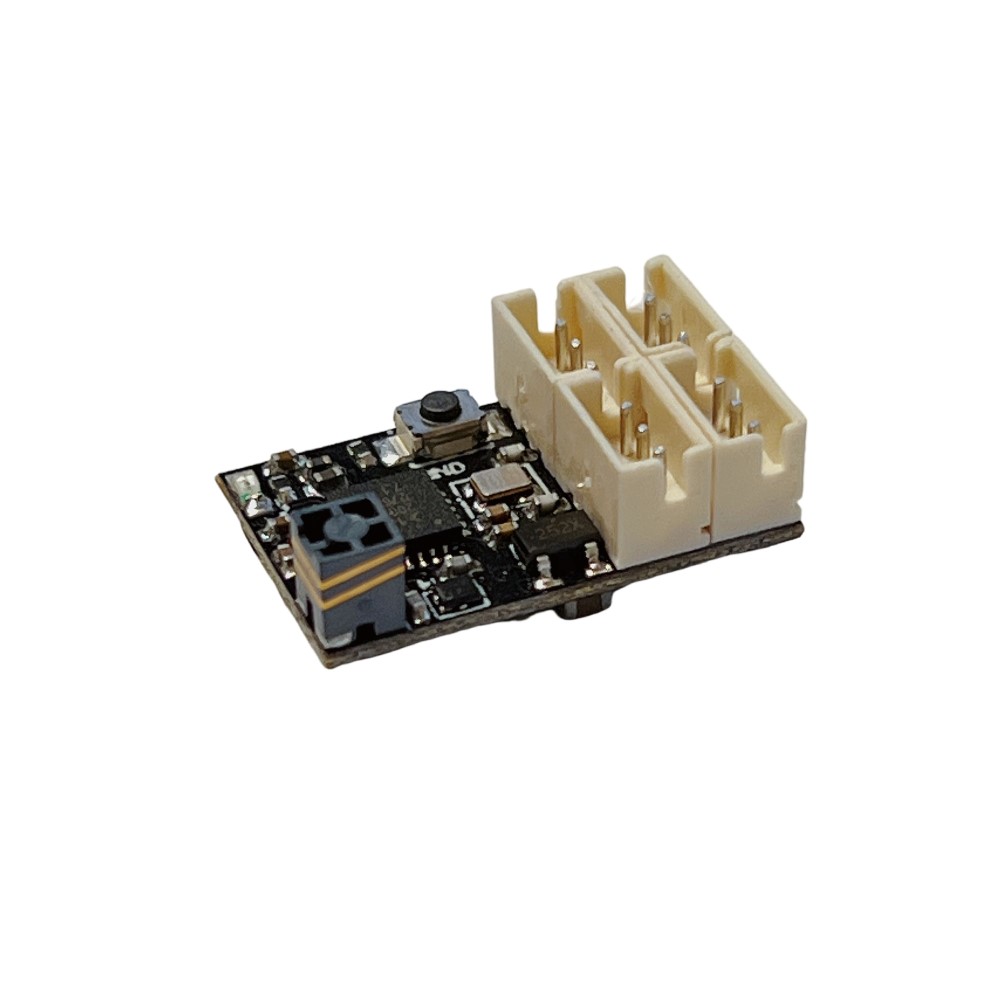

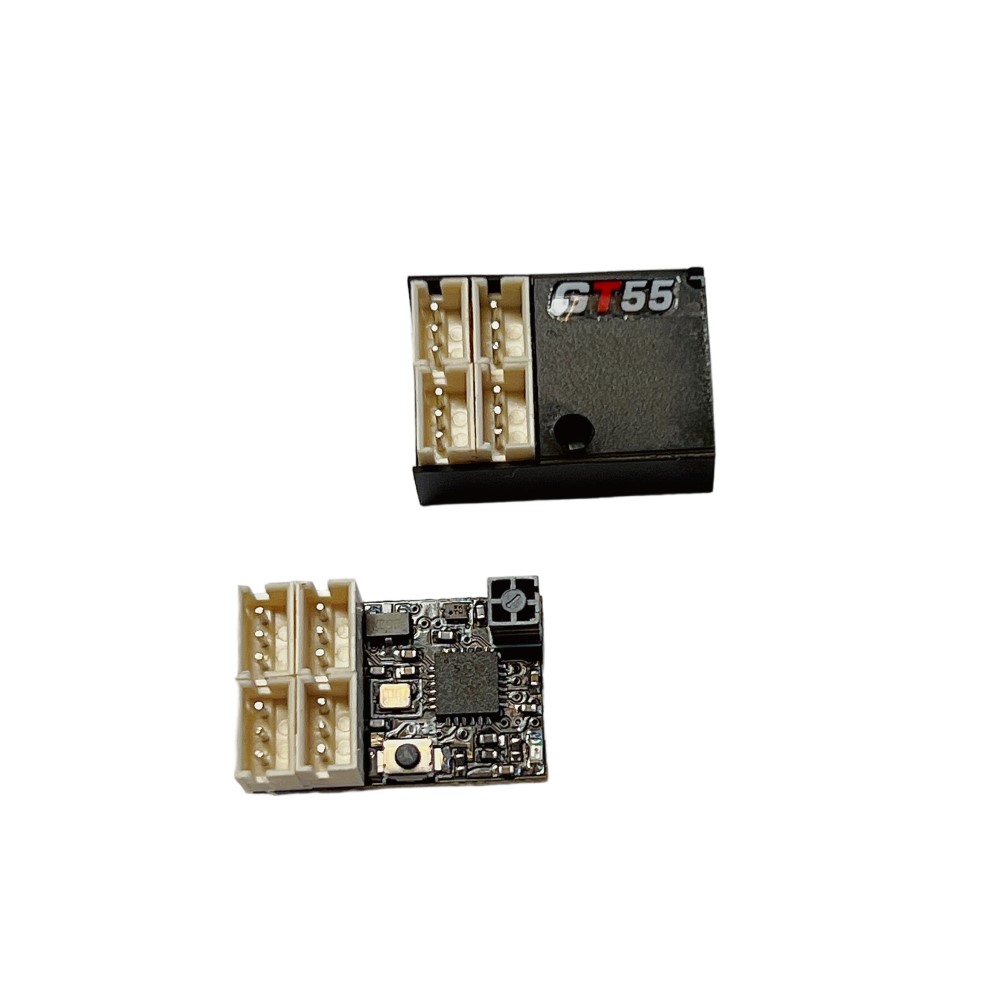

Description:This RC receiver unit is FUTABA T-FHSS compatible. It offers full 4-channel support in ultra-light weight and micro size. Features:1. Futaba 2.4GHz T-FHSS compatible2. High performance CPU enhance precision control feeling3. 4 channel support4. Nano size (19mm x 12mm)5. Added failsafe function6. Operating Voltage 3.5V - 12V7. Weight: 3g Normal mode / High Speed mode:The‘Normal mode’accepts any type of servos or the peripheral. The "High Speed mode" only accepts the digital servos, including BLS series, and most peripheral equipment such as the brushless ESCs. Please pay special attention to the information contained within this manual and transmitter manual in order to have a pleasant running experience. Compatible Transmitters:FUTABA 10PXFUTABA 4PMFUTABA 7PXRFUTABA 7PXRFUTABA 4PXRFUTABA 4PXFUTABA 4PLSFUTABA 4PLFUTABA 7XCFUTABA 4GRS Package Included:1 x Receiver4 x 1.5mm 3P JST plug with high quality silicon cable Wire Connection：
