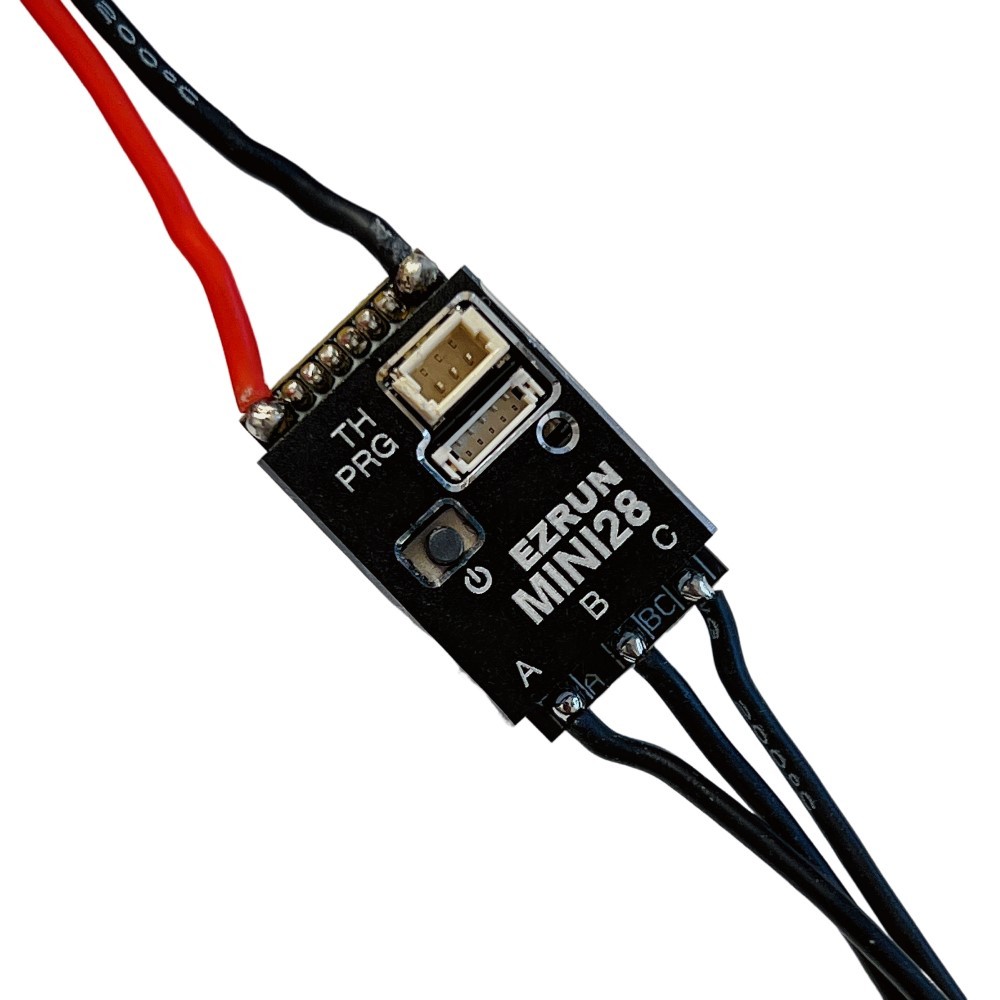

HOBBYWING EZRUN MINI28 Sensored Brushless ESC For MINIZ 1/24 1/28 #30101300(Black)

Name: HOBBYWING EZRUN MINI28 Sensored Brushless ESC For MINIZ 1/24 1/28 #30101300(Black)
Brand: GT55racing
SKU: 30101300(Black)
Price: 79.9 USD
Availability: InStock

SKU: 30101300(Black)

0.0 (0)

94 Sold

$79.90

Update product information
HOBBYWING EZRUN MINI28 Sensored Brushless ESC For Compatible with most 1/28 Sensored motors

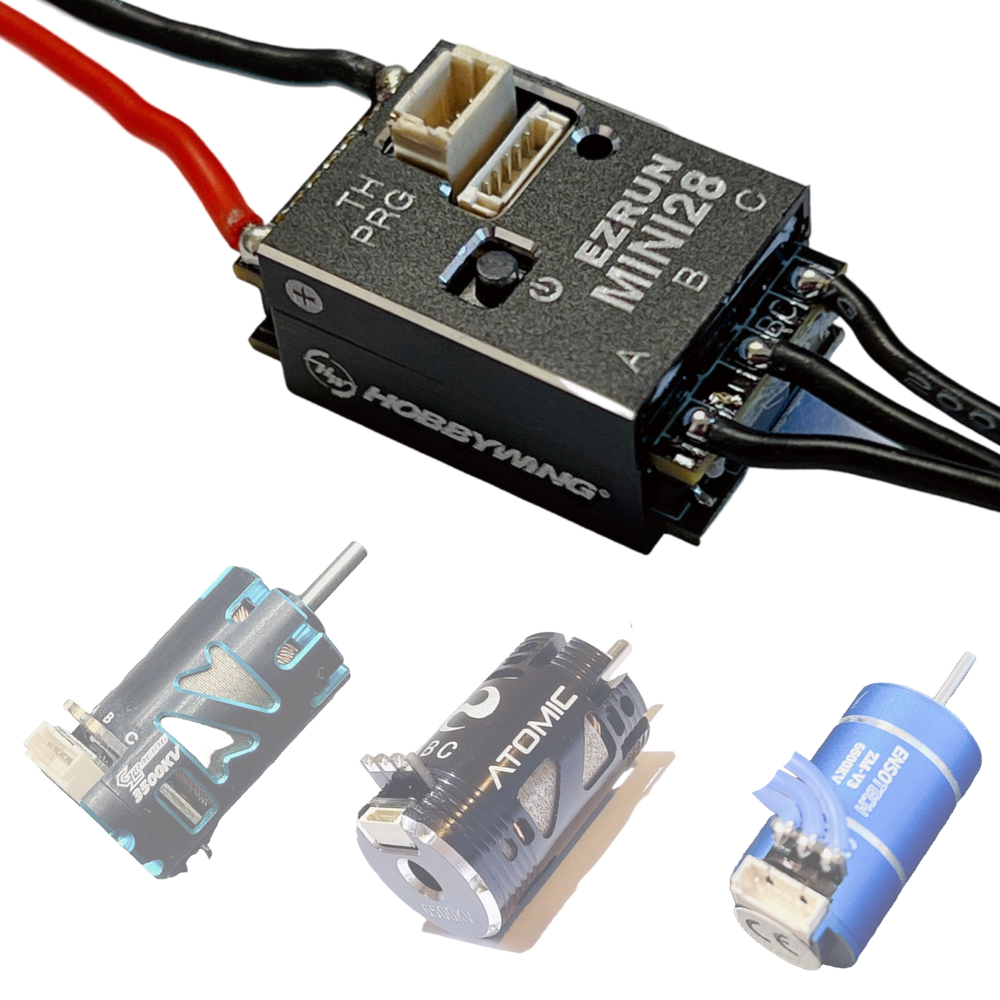

We tested three brands of motors: GL Racing, ATOMIC and Ensotech V3
It contains two sensored motor induction wires
In order to adapt

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (5)

1/1

Description

Product manual link
https://www.hobbywing.com/products/enpdf/EZRUNMINI28en.pdf

Compatible with most 1/28 Sensored motors
We tested three brands of motors: GL Racing, ATOMIC and Ensotech V3
It contains two sensored motor induction wires
In order to adapt to different motor specifications on the market
Specifications

Product Name: EZRUN MINI28
Product Number: 30101300(Black)

Type
Scale: 1/28th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Waterproof: No

Specifications
Cont./Peak Current: 30A/80A
Input Voltage: 2S Lipo
BEC Output: 6V/7.4V @Max 3.5A

Wires & Connectors
Input Wires:Black-20AWG-55mm*1 Red-20AWG-55mm*1
Output Wires:Black-22AWG-80mm*3
(Note: All the wire length above is the original length not the length you see from the outside.)

ESC Programing via
SET Button on ESC: Not Supported
LED Program Box: Not Supported
LCD G2 Program Box: Supported
OTA Programmer: Supported
Program Port: Throttle Wire

Firmware
Firmware Upgrade: Supported

Size & Weight
Size:22.7x14.2x11.8mm
Weight:5g (without wires)

Applications
Motors: 1626 Size Motors
Vehicles:1/28,1/27,1/24
