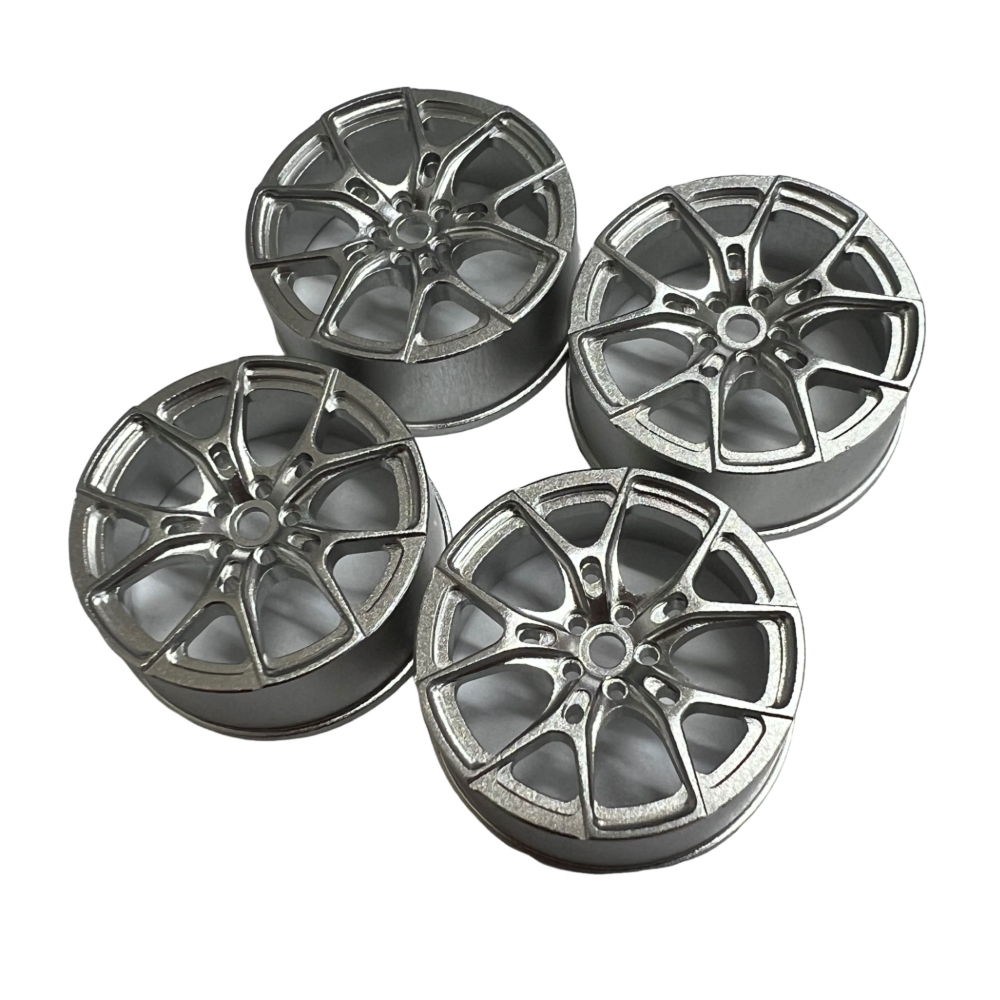

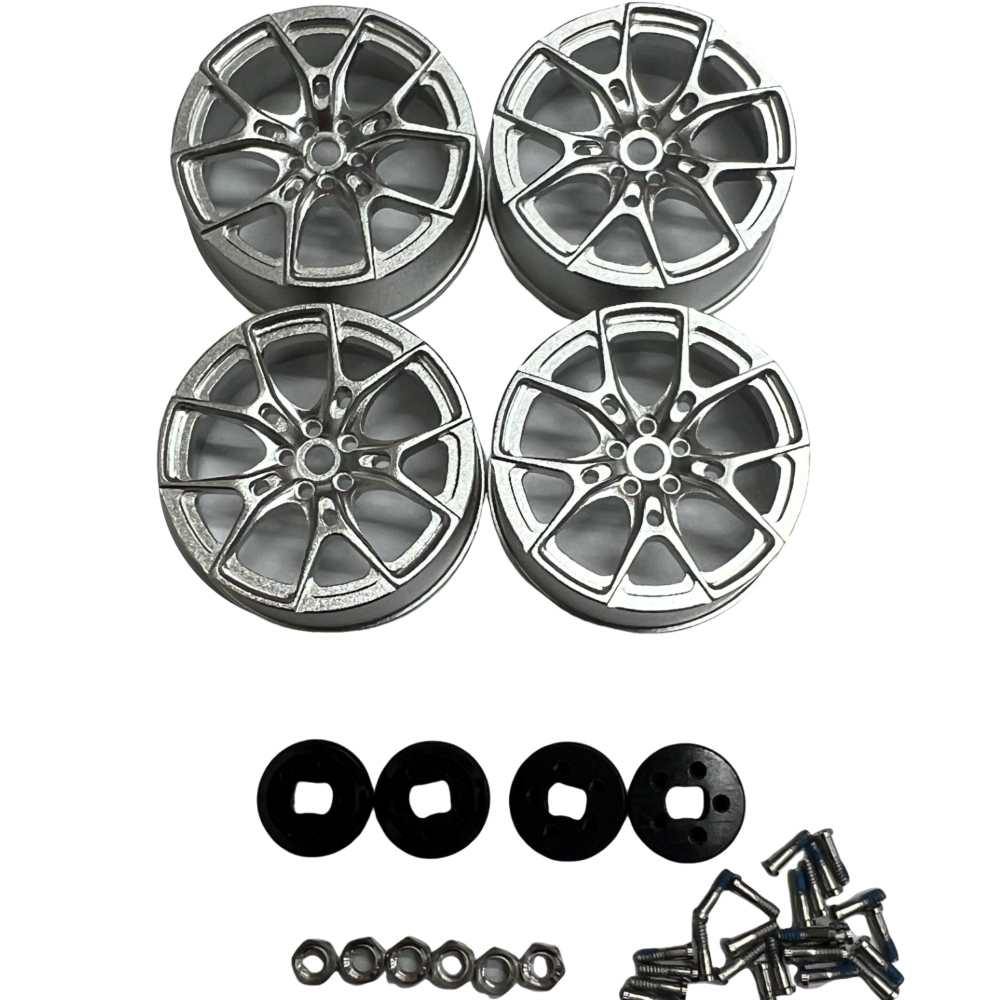

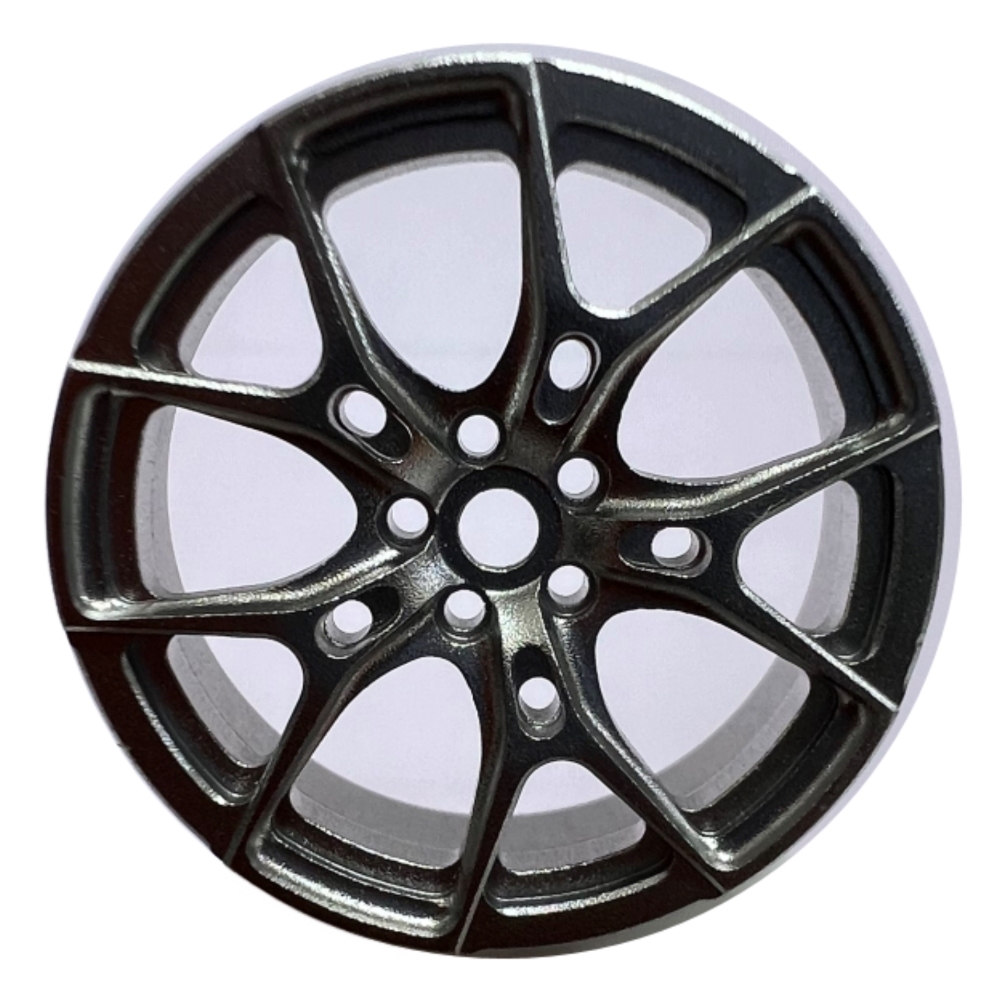

MA RACING 1/24 Metal AWD Simulation Wheel Hub (OD 22mm W 9.5mm) 4pcs for D24 DLR8 DMA

SKU:
0.0 (0)
52 Sold
$49.90 $0.00
Key Features:
For D24 DLR8 DMA

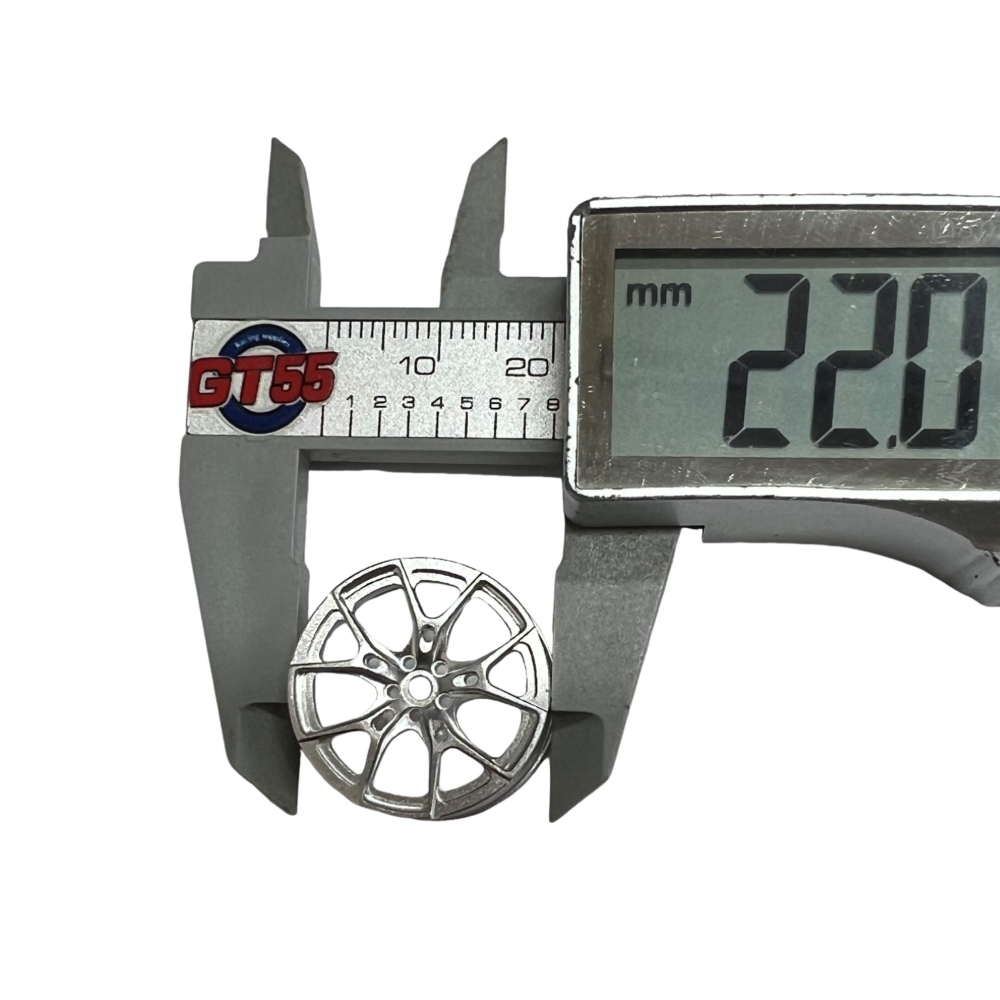

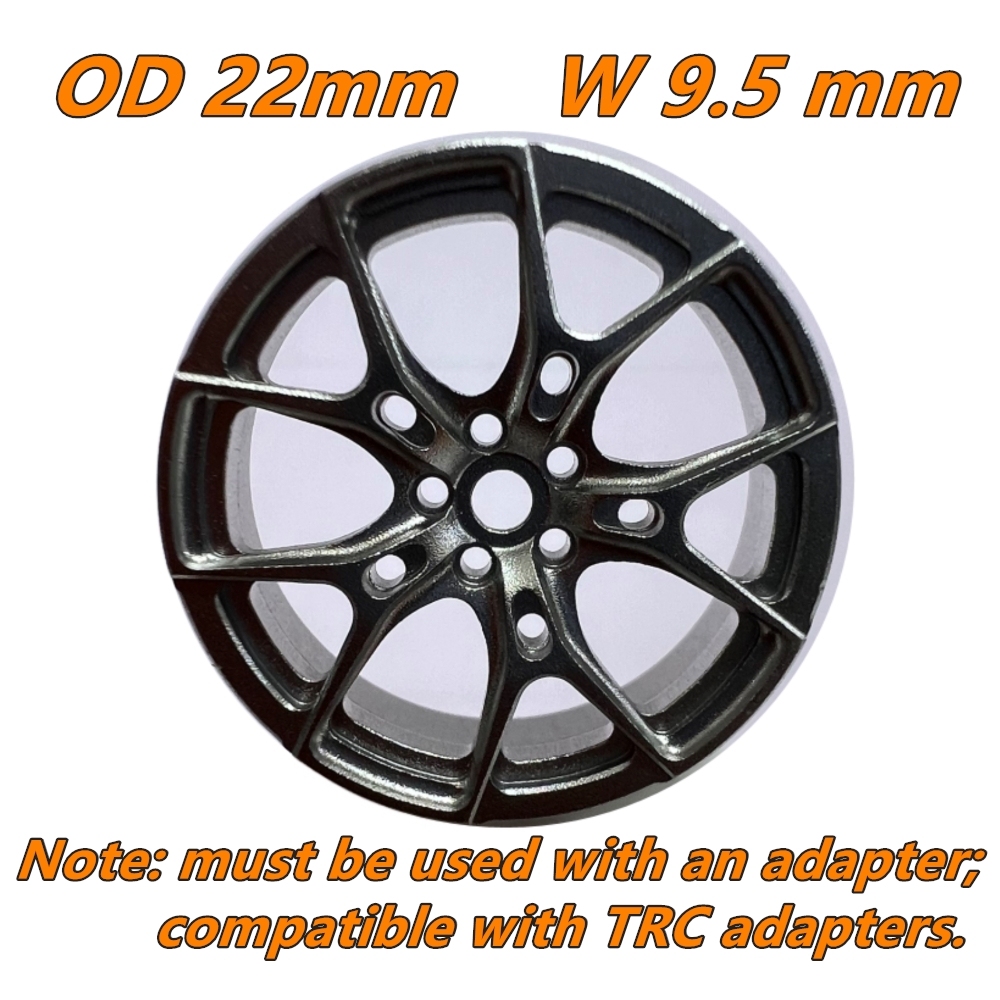

Wheel hub diameter: 22mm

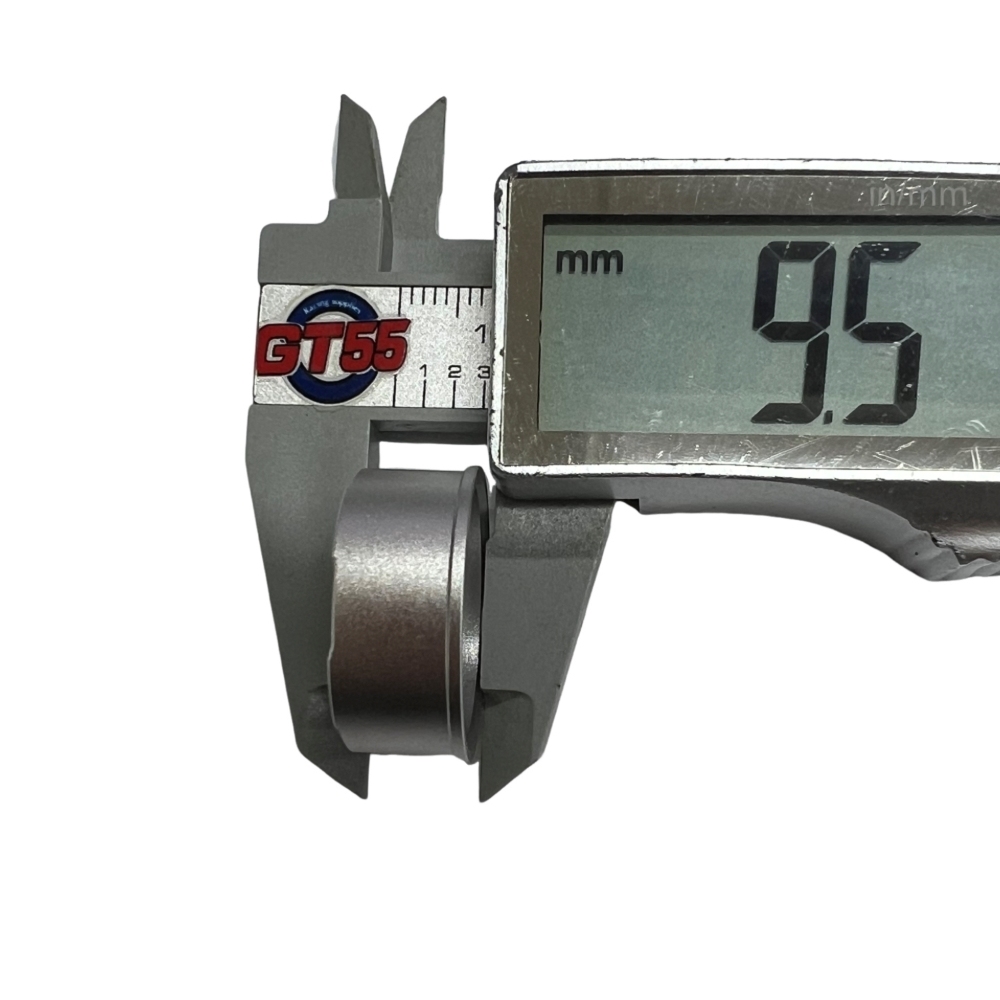

All 4 Wheels width: 9.5mm
Suitable for 22mm narrow tires
Offset: 1 when installed with MA Racing adapter

Note:

The hub must be used with an adapter;
compatible with TRC adapters.
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • model:
    Wheel with adapter
    Wheel with adapter
    Please select the information you wantX
Quantity:
0 in stock
  • MA RACING 1/24 Metal AWD Simulation Wheel Hub (OD 22mm W 9.5mm) 4pcs for D24 DLR8
  • MA RACING 1/24 Metal AWD Simulation Wheel Hub (OD 22mm W 9.5mm) 4pcs for D24 DLR8
  • MA RACING 1/24 Metal AWD Simulation Wheel Hub (OD 22mm W 9.5mm) 4pcs for D24 DLR8
  • MA RACING 1/24 Metal AWD Simulation Wheel Hub (OD 22mm W 9.5mm) 4pcs for D24 DLR8
  • MA RACING Metal AWD Simulation Wheel Hub (OD 22mm W 9.5mm) 4pcs for D24 DLR8
  • MA RACING Metal AWD Simulation Wheel Hub (OD 22mm W 9.5mm) 4pcs for D24 DLR8
  • MA RACING Metal AWD Simulation Wheel Hub (OD 22mm W 9.5mm) 4pcs for D24 DLR8
  • MA RACING Metal AWD Simulation Wheel Hub (OD 22mm W 9.5mm) 4pcs for D24 DLR8
  • MA RACING 1/24 Metal AWD Simulation Wheel Hub (OD 22mm W 9.5mm) 4pcs for D24 DLR8
  • MA RACING 1/24 Metal AWD Simulation Wheel Hub (OD 22mm W 9.5mm) 4pcs for D24 DLR8
  • MA RACING 1/24 Metal AWD Simulation Wheel Hub (OD 22mm W 9.5mm) 4pcs for D24 DLR8
  • MA RACING 1/24 Metal AWD Simulation Wheel Hub (OD 22mm W 9.5mm) 4pcs for D24 DLR8
  • MA RACING Metal AWD Simulation Wheel Hub (OD 22mm W 9.5mm) 4pcs for D24 DLR8
  • MA RACING Metal AWD Simulation Wheel Hub (OD 22mm W 9.5mm) 4pcs for D24 DLR8
  • MA RACING Metal AWD Simulation Wheel Hub (OD 22mm W 9.5mm) 4pcs for D24 DLR8
  • MA RACING Metal AWD Simulation Wheel Hub (OD 22mm W 9.5mm) 4pcs for D24 DLR8
1/1
  • MA RACING 1/24 Metal AWD Simulation Wheel Hub (OD 22mm W 9.5mm) 4pcs for D24 DLR8
  • MA RACING 1/24 Metal AWD Simulation Wheel Hub (OD 22mm W 9.5mm) 4pcs for D24 DLR8
  • MA RACING 1/24 Metal AWD Simulation Wheel Hub (OD 22mm W 9.5mm) 4pcs for D24 DLR8
  • MA RACING 1/24 Metal AWD Simulation Wheel Hub (OD 22mm W 9.5mm) 4pcs for D24 DLR8
  • MA RACING Metal AWD Simulation Wheel Hub (OD 22mm W 9.5mm) 4pcs for D24 DLR8
  • MA RACING Metal AWD Simulation Wheel Hub (OD 22mm W 9.5mm) 4pcs for D24 DLR8
  • MA RACING Metal AWD Simulation Wheel Hub (OD 22mm W 9.5mm) 4pcs for D24 DLR8
  • MA RACING Metal AWD Simulation Wheel Hub (OD 22mm W 9.5mm) 4pcs for D24 DLR8
Frequently Bought Together
more
Frequently Bought Together
  • Description
Key Features:
For D24 DLR8 DMA
Wheel hub diameter: 22mm
All 4 Wheels width: 9.5mm
Suitable for 22mm narrow tires
Offset: 1 when installed with MA Racing adapter

Note:

The hub must be used with an adapter;
compatible with TRC adapters.

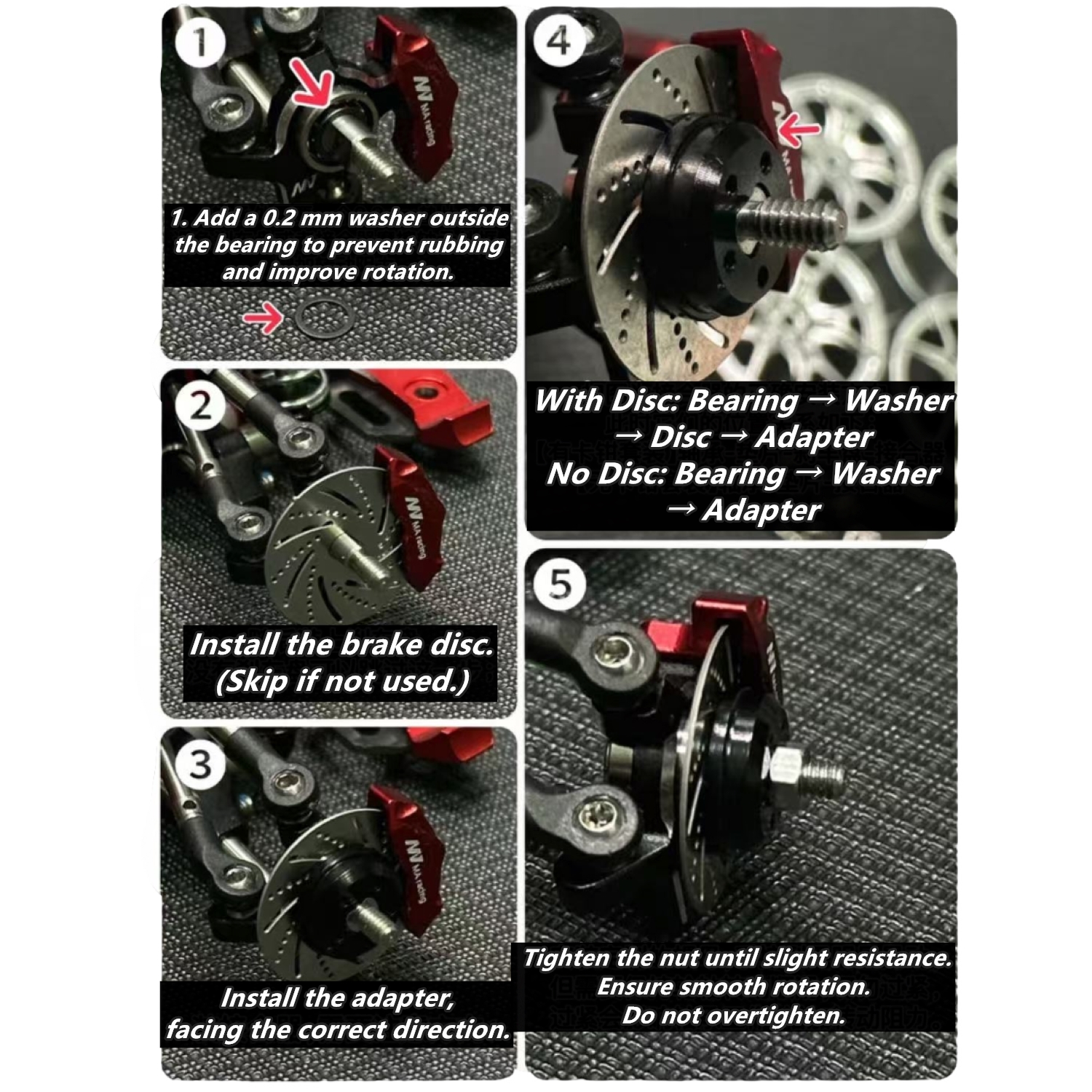

1. Adapter Installation

1️⃣ Add a 0.2mm washer on the outer side of the bearing to prevent rubbing with the brake disc or adapter and to improve smooth rotation.
2️⃣ Install the brake disc.
(Skip this step if your model does not use a brake disc.)
3️⃣ Confirm correct assembly order:

With Disc : Bearing → Washer → Brake Disc → Adapter

Without Disc : Bearing → Washer → Adapter

4️⃣ Tighten the lock nut until you feel slight resistance.
The axle should still rotate freely—do not overtighten.
If it feels tight, loosen slightly to maintain smooth rotation.

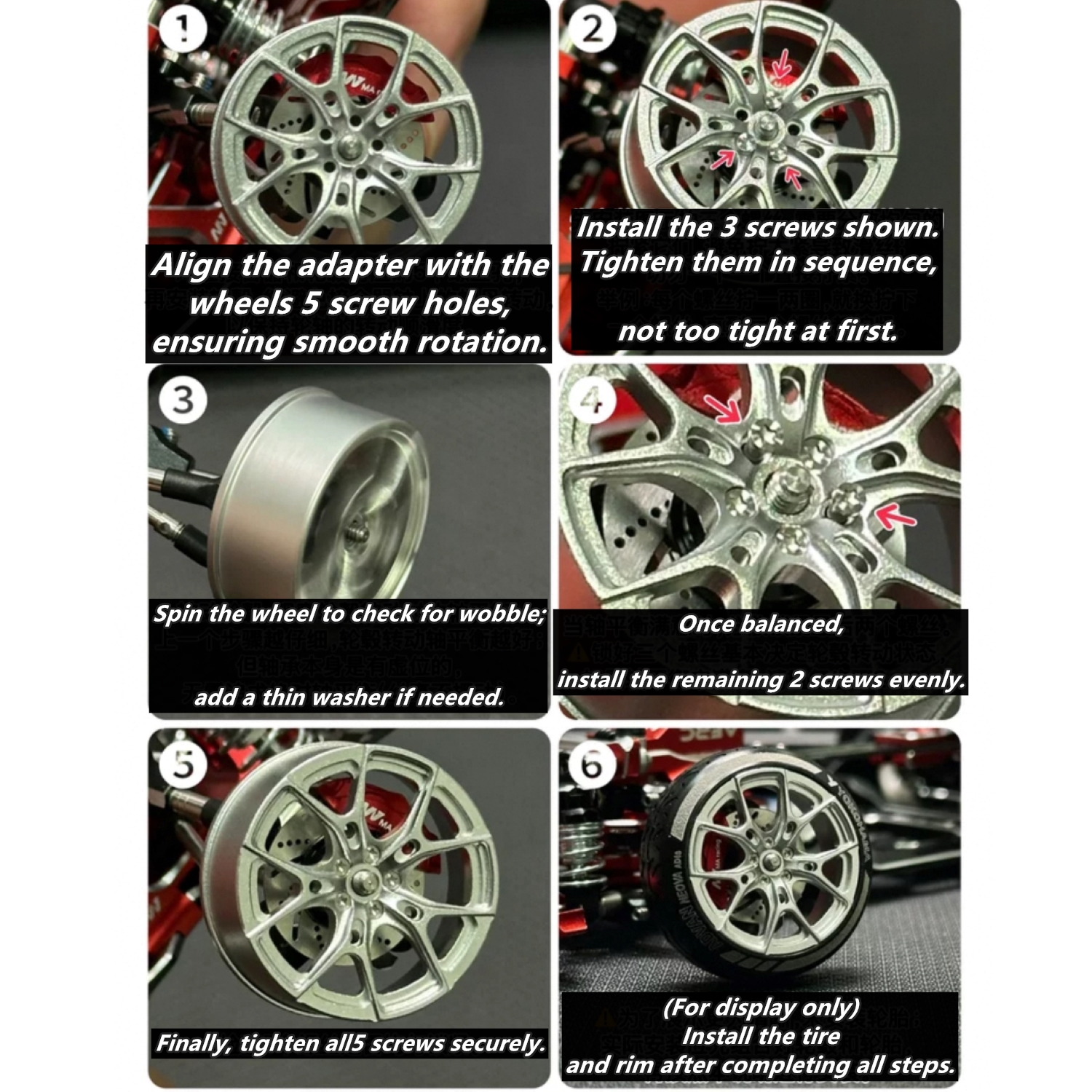

2. Wheel Installation

1️⃣ Align the adapter with the wheel’s 5 screw holes. Ensure it faces the correct direction.
2️⃣ Install the 3 screws shown first, tightening them lightly in sequence.
3️⃣ Spin the wheel. If the axle wobbles, add a thin washer to adjust alignment. The bearing should be firm but rotate freely.
4️⃣ Once balanced, install the remaining 2 screws evenly. If still uneven, repeat steps 2–3.
5️⃣ Tighten all 5 screws evenly until secure.
