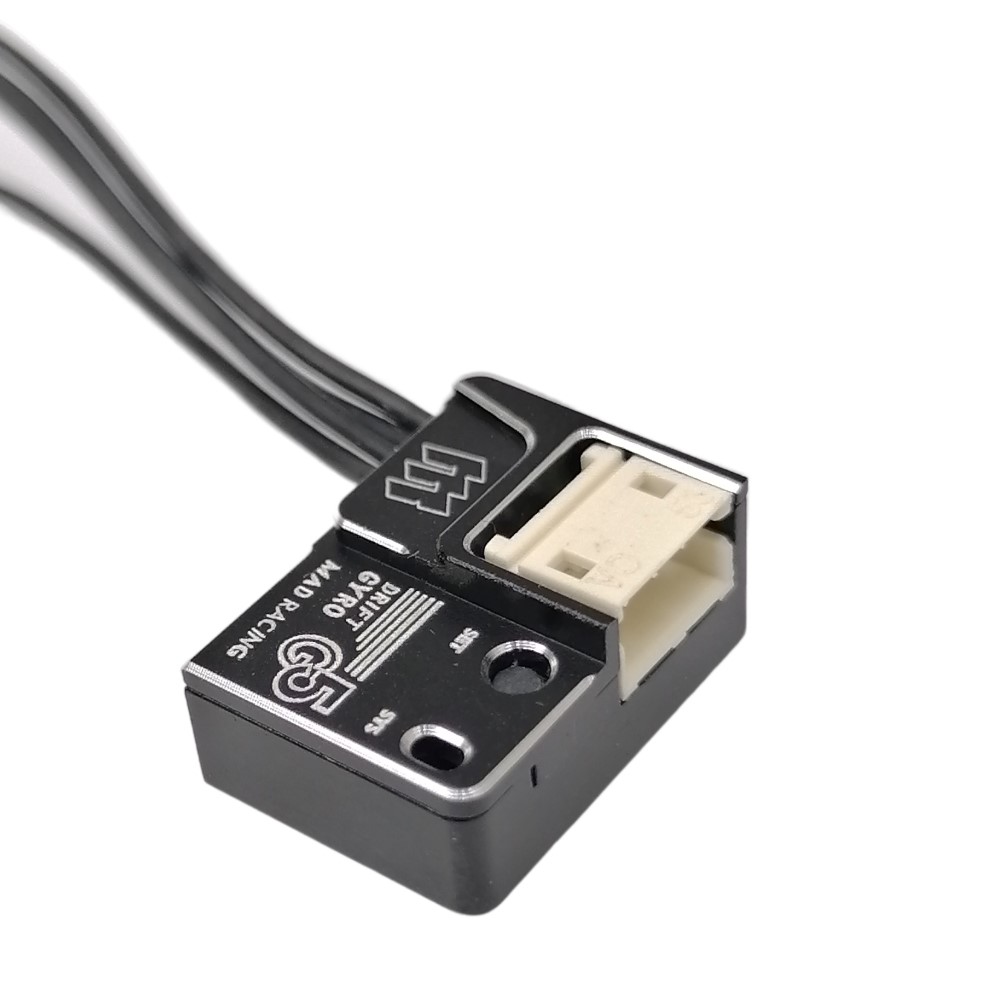

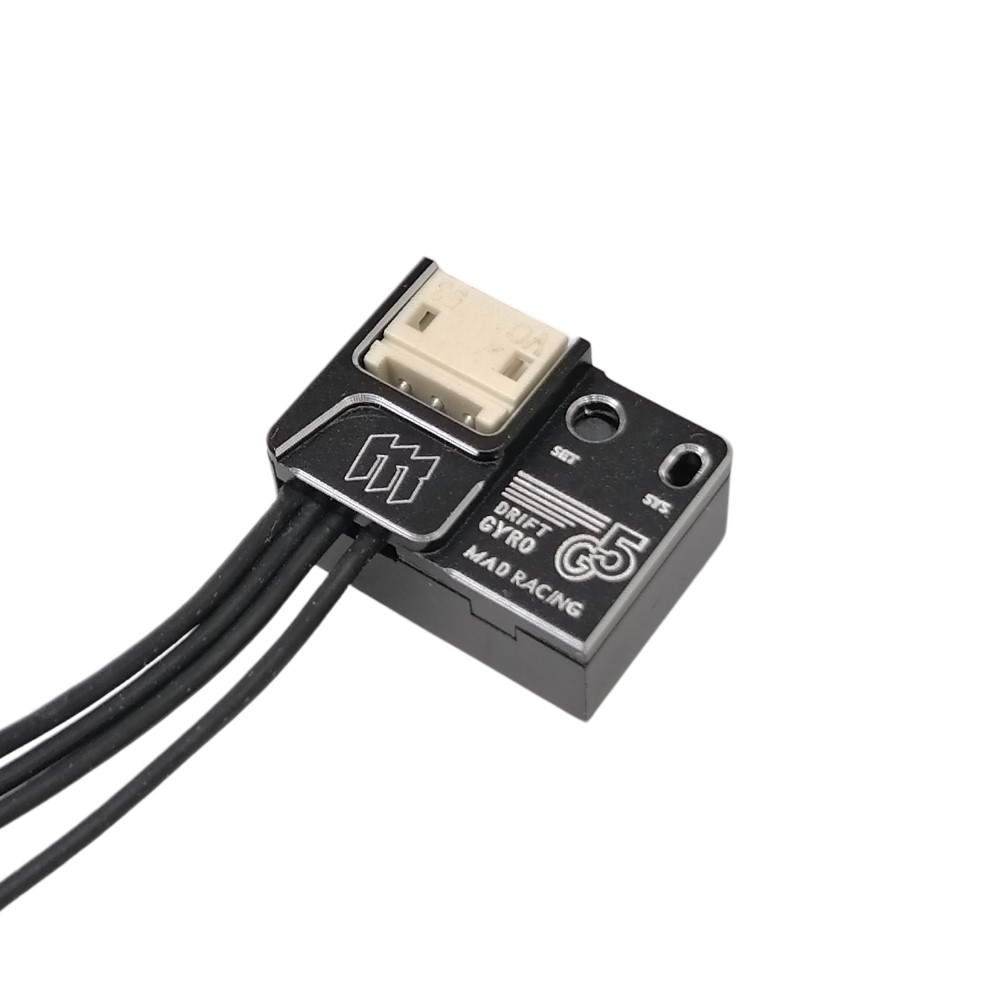

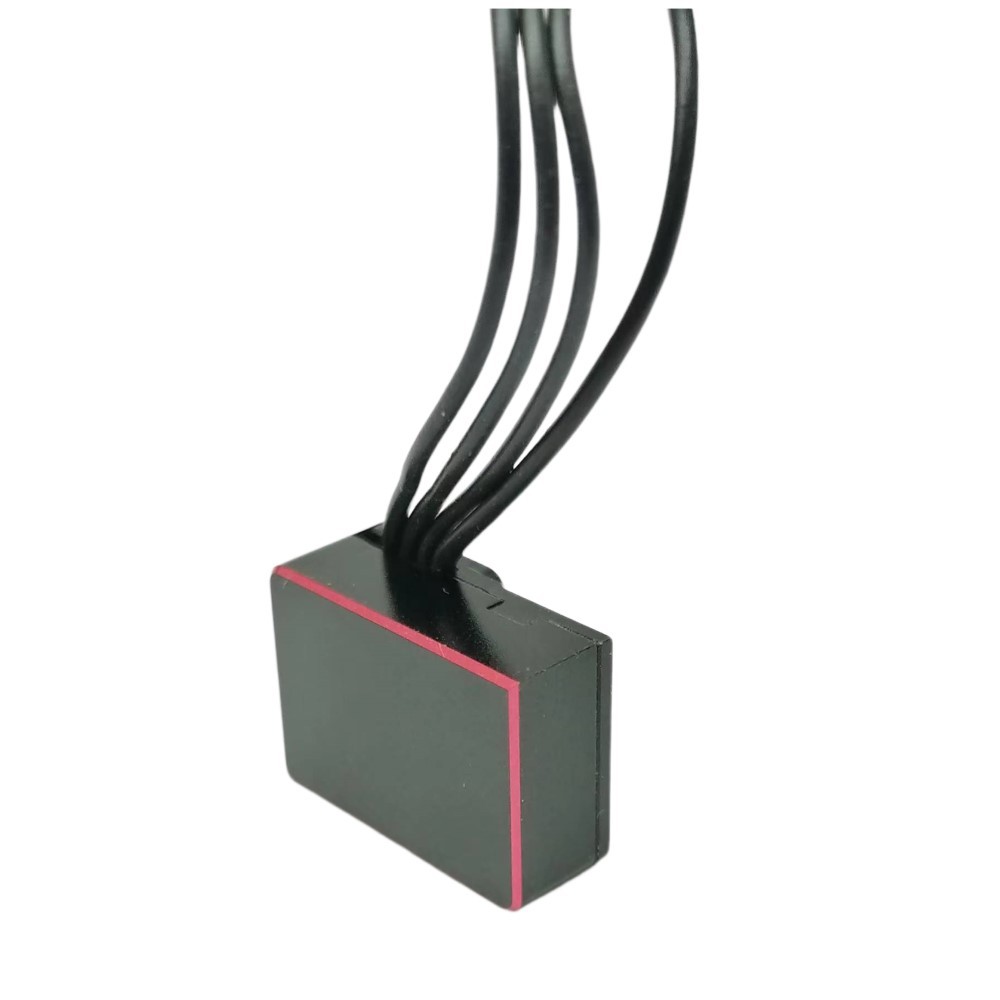

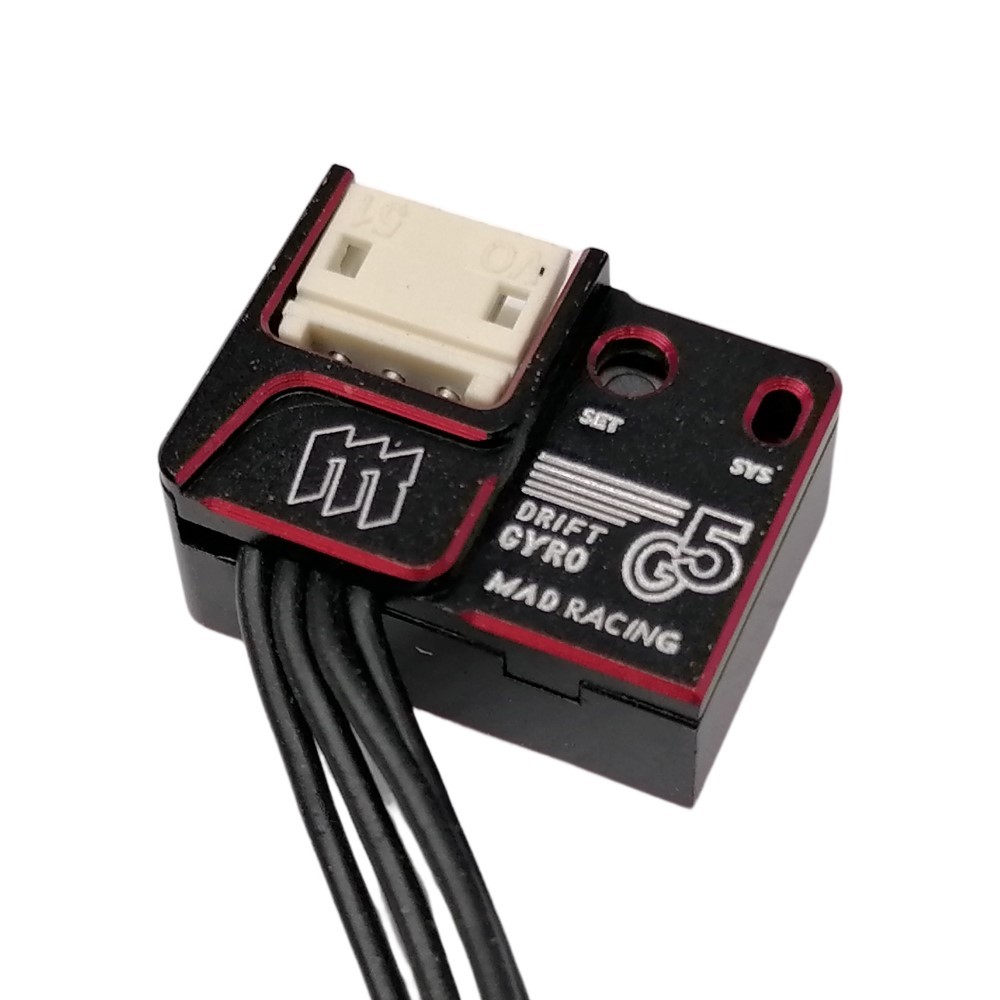

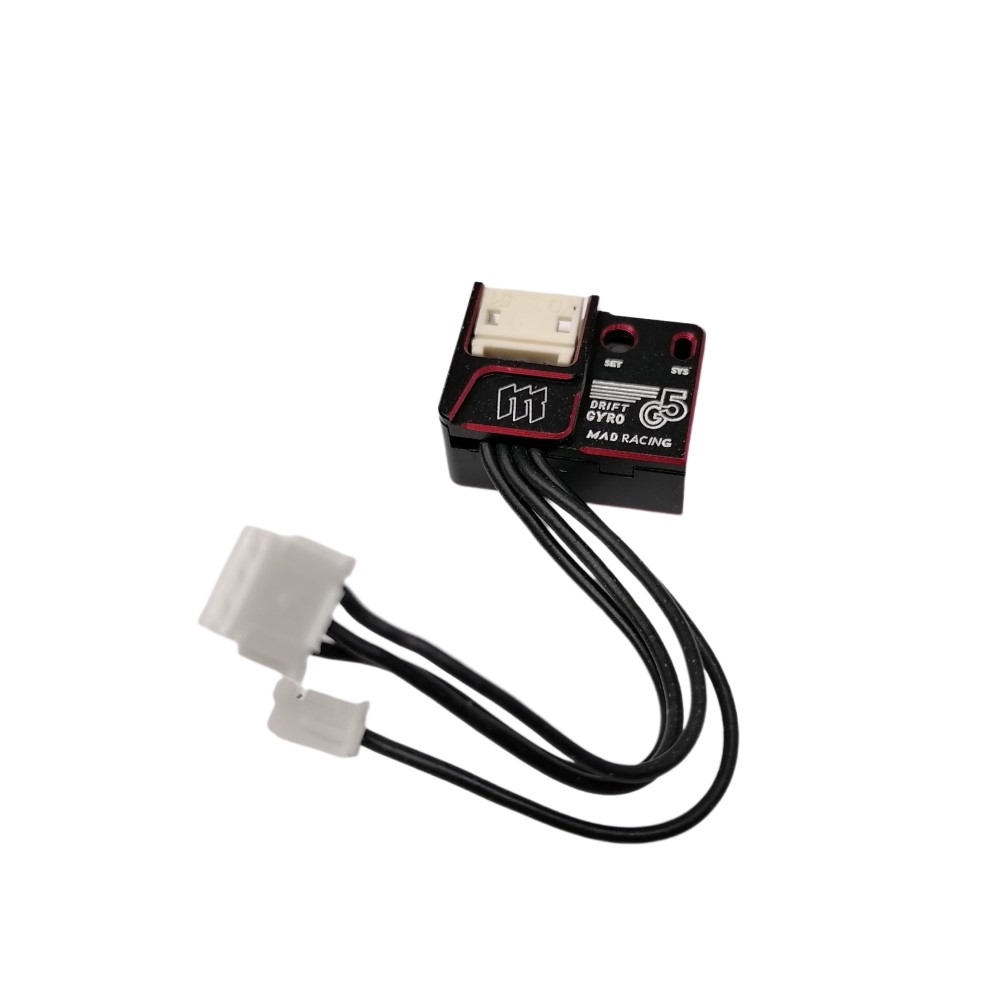

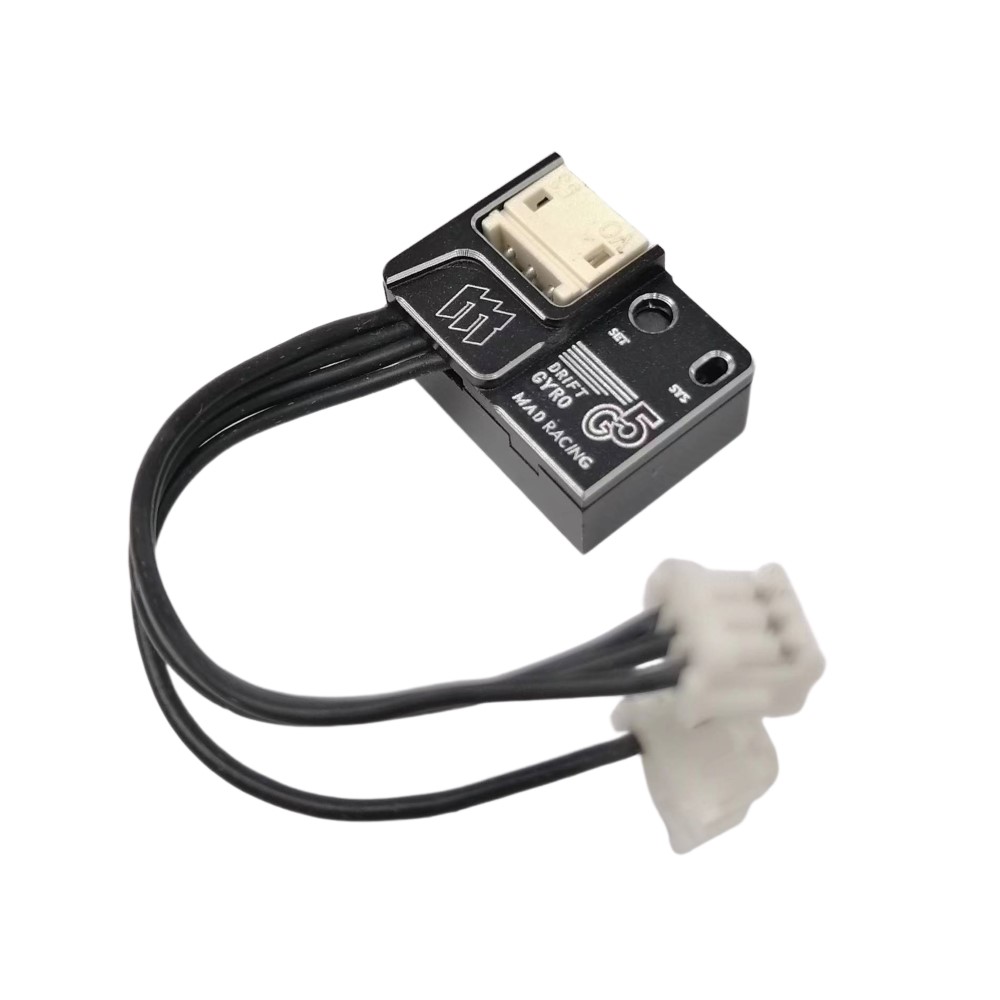

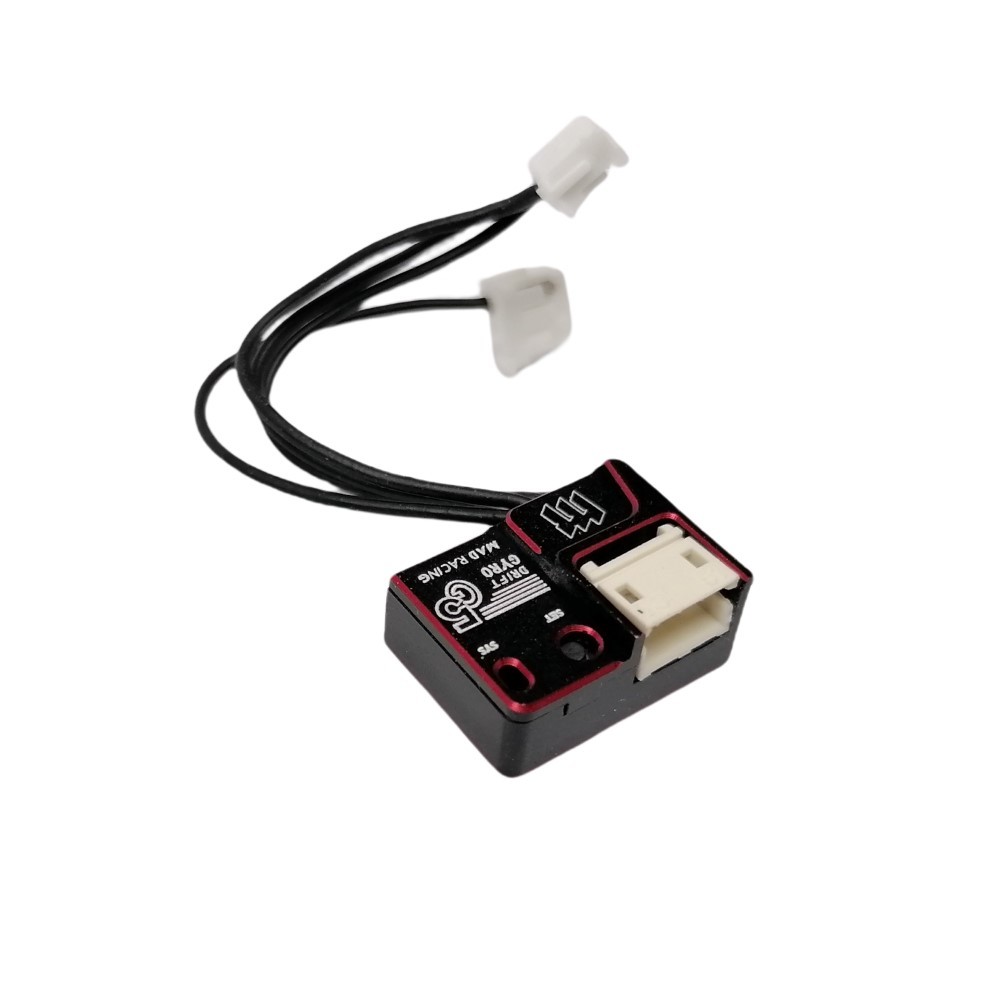

2022 new product Mad Racing produced, super small size gyroscope
On the premise of improving stability, the circuit board is optimized, and the area of the shell is reduced to 14.5mm in length, 10.6mm in width, and 6.9mm in height, and integrates a cable outlet, making the layout clean and convenient. Greatly improves the possibility of open frame electrical layout, reducing the troubles of players' electrical layout.
This GYRO unit is especially optimized for micro RC drift. Ultra-light, small size and stable performance.
feature:
◆ Compact design, suitable for micro and micro rc drift cars
◆ High quality gyro sensor with stable performance
◆ Internal routine optimized for RC drift
◆Support high voltage input: 3.7v-8.4v
Specification:
Dimensions: 14.5 x 10.6 x 6.9 mm
Working voltage: 3.7~8.4V
Weight: 0.8g (without cable)
Current consumption: 20mA/6V
Working temperature: -10℃+70℃
Output signal: 1520uS (50Hz/333Hz)
Control system: PID control system
Input and output plug: JST1.5mm

About Gyroscope EPA Adjustment
First adjust (left and right steering) on ​​​​the transmitter, the EPA value you need.

EPA (Travel) Settings:
Gyro forward setting
Press the "SETUP" button, then turn on the GYRO. When the LED starts blinking fast, wait for the LED to blink slowly and the gyroscope is now in EPA (travel) setup mode, release the "SETUP" button. First turn the remote control to the left "EPA" position (the left end of the chassis) and stop there for a few seconds, when the left "EPA" position is saved in the gyroscope, the servo will automatically return to the middle position. Then turn the remote to the correct "EPA" position (right end position of the chassis) and stop there for a few seconds, when the correct "EPA" position is saved in the GYRO and EPA (drive) settings, the SERVO will automatically return to The middle position has been completed.

Gyro Reverse Setting
Press the "SETUP" button, then turn on the GYRO. When the LED starts blinking fast, wait for the LED to blink slowly and the gyroscope is now in EPA (travel) setup mode, release the "SETUP" button. First turn the remote control to the right "EPA" position (the right end of the chassis) and stop there for a few seconds, when the left "EPA" position is saved in the gyroscope, the servo will automatically return to the middle position. Then turn the remote to the "EPA" position on the left (left end position of the chassis) and stop there for a few seconds, when the correct "EPA" position is saved in the GYRO and EPA (drive) settings, the SERVO will automatically return to to the middle position has been completed.

After the above settings are completed, please re-adjust the EPA value on the transmitter, and adjust the value according to the steering of your car chassis to the value you need.
