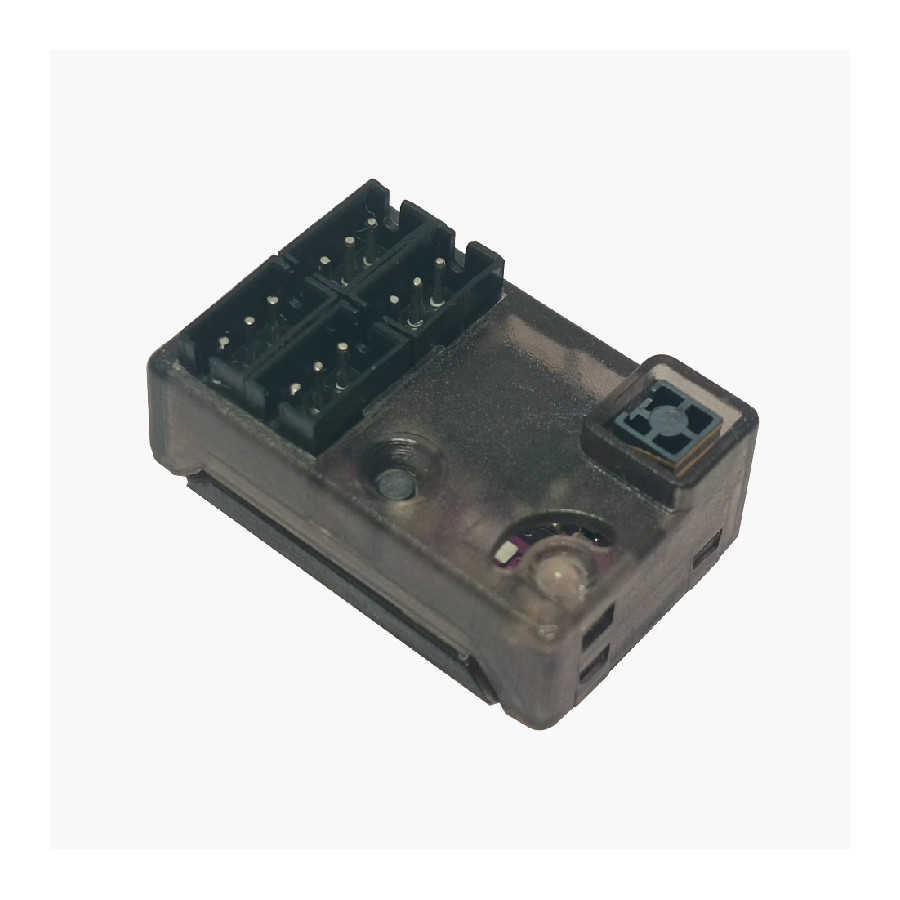

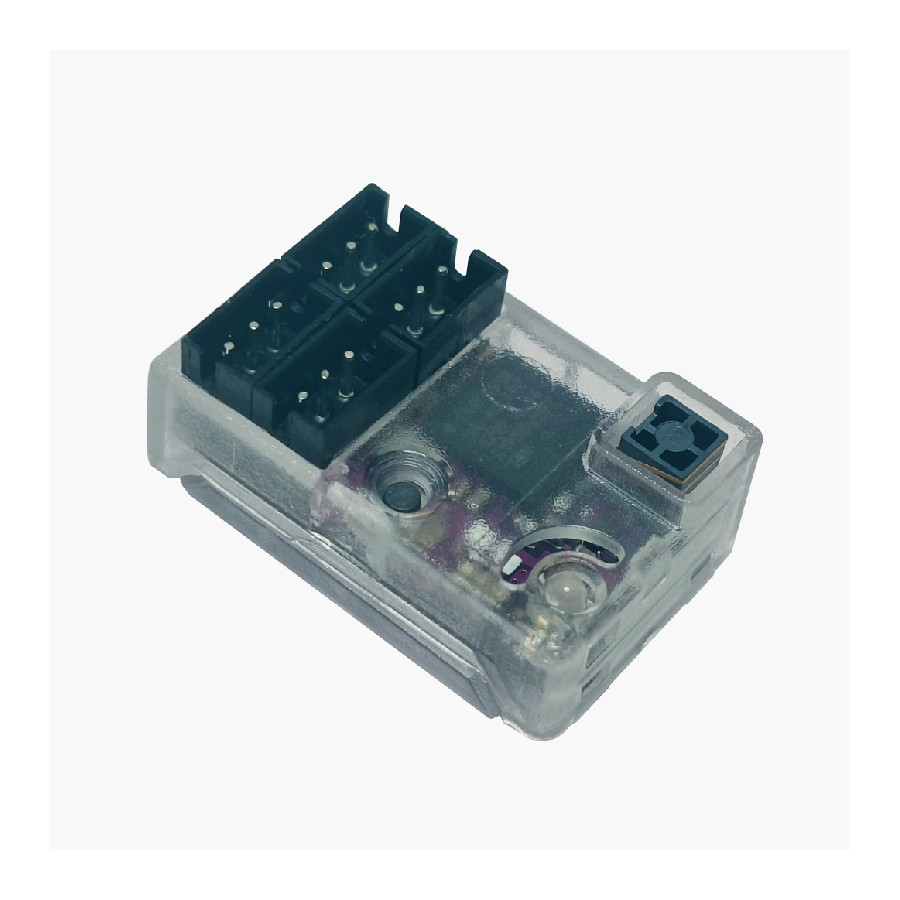

MXO-RACING FUTABA SFHSS NANO 4CH TOWER ANTENNA RECEIVER RXC52-SP

Name: MXO-RACING FUTABA SFHSS NANO 4CH TOWER ANTENNA RECEIVER RXC52-SP
Brand: GT55racing
SKU: RXC52-SP
Price: 39.9 USD
Availability: InStock

SKU: RXC52-SP

0.0 (0)

2 Sold

$39.90

Compatible Transmitters
Futaba 10PX
Futaba 7PX / 7PXR
Futaba 4PX / 4PXR / 4PV / 3PV
Futaba 4PLS / 4PL / 4PM
Futaba 7XC / 4GRS

Received successfully

Coupon Code

CONTINUE SHOPPING

Quantity:

0 in stock

Add to Favorites (0)

1/1

Description

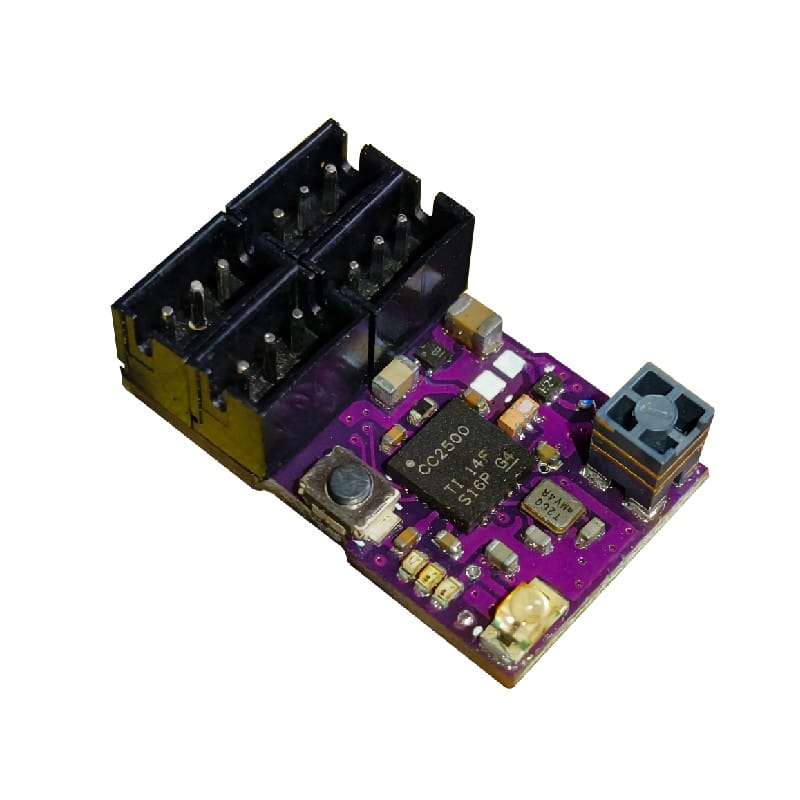

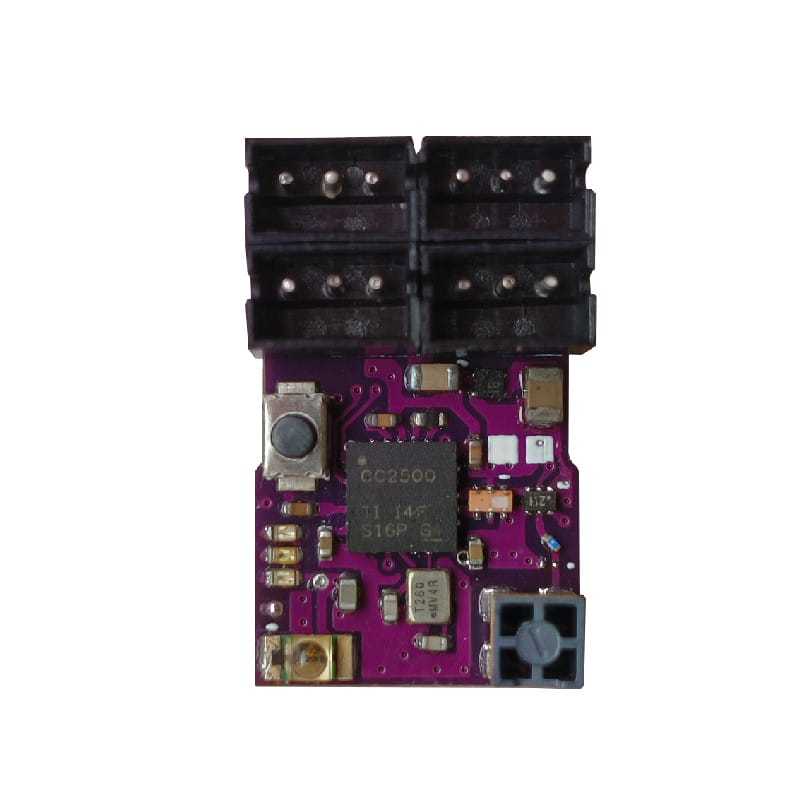

RXC52-SP Miniature High-Speed Surface Receiver
*A compact, antennaless receiver compatible with 1:24/1:28 Mini-Z and mini RC cars using Futaba SFHSS transmitters*

Compatible Transmitters
Futaba 10PX

Futaba 7PX / 7PXR

Futaba 4PX / 4PXR / 4PV / 3PV

Futaba 4PLS / 4PL / 4PM

Futaba 7XC / 4GRS

Key Features
Ultra-Compact Size: 19.6 × 12.0 × 7.0 mm | Weight: 1.35g

High-Speed Response: Output speeds up to 3.4ms (faster than standard receivers of the same protocol).

Wide Voltage Range: 3.3V–8.5V input.

Built-in LNA (Low-Noise Amplifier): Optimized for both short- and long-range performance.

Programmable Transponder: Editable personal ID number.

Adaptive Output Speed:

5.5ms (DX4S) / 8.25ms (DX5C)

Switchable between 3.4ms (high-speed) and 6.8ms (standard) modes.

Mul_Gyro Support: *[Only available in RXC52-SG/TP versions]*

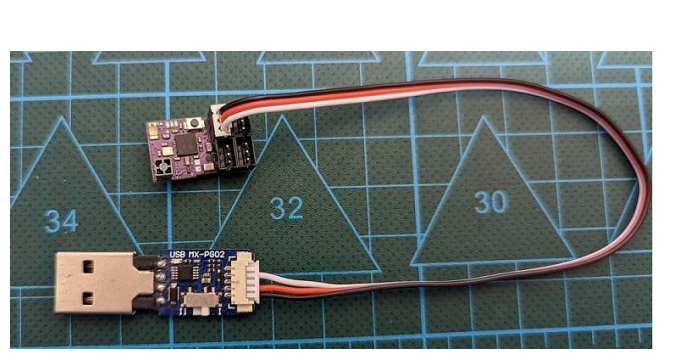

Firmware Upgradable: Via PC GUI and MX USB PG-ISP adapter.

LED Status Indicators
Fast Blue Flashing: Receiver connected to transmitter.

Slow Blue Flashing: Waiting for transmitter signal.

Solid Blue Light: Normal operation (signal received).

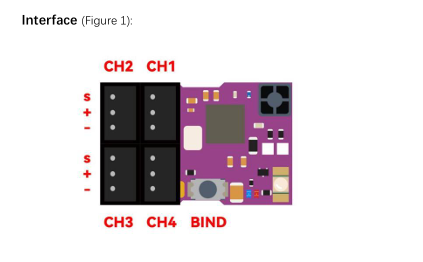

Binding Procedure
Power on the receiver.

Press and hold the bind switch until the LED flashes rapidly.

Power on the transmitter.

Once the LED changes from fast flash to solid, binding is successful.

Output Mode Switching
For T7PX/T10PX Transmitters:

6.8ms mode: SFHSS Analog mode.

3.4ms mode: SFHSS Digital mode.

Other Transmitters:

6.8ms mode: Select S-FH (NORM) in RX MODE.

3.4ms mode: Select S-FH (HIGH) in RX MODE.
