MXO-Racing KO ASF V2 Micro ANTENNA-FREE Receiver #RXC42-K1-NT

Name: MXO-Racing KO ASF V2 Micro ANTENNA-FREE Receiver #RXC42-K1-NT
Brand: GT55racing
SKU: RXC42-K1-NT
Price: 36.99 USD
Availability: OutOfStock

SKU: RXC42-K1-NT

0.0 (0)

10 Sold

$36.99

Features

1)Modulation:Compatible KYOSHO 2.4GHz ASF

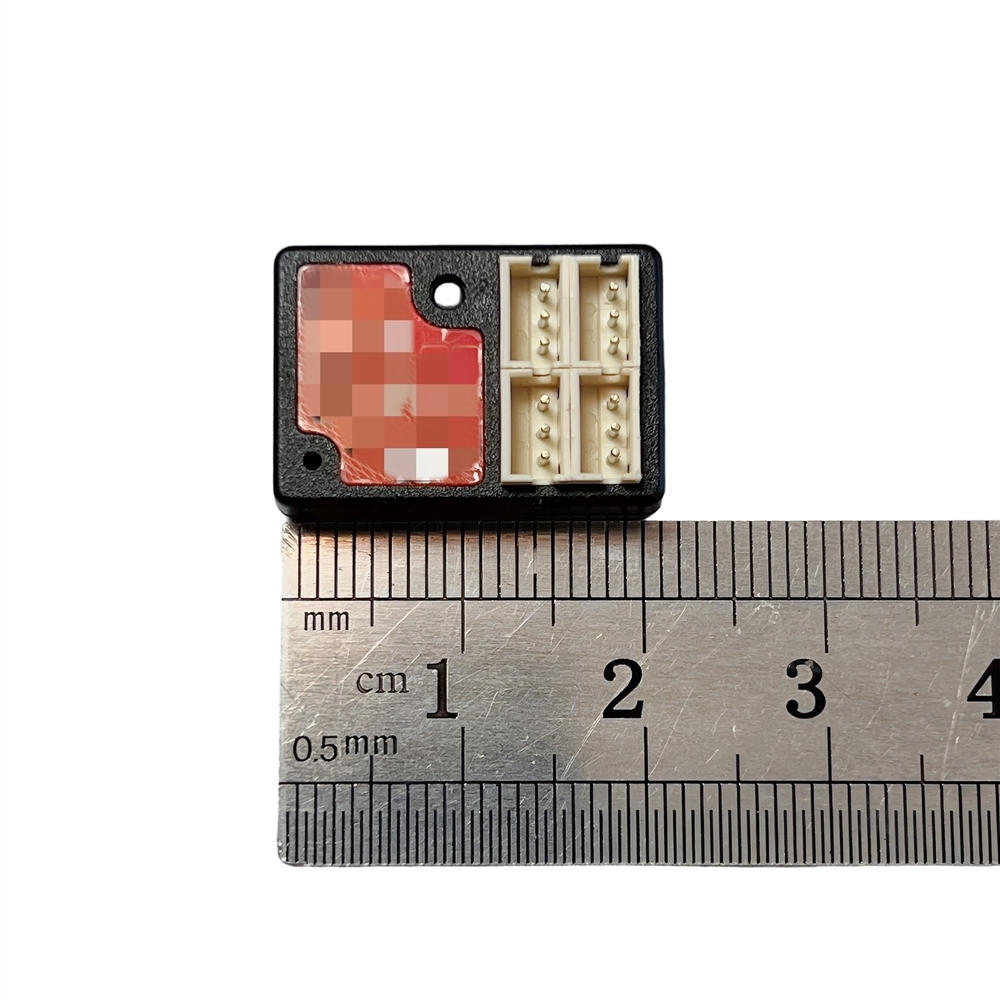

2)Small size: 21.5*14.6*6.5mm
3)Super light: 2.4g(including antenna)
4)Working voltage:3.7~8.4V
5)High performance CPU enhance exactness control feeling

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

MXO-RACING RXC42-K1-NT(Kyosho/KO-ASF) V2 Super Micro SurfaceRX/ABS shell/4CH/MINIZ/ATM/DRZ/GL

Compatible KYOSHO 2.4GHz ASF

This RC receiver unit is KYOSHO ASF compatible. It offers full 4-channel support in ultra-light weight and micro size. It is designed for micro racing cars.

Features

1)Modulation:Compatible KYOSHO 2.4GHz ASF
2)Small size: 21.5*14.6*6.5mm
3)Super light: 2.4g(including antenna)
4)Working voltage:3.7~8.4V
5)High performance CPU enhance exactness control feeling
6)4 channel support
7)Added failsafe function
8)Ideal for any micro RC racing chassis
9)Comes with 3P 1.5mm plug

Compatible Transmitters

KO PROPO EX-1 ASF
KO PROPO EX-6R
KO PROPO EX-6
KYOSHO KT-18
KO PROPO EX-5UR ASF
KO PROPO 901SM/902SM RF Module

Connection Diagram

Bind and Failsafe

Power on your transmitter and receiver. Adjust transmitter each channel to the exact position you want to have in failsafe mode. Transmitter set to pair mode. Receiver led should be on. Long press the pair button. After around 2 seconds the LED will turn to fast flashing first then turn to on status again. Now the pairing is done and the failsafe data is saved. Power off the transmitter and receiver then power on again then the receiver will work.
