This is the receiver for KYOSHO MR-03EVO and MA-030EVO

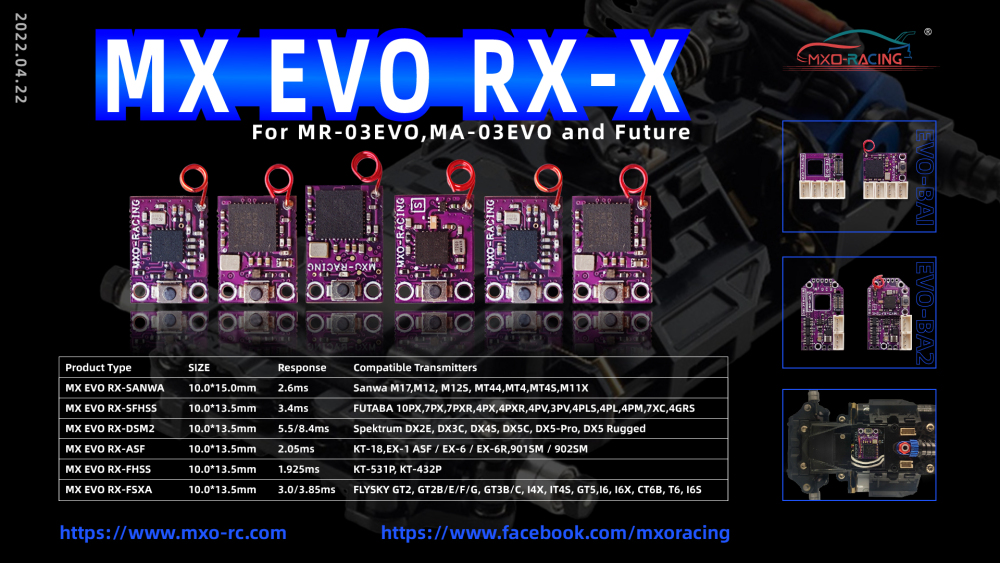

it can be used for KO ASF transmitter
KT-18, KO EX-1 ASF/EX-6/EX-6R, 901SM/902SM
MX EVO RX -ASF Manual

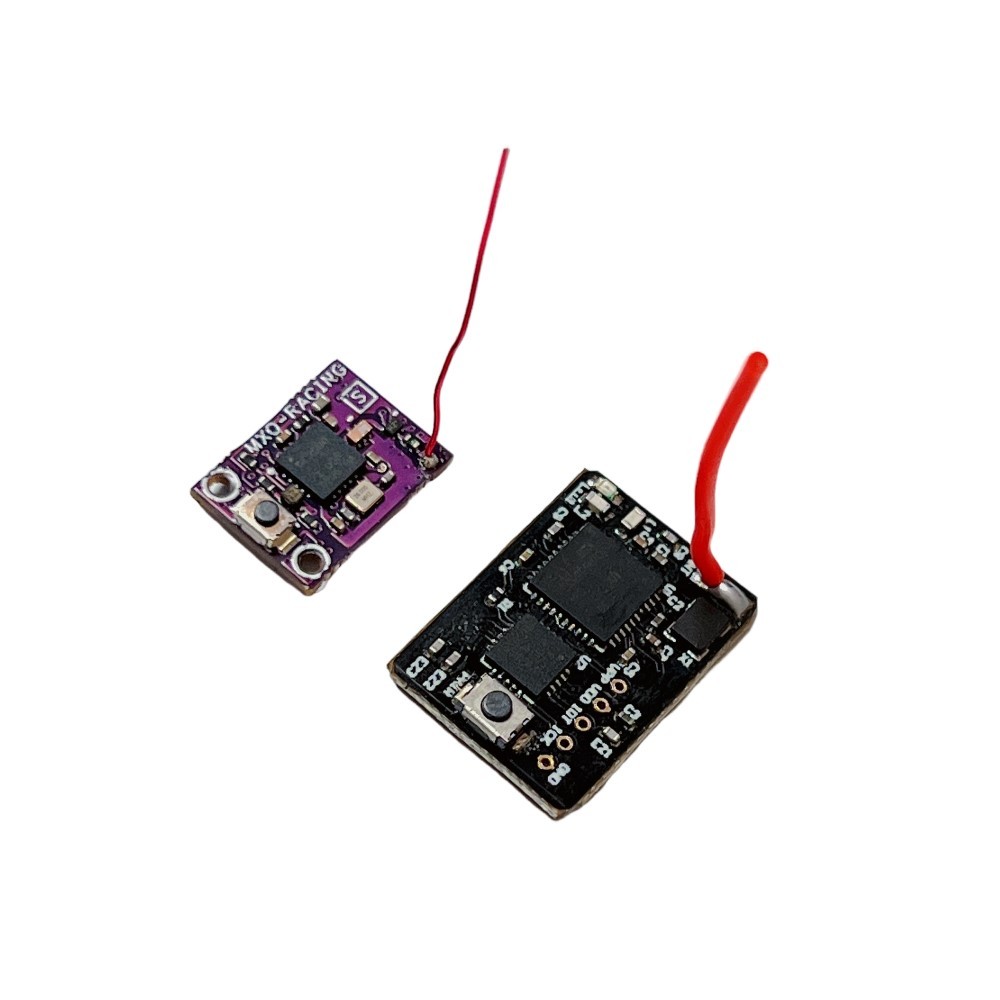

The MX EVO RX -ASF is a ASF compatible ultra - miniature receiver for KYOSHO's MR -03EVO and MA -030EVO , with an output speed of up to 2 . 05ms in EVO mode . It can work not only in EVO mode , but also in 4CH PWM standard signal mode .
In addition , we are developing miniature sensor brushless ESCs and other related products that can be directly mounted on this receiver .
Features ：

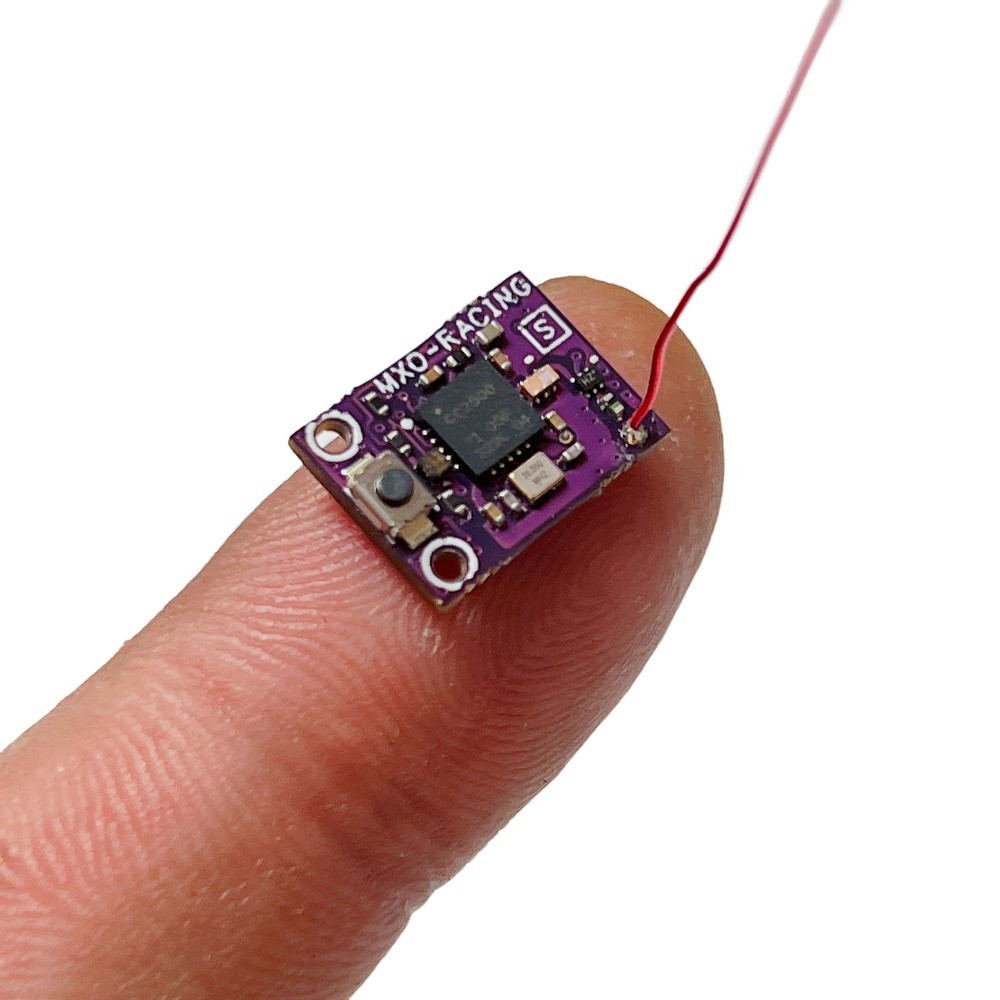

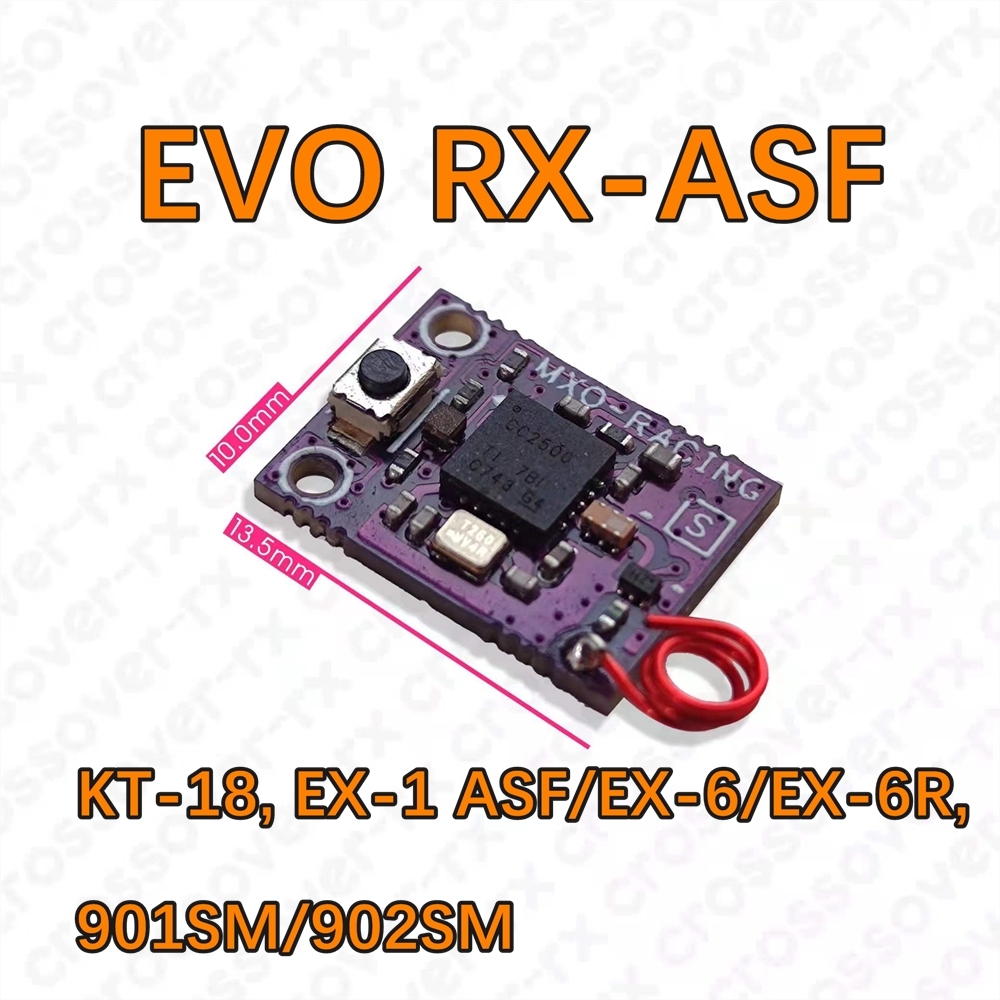

Size: 13 . 5*10 . 0*3 . 5mm;
Weight: 0 . 58g;
Working voltage: 3 . 0V or 3 . 3V;
Compatible with ASF protocol;
Support EVO and 4CH PWM two working modes;
The output speed in EVO mode is 2 . 05ms;
The output speed in 4CH PWM mode is 4 . 1ms;
Support online firmware upgrade .
Bind Operation:
Install the MX EVO RX first , then power on the receiver and press the BIND switch until the red LED on the RX changes from slow flashing to fast flashing , and then proceed according to the BIND operation requirements of the transmitter . When the red LED on the RX changes from fast When the blinking turns to steady light , it means BIND is successful and the signal has been received .
Red LED status indication:
The red LED on the MX EVO RX is an indication of the working status of the RX:
1) When the red LED flashes slowly , it means that RX is waiting to receive a signal;
2) When the red LED flashes quickly , it means RX is in BIND mode;
3) When the red LED is always on , it means that the RX has received the signal stably .
Green LED status indication:
The green LED on the MX EVO RX is an indication of the RX operating mode:
1) When the green LED is on , it means the RX is working in EVO mode;
2) When the green LED is off , it means that the RX is working in 4CH PWM mode;
How the MX EVO RX works in EVO mode:

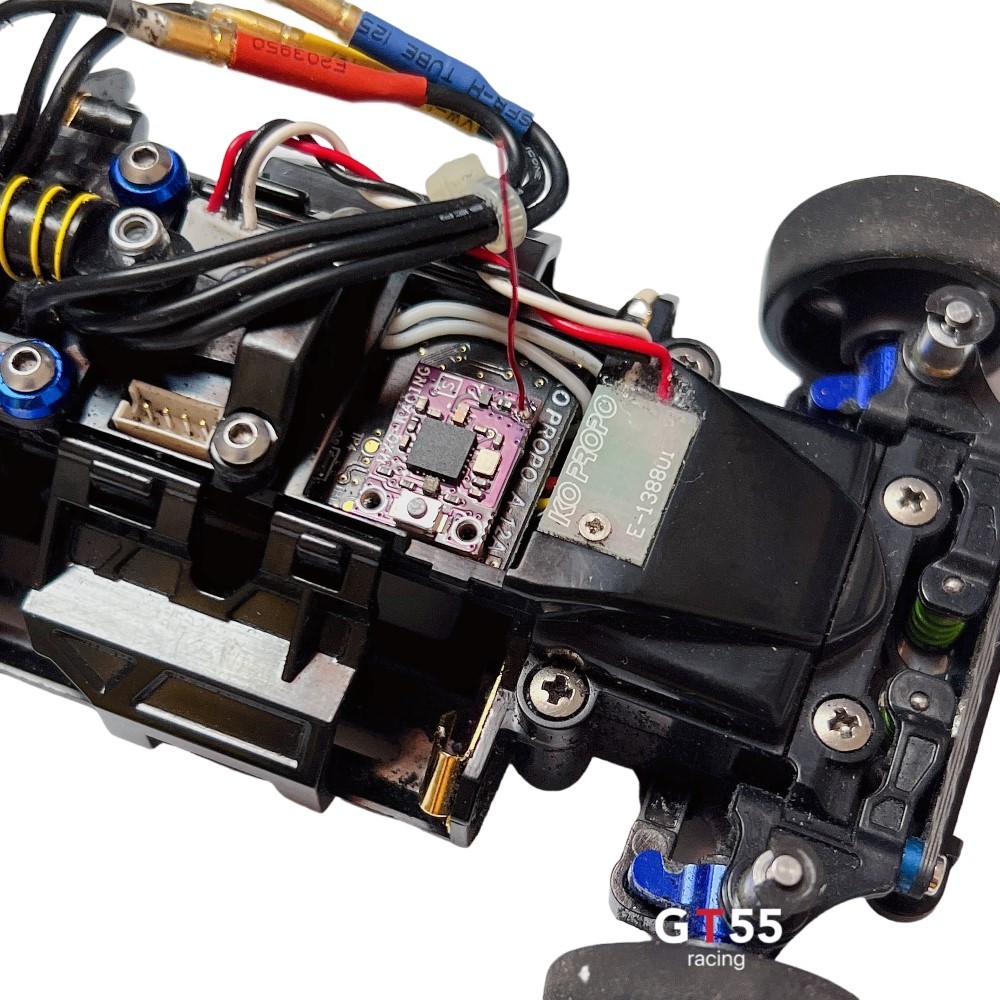

When users install MX EVO RX on KYOSHO's MR -03EVO/MA -030EVO frame or other products that support EVO mode , MX EVO RX will work in EVO mode .
In EVO mode , when the MX EVO RX is just powered on , the LED on the RX will not flash quickly , but the green LED will light up .
Note: When using the MX EVO RX on the MR -03EVO/MA -03EVO , be sure to install it in place , otherwise you may burn it; if necessary , place the receiver compartment cover on the MR -03EVO/ MA -03EVO Add a small piece of sponge to hold down the MX EVO RX .
How the MX EVO RX works in 4CH PWM mode:
When users install MX EVO RX on EVO - BA1 or other products that support 4CH PWM mode , MX EVO RX will work in 4CH PWM mode .
In 4CH PWM mode , when the MX EVO RX is just powered on , the LED on the RX will flash several times quickly and then enter the working mode , but the green LED will be off .
The picture below shows the EVO - BA1 on the left and the EVO - BA1 with the MX EVO RX installed on the right:
Online firmware upgrade:
This function requires GUI support on the PC side , and the receiver and GUI need to be connected through the MX USB - PG - ISP . The remote control must be turned off before the receiver is connected to the GUI , otherwise the
receiver cannot be connected to the GUI .
Note:
1) The SW switch on the MX USB - PG - ISP must be moved to the "I" position;
2) When the GUI is connected to the MX EVO RX , the transmitter must be turned off , otherwise the GUI cannot correctly read the information of the MX EVO RX .
3) When the MX USB - PG - ISP is connected to KYOSHO's MINI -Z product , the cable needs to be replaced;
GUI download link: update . crossover -rx . com/mxo .zip
Please contact us if you have any feedback or suggestions, thank you!
