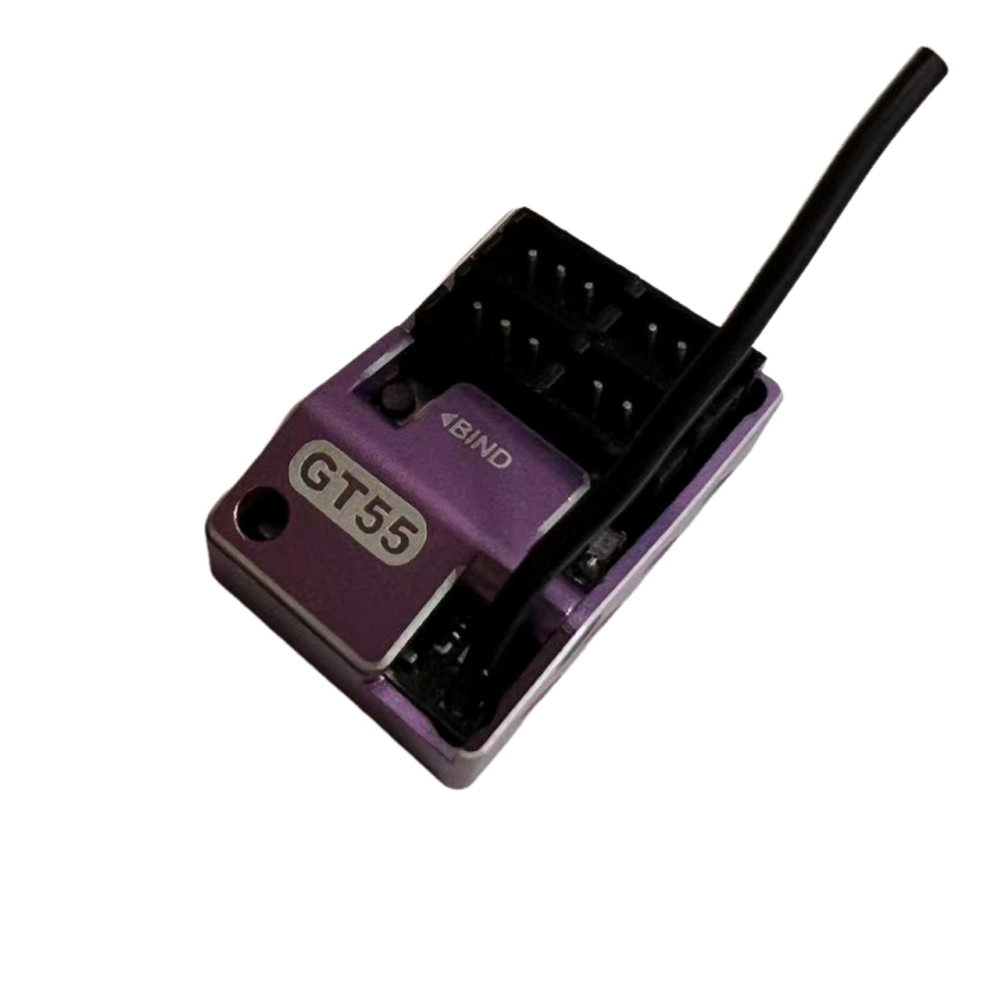

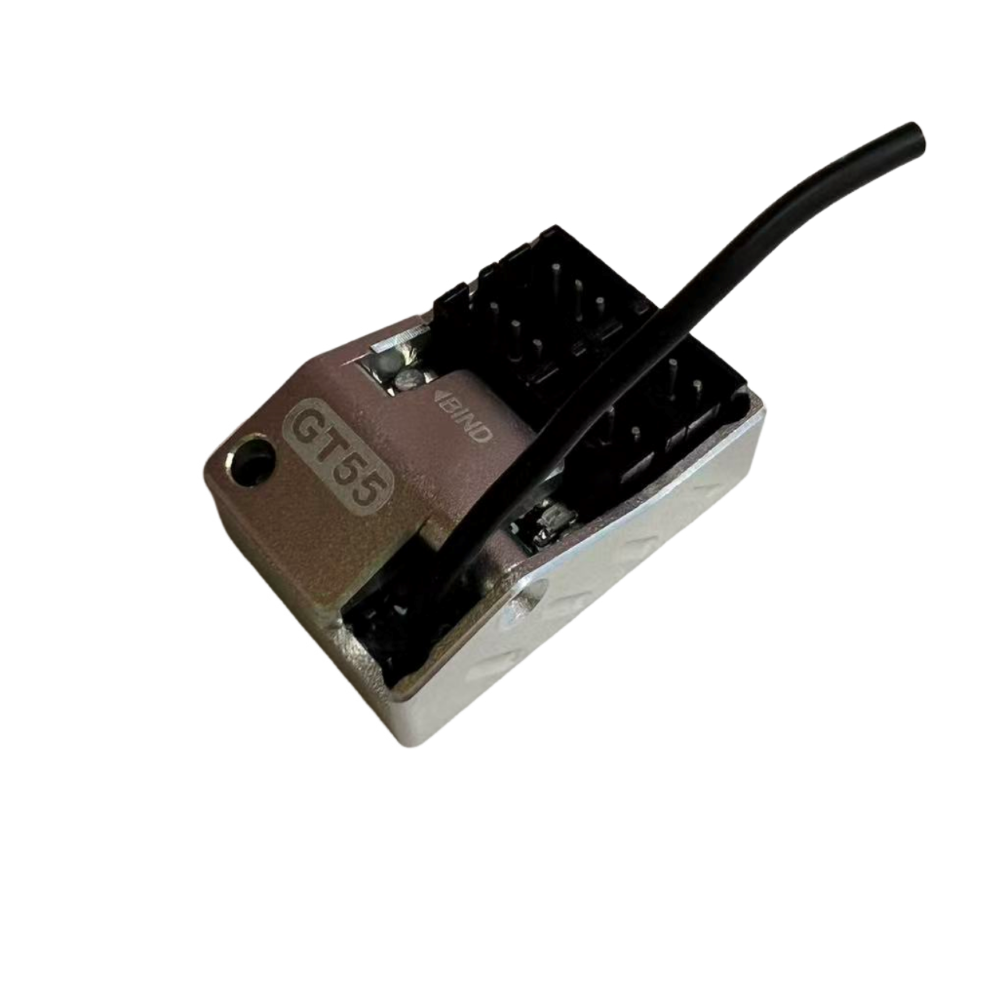

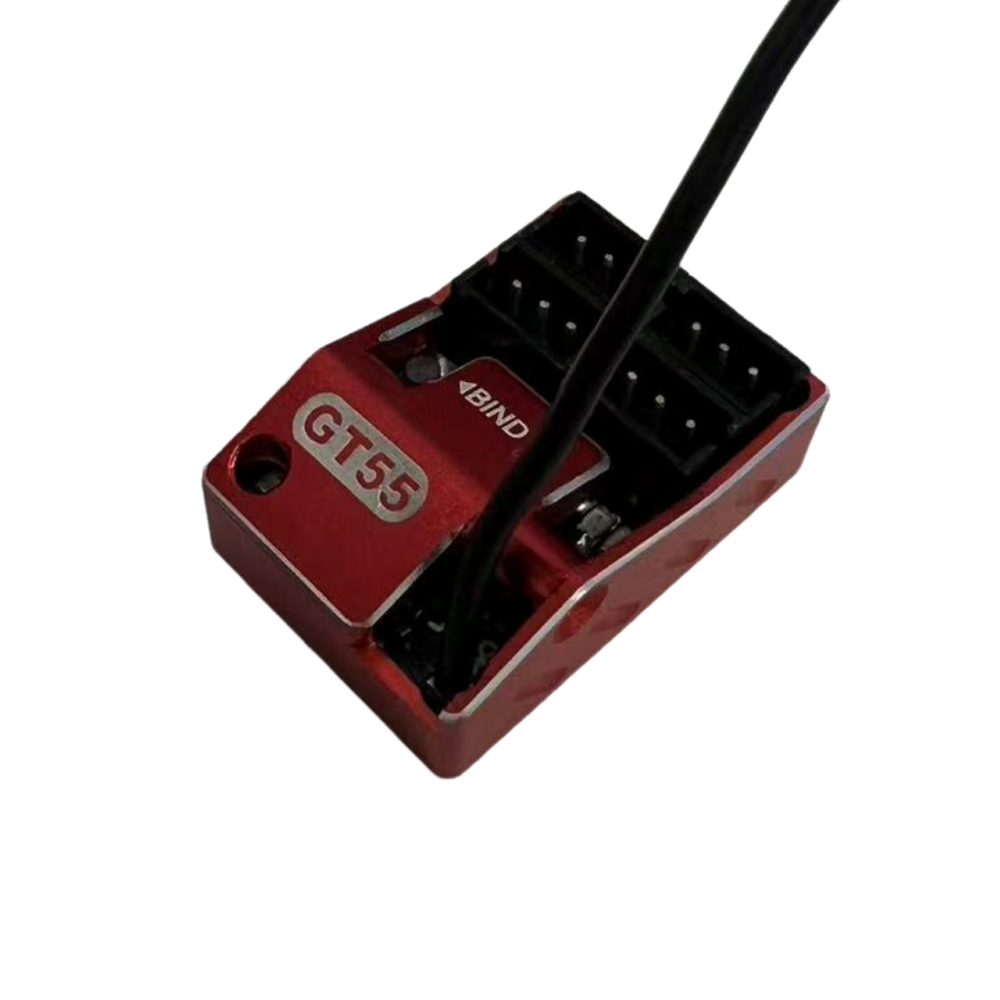

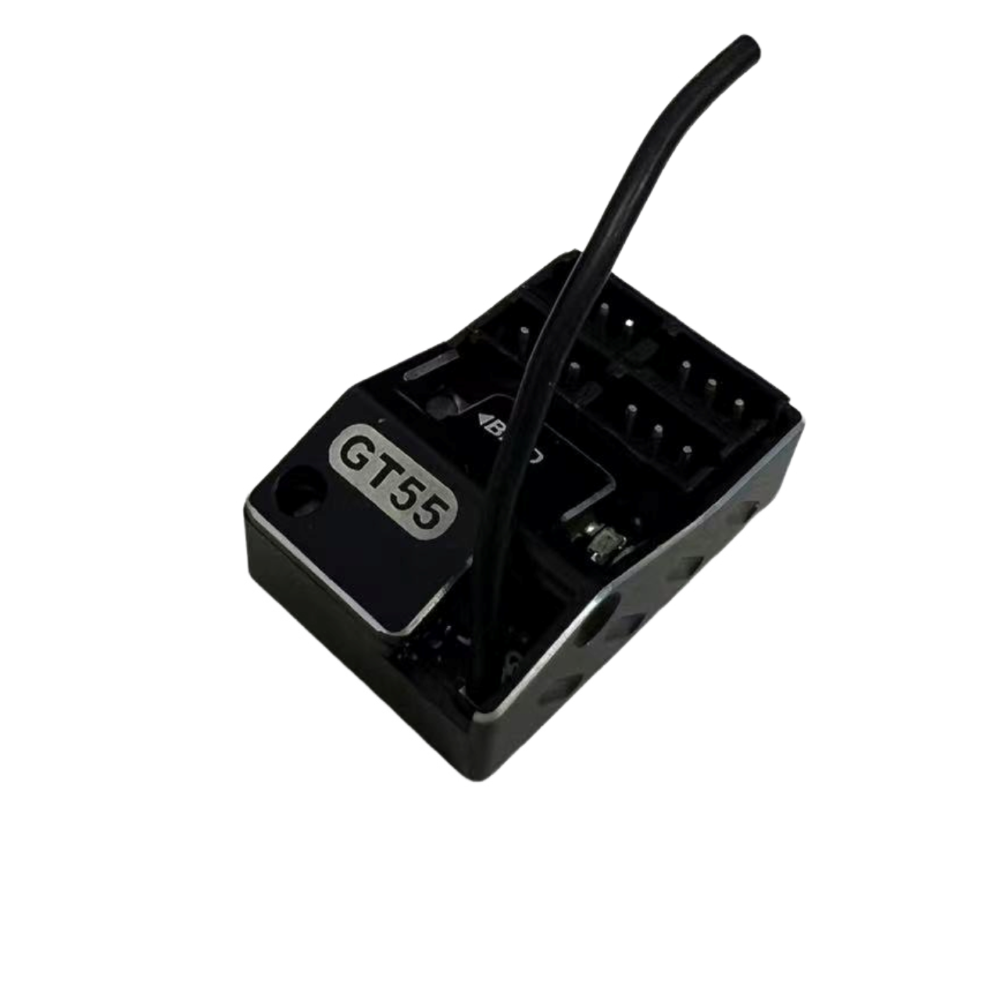

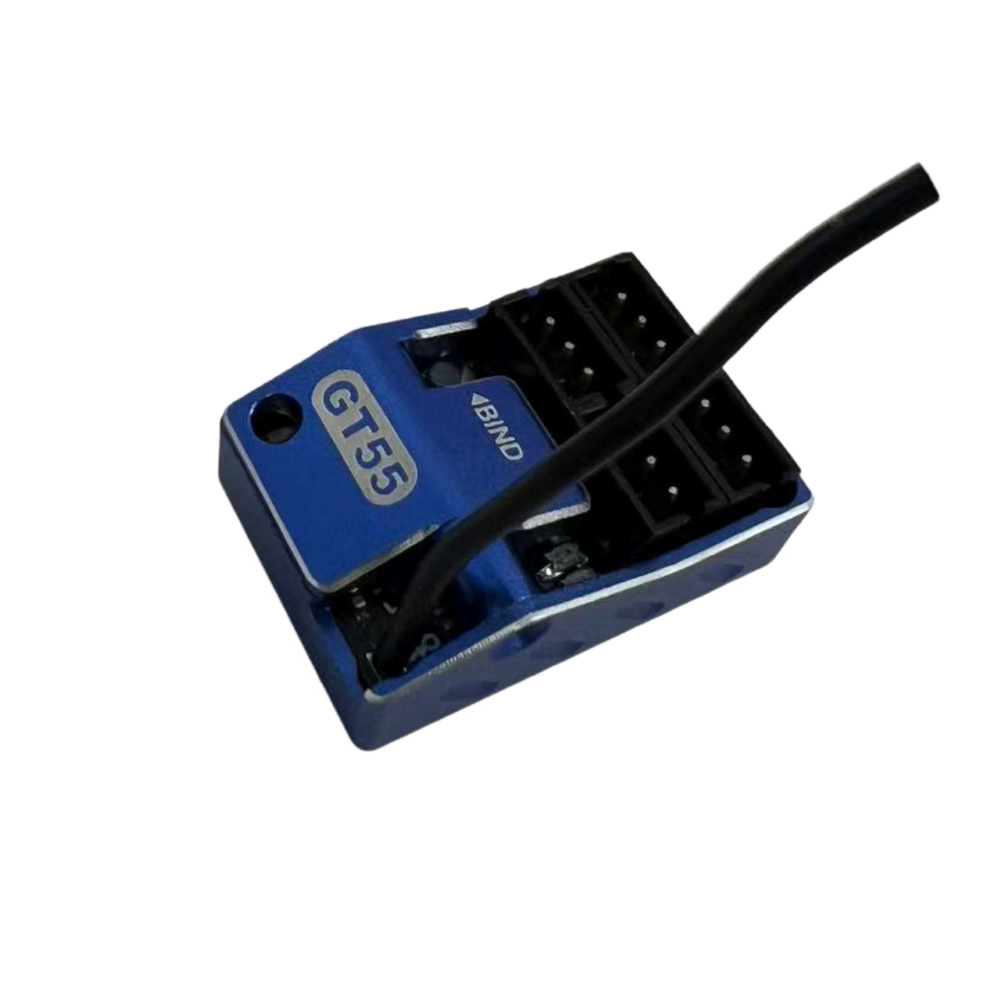

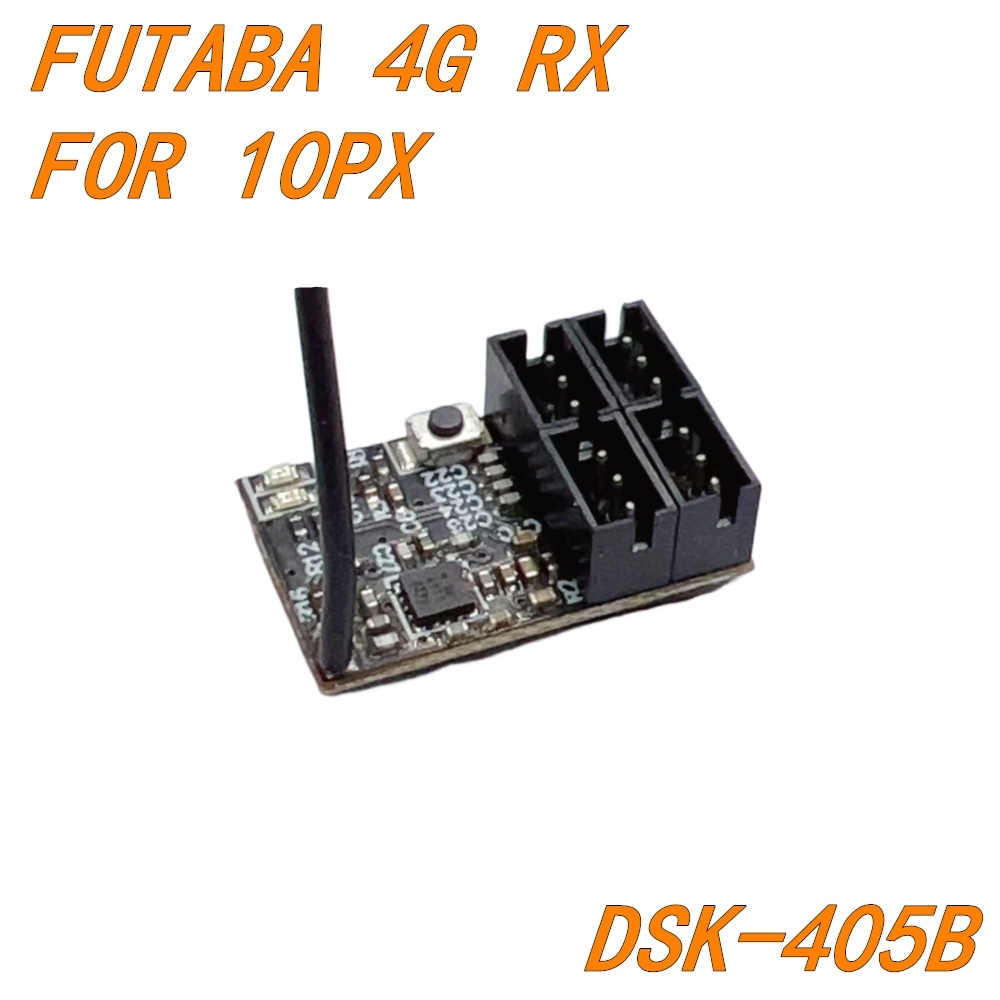

NEW FUTABA F-4G 4CH ANTENNA RECEIVER DSK-405B For 10PX GT55RACING

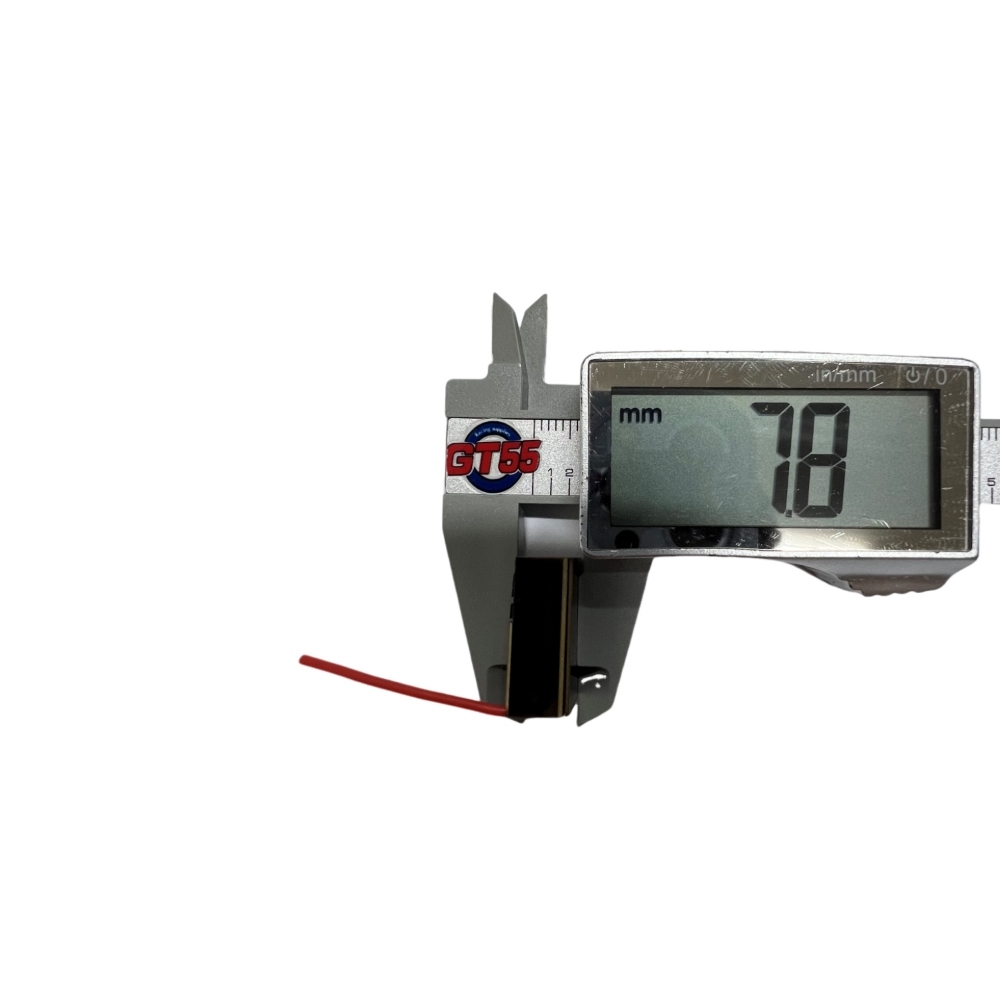

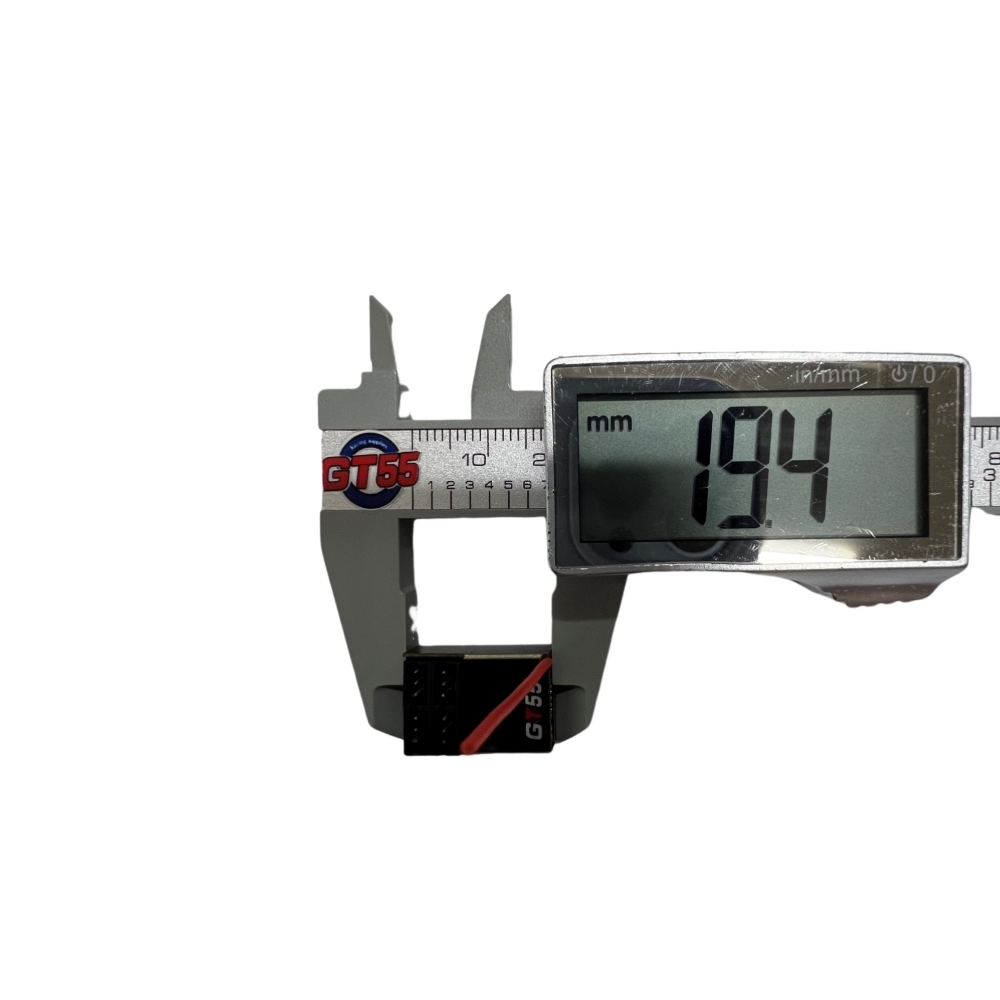

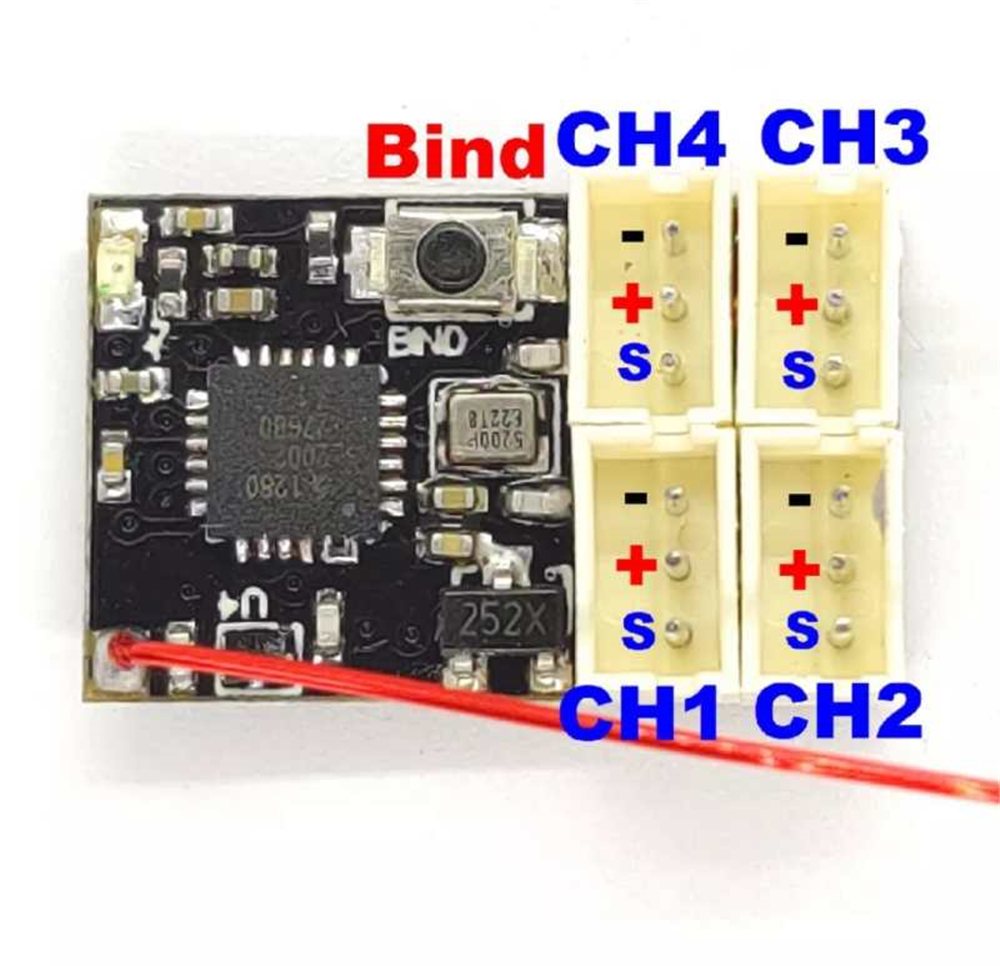

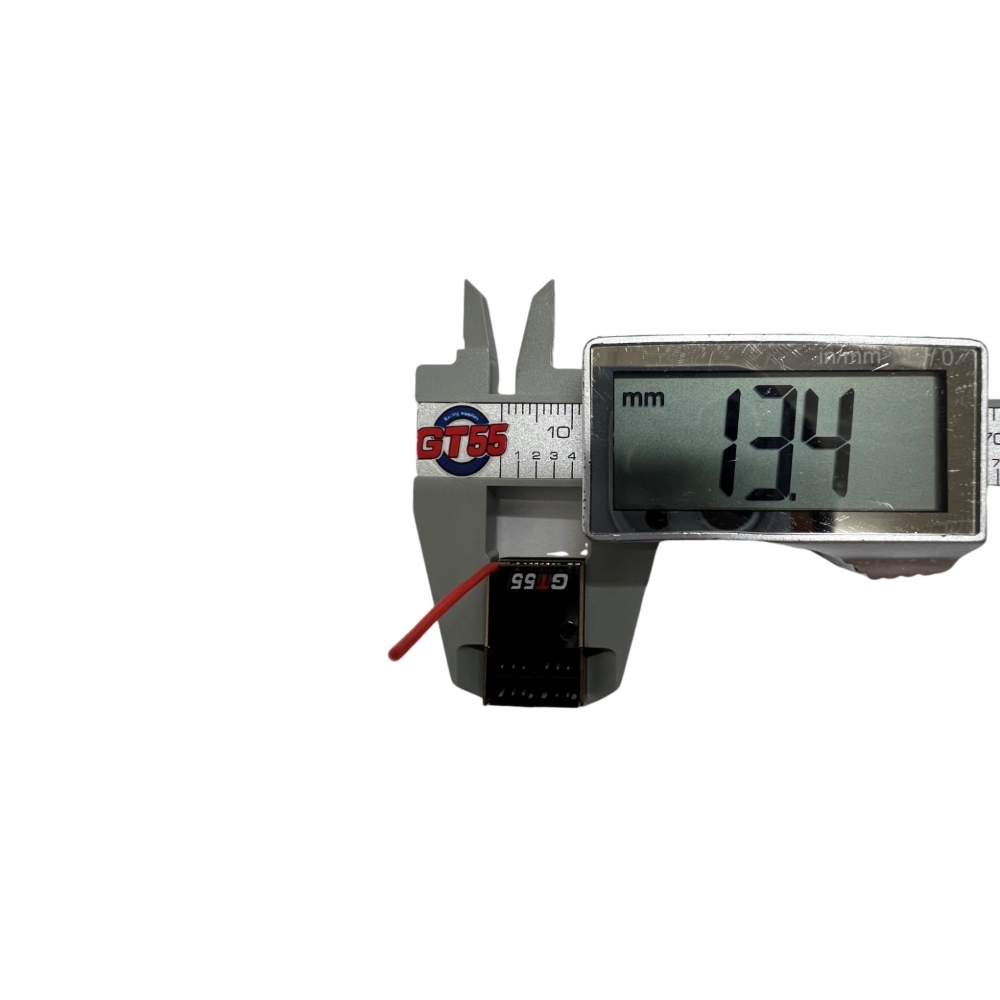

Description:This RC receiver unit is FUTABA F-4G compatible. It offers full 4-channel support in ultra-light weight and micro size. Features:1. Futaba F-4G Compatible2. High performance CPU enhance precision control feeling.3. 4 channel support4. Nano size (19mm x 12mm)5. Added failsafe function6. Operating Voltage 3.5V - 12V7. Weight: 3g Link Procedure:Each transmitter has an individually assigned, unique ID code. In order to start operation, the receiver must be linked with the ID code of the transmitter with which it is being paired. Once the link is made the ID code is stored in the receiver and no further linking is necessary unless the receiver is to be used with another transmitter.1-Place the transmitter and the receiver close to each other within half (0.5) meter.2-Place the transmitter into the linking mode and turn on the receiver3-During countdown, push the receiver tact switch for approximately 2 seconds. The LED will begin to blink red. After the receiver LED switches from blinking red to green - red steady light, If the transmitter and receiver are linked normally, set the power switch to the OFF position and then turn on the PWR ON position. If the receiver LED lights green, linking was succeeded. Actually check servo operation.Compatible Transmitters:FUTABA 10PX Package Included:1 x Receiver4 x 1.5mm 3P JST plug with high quality silicon cable Wire Connection：
