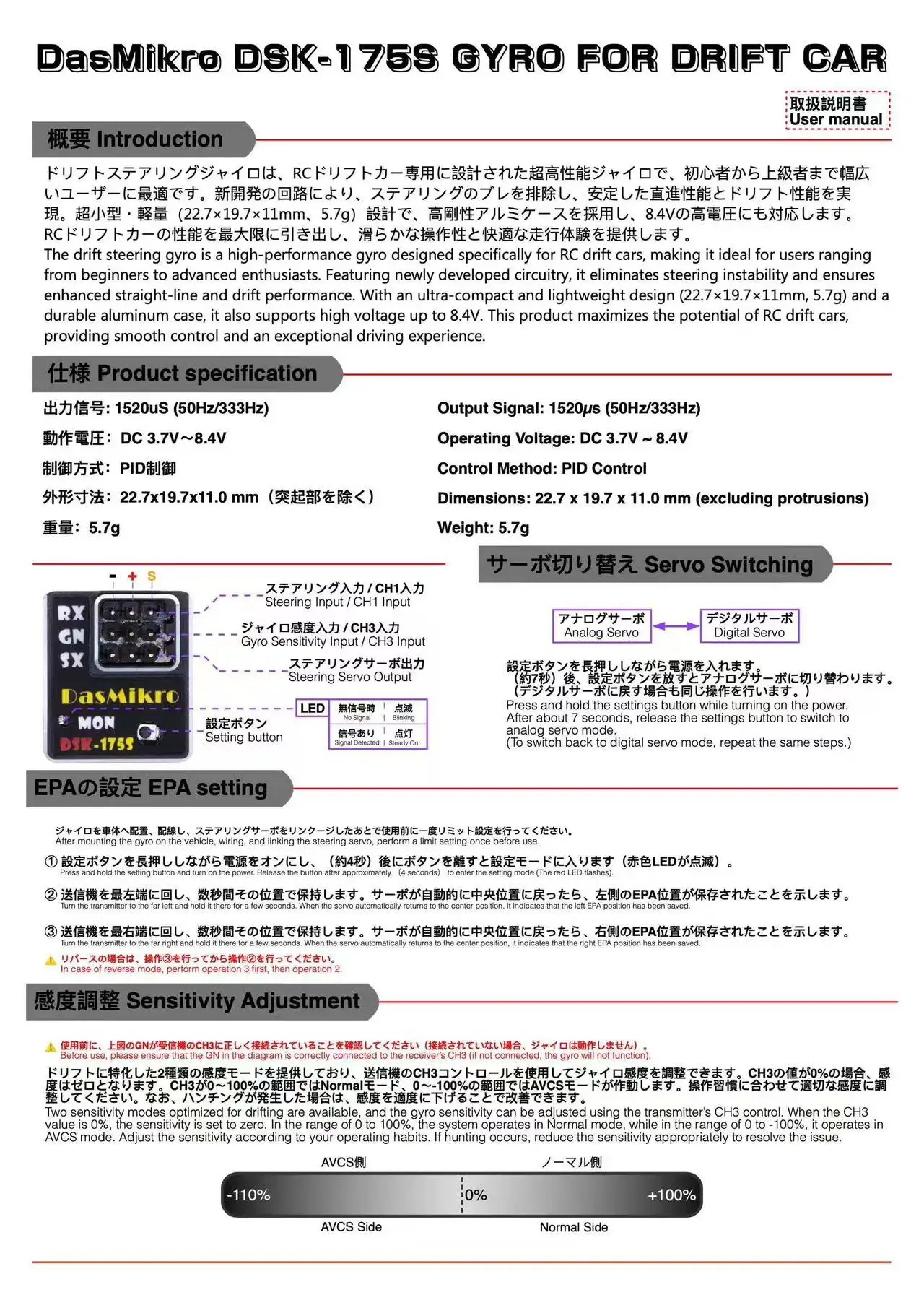

DasMikro DSK-175S GYRO FOR DRIFT CAR
User Manual
Introduction

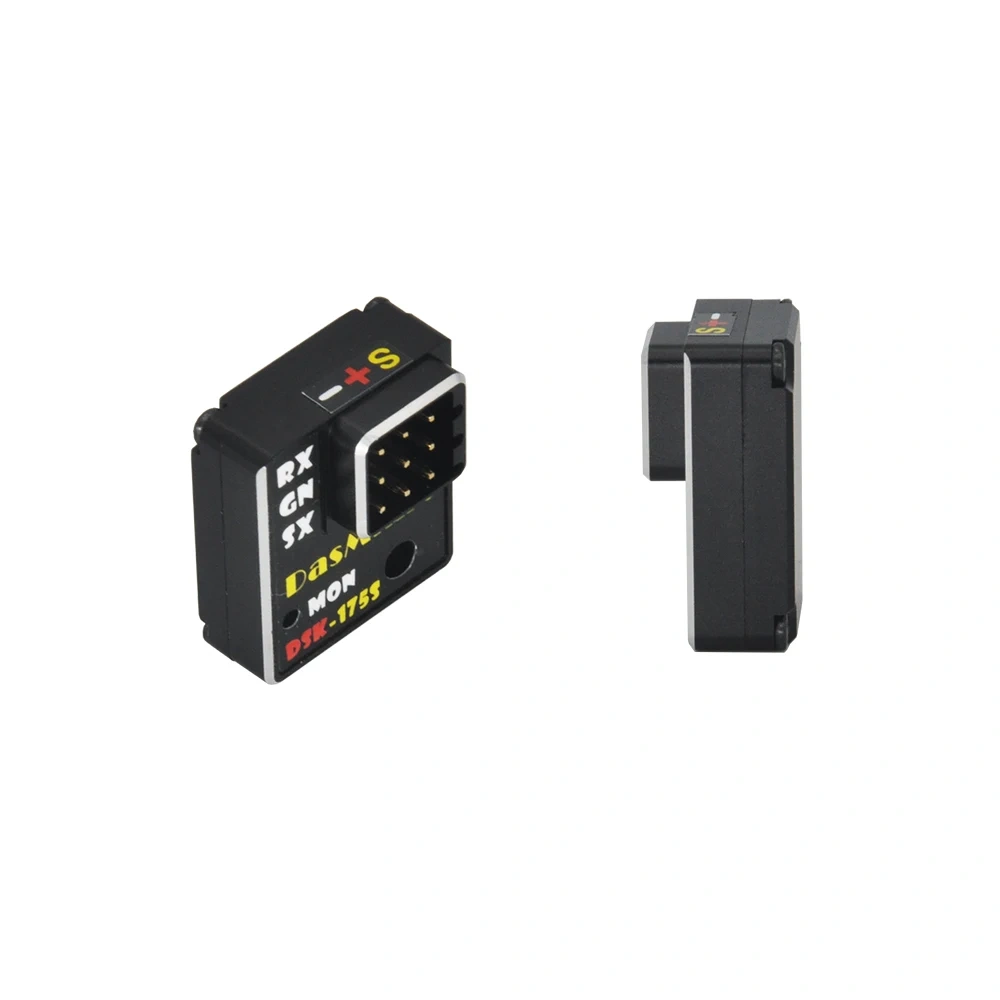

The drift steering gyro is a high-performance gyro designed specifically for RC drift cars, making it ideal for users ranging from beginners to advanced enthusiasts. Featuring newly developed circuitry, it eliminates steering instability and ensures enhanced straight-line and drift performance. With an ultra-compact and lightweight design (22.7×19.7×11mm, 5.7g) and a durable aluminum case, it also supports high voltage up to 8.4V. This product maximizes the potential of RC drift cars, providing smooth control and an exceptional driving experience.
Product Specification
Feature Specification
Output Signal 1520μs (50Hz/333Hz)
Operating Voltage DC 3.7V–8.4V
Control Method PID Control
Dimensions 22.7 × 19.7 × 11.0 mm
Weight 5.7g
Servo Switching
Analog Servo: Press and hold the settings button while turning on the power. After about 7 seconds, release the settings button to switch to analog servo mode.
Digital Servo: To switch back to digital servo mode, repeat the same steps.
EPA Setting
After mounting the gyro on the vehicle, make sure to perform an initial setting once before use.
Press and hold the setting button while turning on the power (about 4 seconds) until the red LED lights up.
Operate the transmitter to move the steering to the left endpoint, then press the setting button once. The red EPA position has been saved.
Move the steering to the right endpoint, then press the setting button once. The right EPA position has been saved and the setting is complete.
Sensitivity Adjustment
Ensure the GN input is correctly connected to the receiver’s CH3 (if not connected, the gyro will not function).
Adjust sensitivity using the transmitter’s CH3 control. When CH3 control value is 0%, the sensitivity is set to zero. In the range of 0 to +100%, it operates in Normal mode; in the range of 0 to -100%, it operates in AVCS mode. Adjust the sensitivity according to your driving habits.
