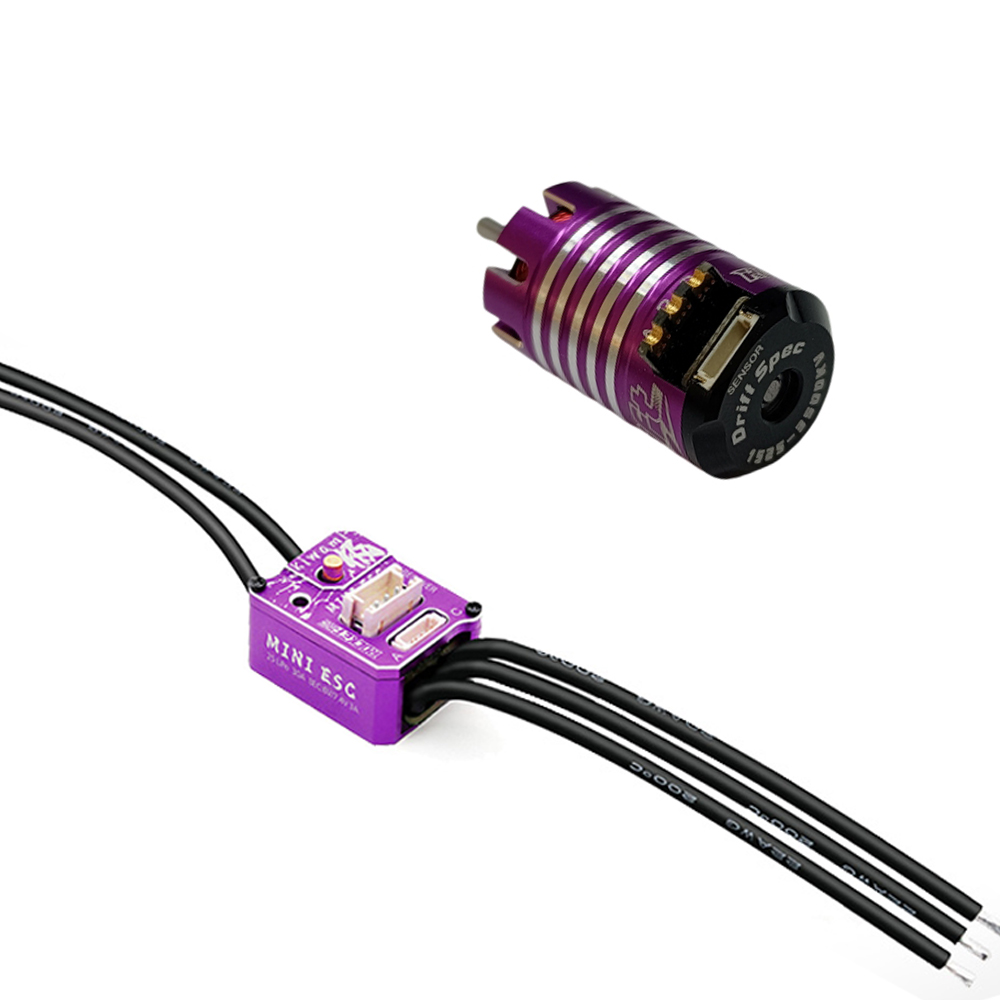

Rocket KIWAMI MINI Sensored Brushless ESC+Motor Combo Purple (KIWAMI ESC + 1525 Motor)

Name: Rocket KIWAMI MINI Sensored Brushless ESC+Motor Combo Purple (KIWAMI ESC + 1525 Motor)
Brand: GT55racing
SKU: SP-500001-24+3500KV
Price: 88.9 USD
Availability: InStock
Rating: 5 (3 reviews)

SKU: SP-500001-24+3500KV

5 (3)

179 Sold

$88.90

Package Included:

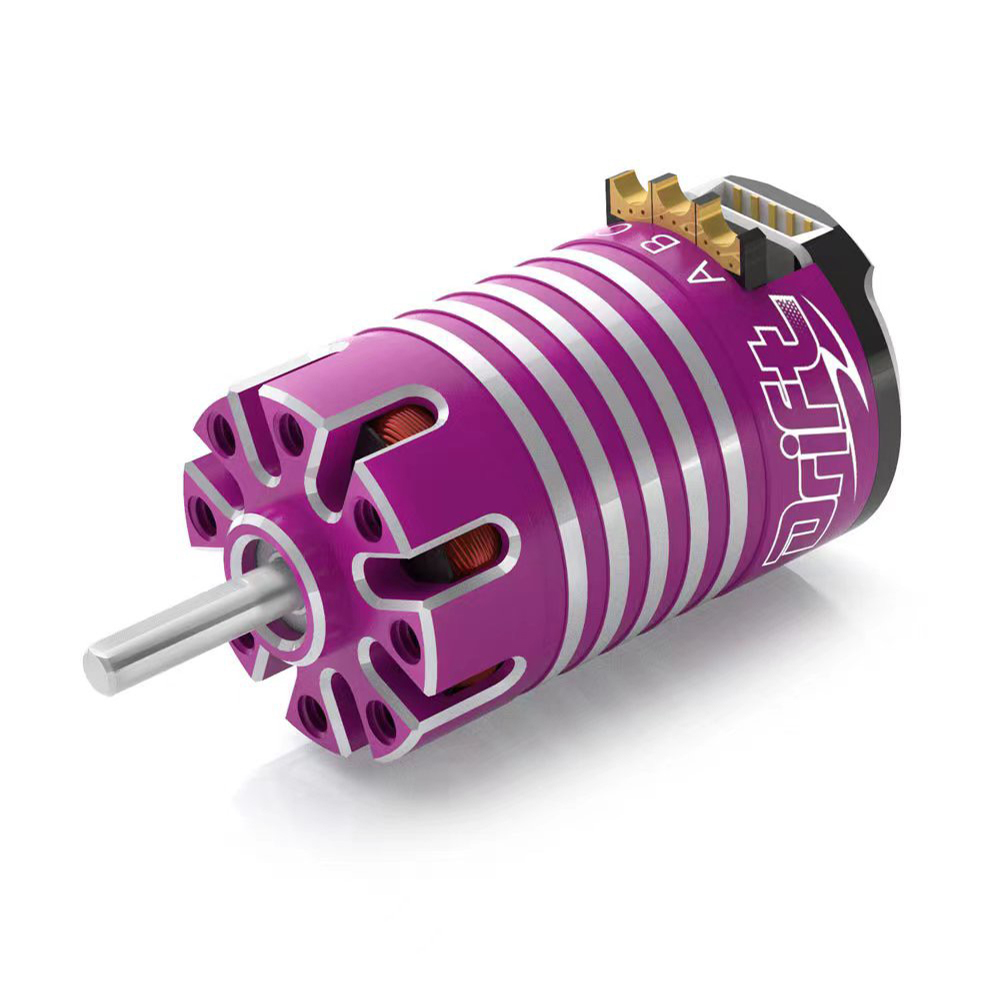

1 * 1525 Sensored Brushless Motor
1 * KIWAMI ESC
1 *Carte de programmation
1 *Connection cable set
1 *Manual

Received successfully

Coupon Code

CONTINUE SHOPPING

Quantity:

0 in stock

Add to Favorites (7)

1/1

Description

Features:
The max power of the motor is 80 watts, and the power output efficiency is as high as 92%.
Unique senosred and sensorless dual compatiblemode startup.
Thicken gold PCB circuit board, solder with ESC cablemake d the frame is perfectly wired.
Industry tandard sensor hole Spin-08 terminal isconnected with sensor cables.
The slot full rate is extremely high, and the internal resistance of the resistance value can obtain high power output.
NSK Bearings imported from Japan are extremely smooth at high speed.
The unique stator adopts 0 . 2mm silicon steel sheet,and the efficiency conversion rate can reach 94%.
2POLE super compliant linear high speed high temperature 200℃ rotor explosion-proof new magnet , Material 1EL / AIW ( H ) grade American MWS brand red high temperature wire rod .
Aluminum alloy front-end integrated casing design ,high-speed operation , stable and reliable.
German Schenker balancing machine adjustment,mini motor rotor balance accurate 2mg .
The maximum rpm of Turbo timing operation can reach 60.000 rpm.

Specifications:
Product:Mini 1525- 25.5T
SENSOR timing:SENSOR 0℃
KV(RPM/Volt):3500
Watts:80
Max voltage:8.4V
Max Amps:8A
Rotor Poles:2
IO(7.4V):0.25A
Resistance (mΩ):  0.652
Max RPM:60000
Rotor Size(mm): ∅6.0x14.5
Motor Size(mm)∅15x25
Weight(g):17
Shaft(mm): ∅2x10

Product:Mini 1525- 21.5T
SENSOR timing:SENSOR 0℃
KV(RPM/Volt):4500
Watts:80
Max voltage:8.4V
Max Amps:9A
Rotor Poles:2
IO(7.4V):0.35A
Resistance (mΩ):  0.414
Max RPM:60000
Rotor Size(mm): ∅6.0x14.5
Motor Size(mm)∅15x25
Weight(g):17
Shaft(mm): ∅2x10

Product:Mini 1525- 17.5T
SENSOR timing:SENSOR 0℃
KV(RPM/Volt):5500
Watts:80
Max voltage:8.4V
Max Amps:10A
Rotor Poles:2
IO(7.4V):0.50A
Resistance (mΩ):  0.275
Max RPM:60000
Rotor Size(mm): ∅6.0x14.5
Motor Size(mm)∅15x25
Weight(g):17
Shaft(mm): ∅2x10

Package Included:
1 * 1525 Sensored Brushless Motor
1 * KIWAMI ESC
1 *Carte de programmation
1 *Connection cable set
1 *Manual
