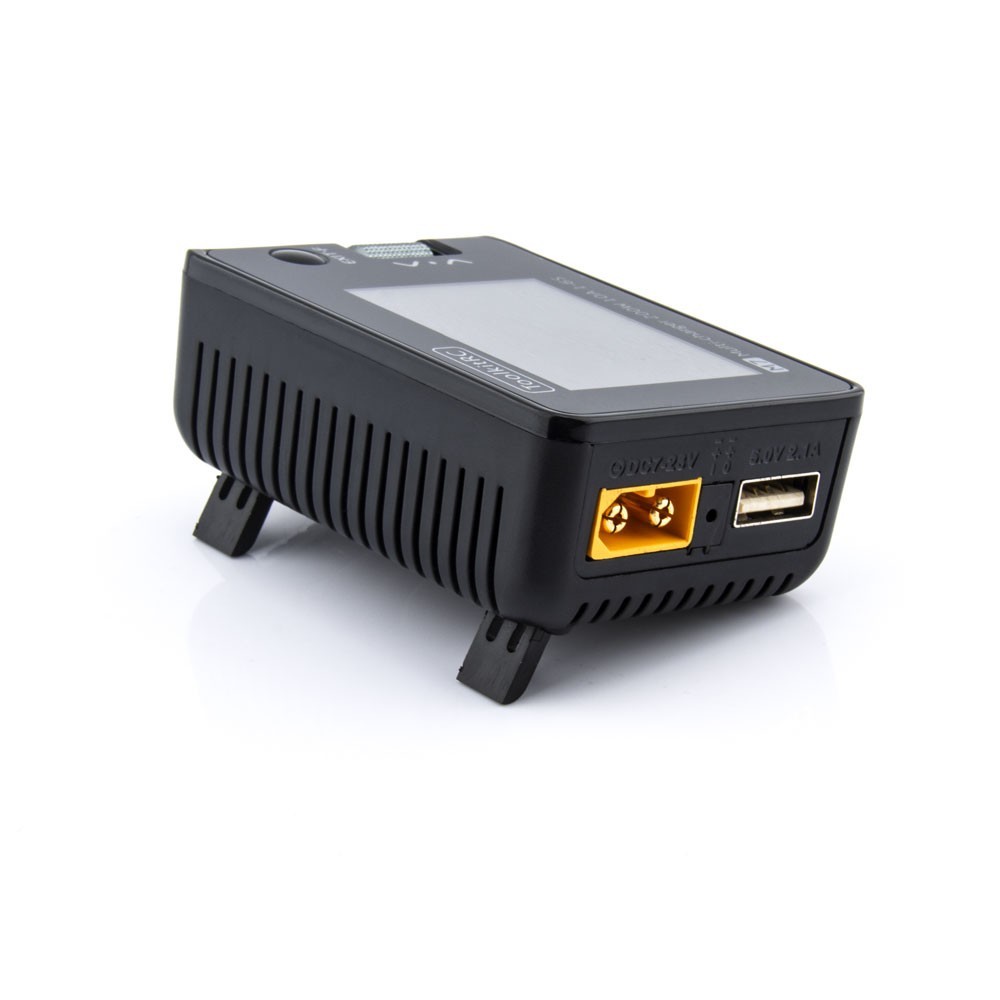

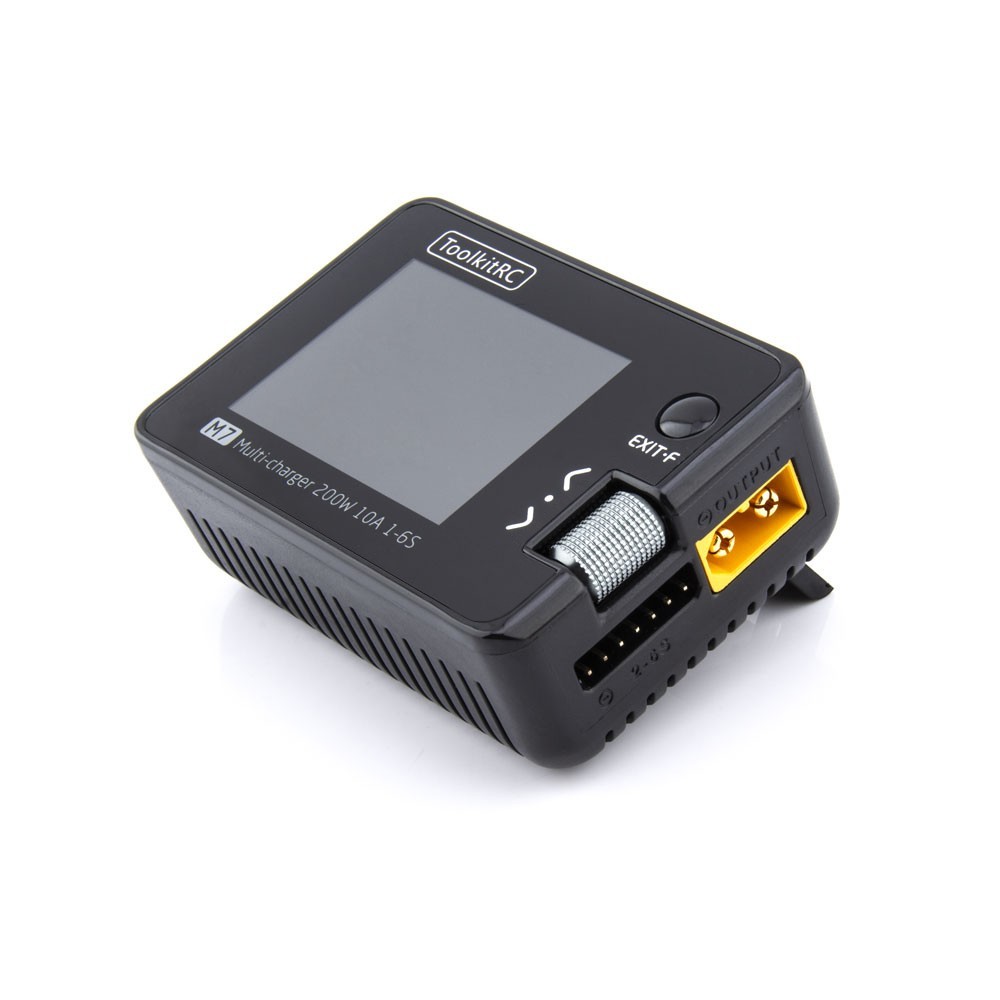

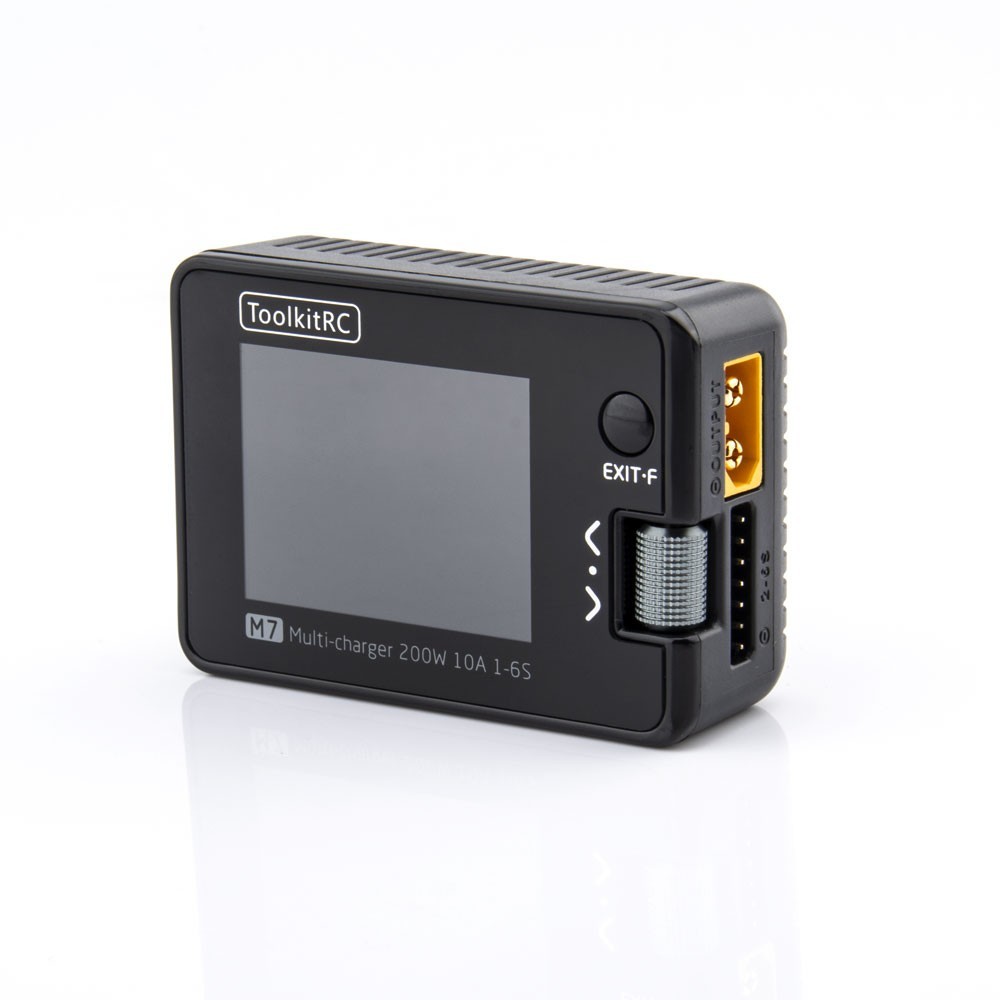

The ToolkitRC M7 is a DC Battery Charger Workstation that features a color screen, 200W of power and is extremely compact. This charger has many functions and is capable of measuring resistance, signal, signal output, ESC testing and so much more. This a great charger for any pit station, flying field or shop.

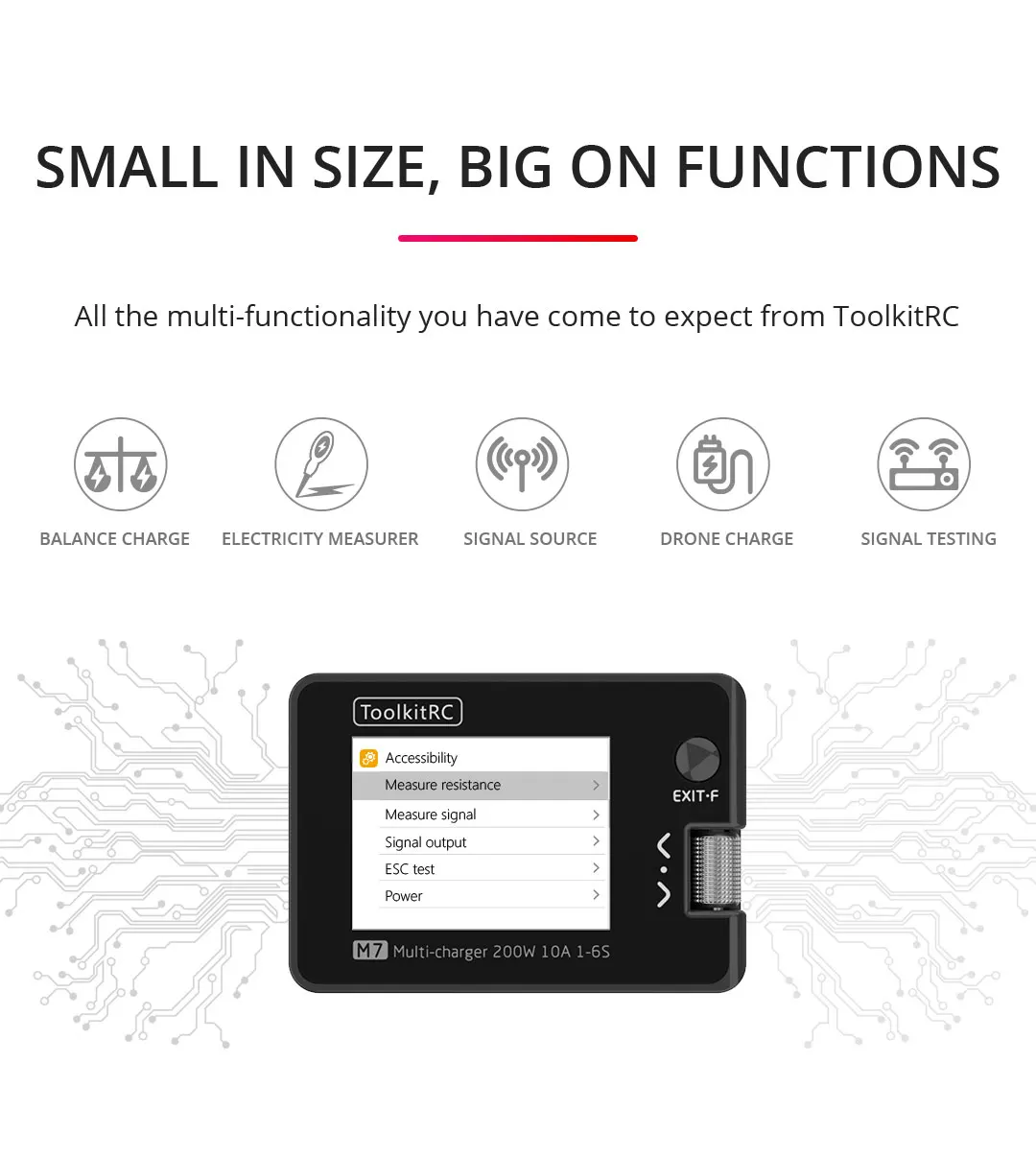

Features:
- Battery Charger
- Cell Checker
- PWM, PPM, S.Bus Input/output & Receiver tester
- Lithium battery cut-off voltage can be set (TVC function)
- Measure battery voltage, internal resistance, balance
- Measure PWM, PPM, S.Bus signal values @ 1ms accuracy
- Output PWM, PPM, S.Bus standard signal @ 1ms accuracy
- Customizable 1-28V constant output voltage, 1-10A constant output current
- Multi-language optional
- USB [email protected] Output (Mobile device charging)
- Udisk firmware upgrade (Slave device)

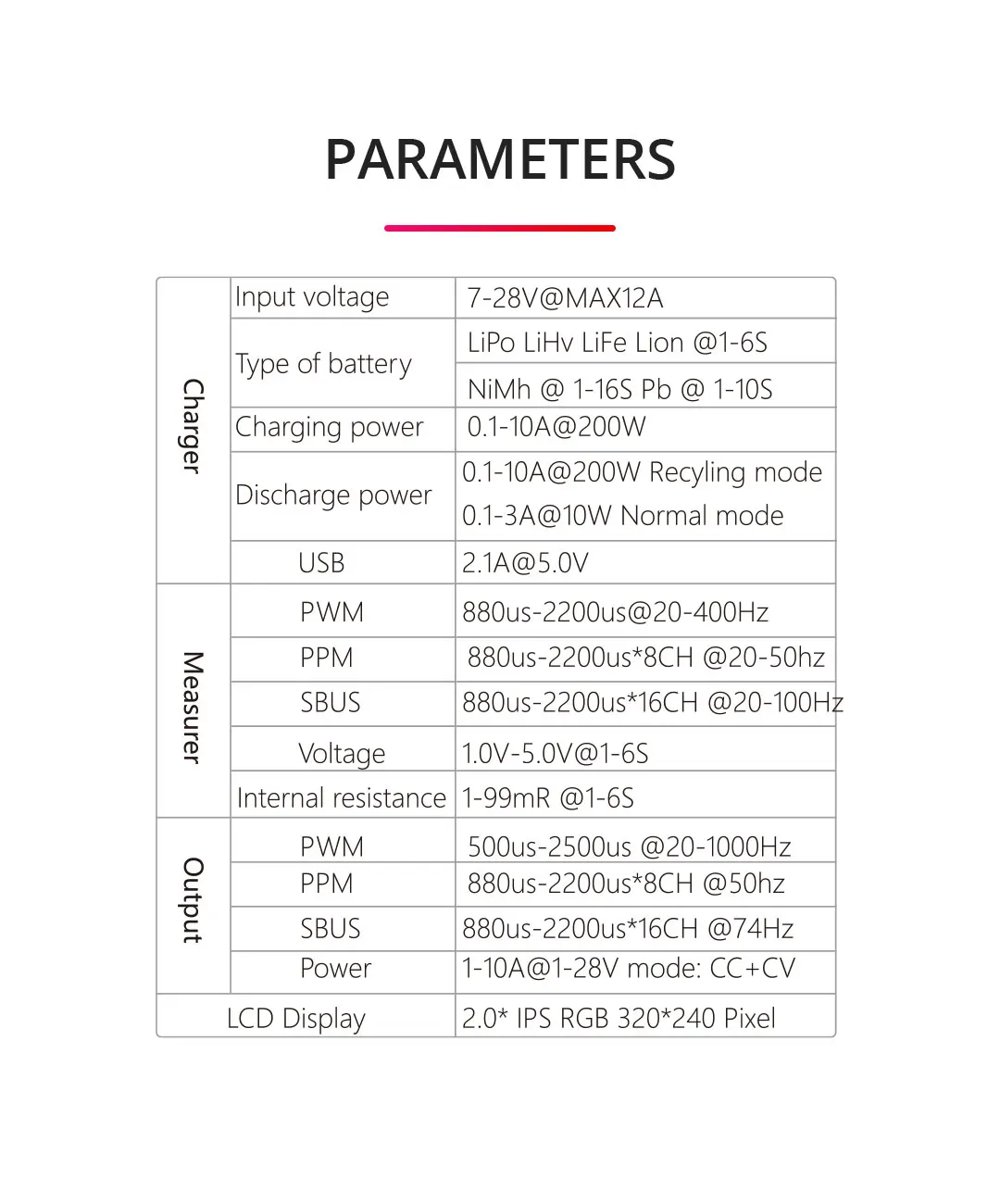

Specifications:
- Charger:
- Input voltage: 7.0-28.0V @Up to 12A
- Type of battery:
- Lipo, LiHV, LiFe, Lion: 1-6 Cell
- NiMh: 1-16 Cell
- Pb: 1-10 Cell
- Balance current: 400mA @2-6S
- Charger power: 200W @Up to 10A
- Discharge power:
- Recycle mode: 200W @Up to 10A
- Normal mode: 10W @Up to 3A
- USB: 2.1A @5.0V or Upgrade
- Measurement:
- PWM: 880-2200us @20-400Hz
- PPM: 880-2200us - 8CH @20-50Hz
- SBUS: 880-2200us - 16CH @20-100Hz
- Voltage: 1.0-5.0V @1-6S
- Internal Resistance: 1-99mR @1-6S
- ESC: 200W @10A PWM Output
- Output:
- PWM: 500-2500us @20-1000Hz
- PPM: 880-2200us - 8CH @20-50Hz
- SBUS: 880-2200us - 16CH @20-100H
- Power Supply: 1.0-28.0V @1.0-10A Mode: CC+CV
- Over Current Cutoff Time: <5ms
- General:
- Size: 73x51x27mm (2.87x2.00x1.06in)
- Weight: 90g (3.17oz)

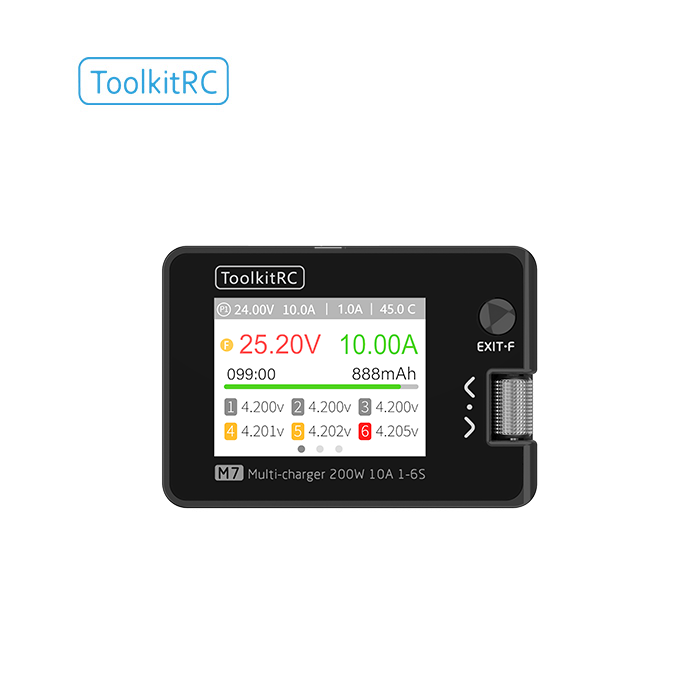

- LCD: IPS 2.0in LCD 320x240 Pixel
