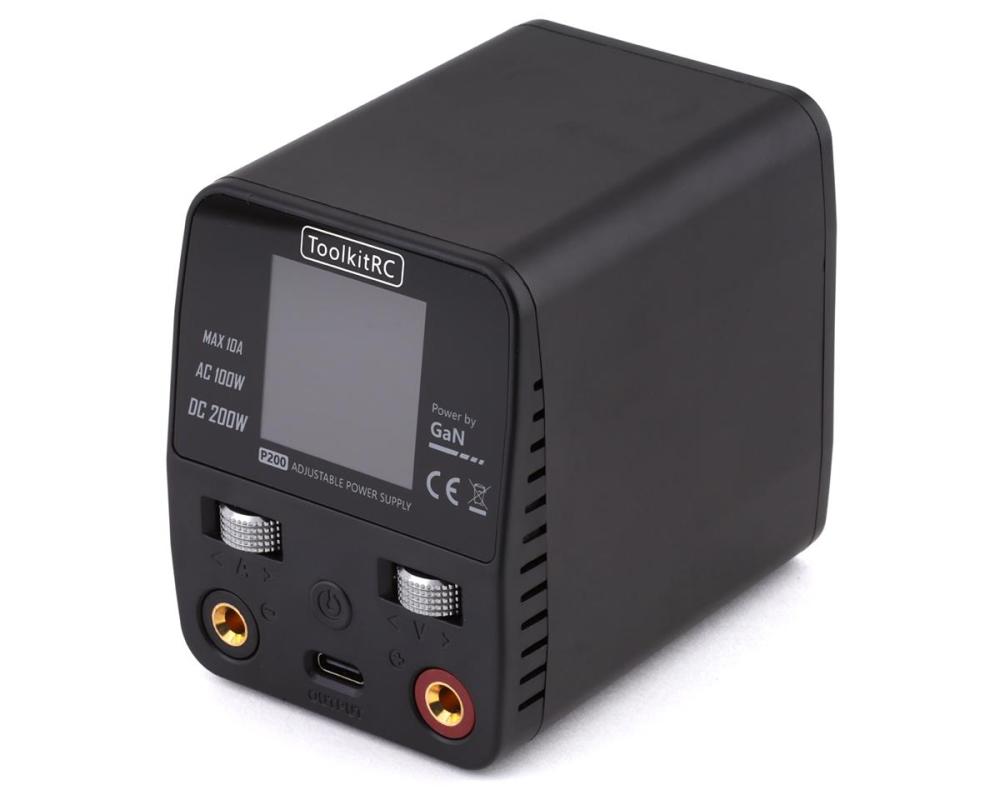

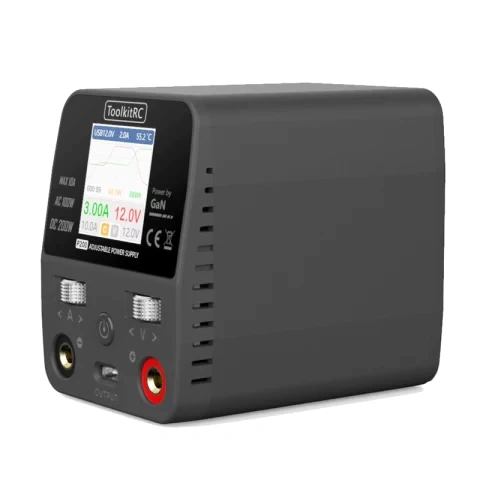

Item: ToolkitRc P200 Mini Desktop Power Supply
Parameters:
Input voltage: AC 100-240V@MAX 100W
DC 7-28V@MAX 10A 200W
Main output: 1.0-10.0A @MAX AC 100W / DC 200W
1.0-30.0V @MAX AC 100W / DC 200W
USB output: 5.0-20.0V @MAX 65W
USB protocol: PD 3.0/PD2.0/PPS/QC4/QC3.0/QC2.0
AFC/FCP/SCP/PE2.0/PE1.1/SFCP/VOOC
Protection time: <1ms (Short circuit, OC ,OV)
Control cycle: 8ms
Product size: 84*63*78 mm
Product weight: 360g
LCD: IPS 1.54" 240*240 resolution
Main port: 4.0mm banana female port
USB port: TYPE-C Fast charge, upgrade
Features:
P200 is a mini desktop adjustable power supply, with AC or DC input, built-in 100W gallium nitride AC power supply, IPS wide-angle display record and curve display voltage and current, etc.
Built-in Gallium Nitride (GaN) compact AC power supply.

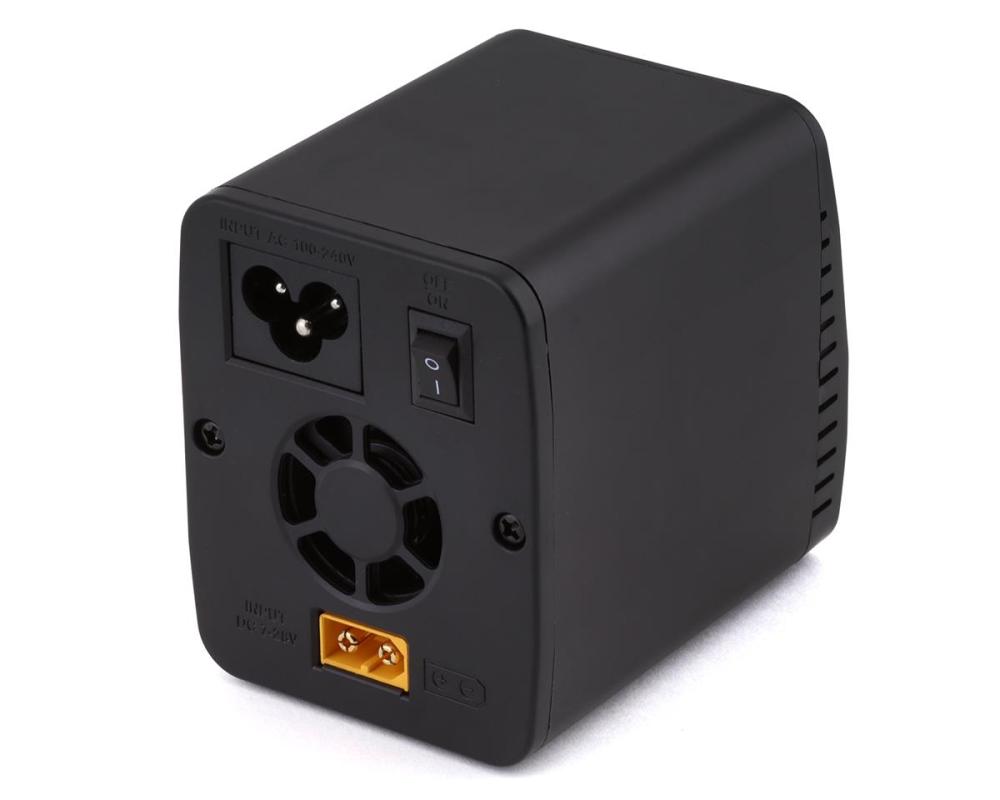

AC/DC two input methods.
Conversion efficiency up to 95%
When AC input, the full output power reaches 100W
At DC input, the full output power reaches 200W
Type-C maximum output 65W
Fast charging full protocol: PD3.0/PD2.0/PPS/QC4/QC3.0/QC2.0/AFC/FCP/SCP/PE2.0/PE1.1/SFCP/VOOC
1.0-30.0V adjustable output voltage.
1.0-10.0A adjustable constant current
Over voltage, over current, over temperature, short circuit, various protections
Metal dial, feel hard
IPS 1.54" high-brightness HD display
The device is simulated as a U disk, and the upgrade file is copied to realize the product firmware upgrade
